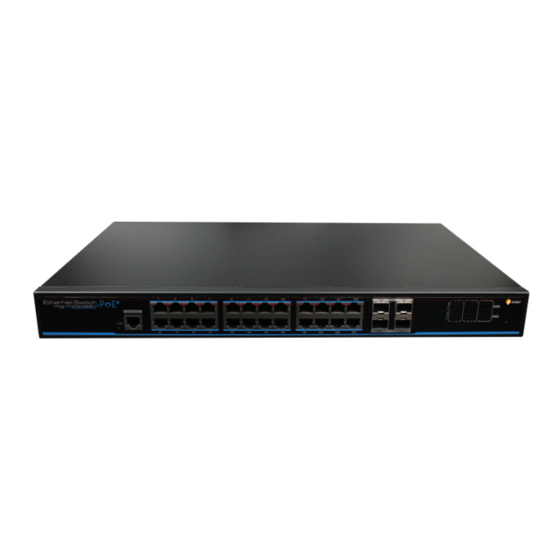

- Page 1 Quick Installation Guide Gigabit Switch, Managed, 250W, 24x PoE, 4x SFP, 1000Mbps, Wall-/Rack Mounting, Desktop IAR-7SE2024MMA...
- Page 2 About Documents This document is Quick Installation Guide. It is intended for engineers or anyone who needs to install the product. Announcement The information in this document is subject to change without notice. The document is only used as operation guide, except for other promises. No warranties of any kind, either express or implied are made in relation to the description, information or suggestion or any other contents of the manual.
-
Page 3: Table Of Contents
Content Packing List .................... 1 Product Introduction ................2 Overview ..................2 Hardware Introduction ..............2 Safety Precaution ................. 4 Insatallation Steps ................ 6 3.2.1 Rack Mount .................. 7 3.2.2 Desktop Installation ..............8 3.2.3 Wall Mount ..................8 3.2.4 AC Power Cable Connection ............9... -
Page 4: Packing List
Packing List Open the box of the product and carefully unpack it. The box should contain the following items. Please check before installation, if any missing, please contact your dealer immediately. Items Quantity Switch 1 pc AC Power Cable 1 pc Mounting Accessory 1 set Quick Installation Guide... -
Page 5: Product Introduction
Product Introduction 2.1 Overview This series product is 16-Port/24-Port Gigabit PoE + 4-Port Gigabit SFP L2 Managed Ethernet Switch (250W). This series switch provides 16/24 Gigabit Ethernet RJ-45 ports and 4 Gigabit SFP uplink ports. The switch meets IEEE 802.3af/at standard. All RJ-45 ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. - Page 6 Rear Panel (16-Port/24-Port PoE Switch) Led Indicators Instructions Indicators Status Descriptions The Main Power Supply is working. Power Supply Indicator The Main Power Supply is off. The port is linking normally. The port is transmitting or receiving Link Port Link Indicators Blink data.
-
Page 7: Safety Precaution
Installations 3.1 Safety Precaution To minimize the technically residual risk, it is imperative to obey the following rules. Read all the instructions before operation. The Caution, Warning and Danger items in the document does not cover all the safety precautions that must be followed. They are only supplementary information. When operating the device, obey the local safety regulations. - Page 8 Inflammable Environment DANGER Do not place the device in the environment that has inflammable and explosive air or fog. Do not perform any operation in this environment. Operating the electrical device in inflammable environment can be fatal. Moisture Proof WARNING Water or moisture in the equipment will damage the circuit of the equipment.
-
Page 9: Insatallation Steps
3.2 Installation Steps This series switch supports 3 installation methods: Rack mount Desktop installation Wall mount Following with the dimensions of the switch and its insatallation accessories. The two types are of the same dimensions. Here take 24-Port PoE Switch as example. Dimensions (mm) -
Page 10: Rack Mount
3.2.1 Rack Mount This series switch supports 19” rack-mounted installtaion. Following with the installation steps. Step 1: Fix the hangers on the side of the switch. Accessories Step 2: Install the switch on the rack with screws in the Accessories package. -
Page 11: Desktop Installation
3.2.2 Desktop Installation This series switch supports desktop installation. Users can put this product on clean, stable, grounded workbench. The installation steps are as below: Carefully put the device upside down, clean the grooves on the chassis backplane with soft cloth to make sure there is no oil or dust in it. ... -
Page 12: Ac Power Cable Connection
3.2.4 AC Power Cable Connection This series switch is equipped with one built-in power supply module. Power supply module specifications: Items Specifications Power Input Input Voltage AC 100~240V 50/60Hz Input Current 4A max Power Output Output Voltage 54V DC Output Current 5.2A max Power Consumption 280.8W (Full load) - Page 13 Specifications Items 16-Port PoE Switch 24-Port PoE Switch Ethernet Ports 16* 10/100/1000Base-T PoE 24*10/100/1000Base-T PoE Downlink Ports RJ-45(Auto-MDI/MDI-X) RJ45 (Auto-MDI/MDI-X) Uplink Ports 4*1000 Base-X SFP Console Port 1*RJ-45 to RS-232 console port(115200, 8, N, 1) PoE Standard IEEE 802.3af/at (PSE) PoE Power Supply End-span Type...
- Page 14 Operating -10~50 Temperature Storage -40~85 Temperature Operating Humidity 5%~95% (Non-condensation) Physical Parameters 1*PWR Indicator 1*PWR Indicator 16*Downlink Port Link 24*Downlink Port Link Indicator Indicator Led Indicators 16*Downlink Port PoE 24*Downlink Port PoE Indicator Indicator 4*Uplink Port Link Indicator 4*Uplink Port Link Indicator Short press to restart Init Button Long press...
