  • Page 2 AVM will not be liable for damages arising directly or indirectly from the use of the manual or related software, nor for incidental or consequential damages, except in case of intent or gross negligence.

  • Page 3: Table Of Contents

    2.1 Installation Requirements ..............7 2.2 What is Installed? ................8 2.3 Physically Installing FRITZ!Card PCI and Connecting to ISDN ....9 2.4 First Installation Steps ..............9 2.5 Further Installation Steps in Windows 95, 98 and NT ......14 2.6 Where to Find What .................
  • Page 4 Contents Symbols and Highlighting in this Manual Symbols The hand indicates especially important instructions that absolutely must be observed in order to avoid malfunctions. FRITZ! points to helpful hints to make your work easier. Highlighting Keyboard entries, dialog pushbuttons or program icons to click are indicated in bo bol l l l l d d d d d type.

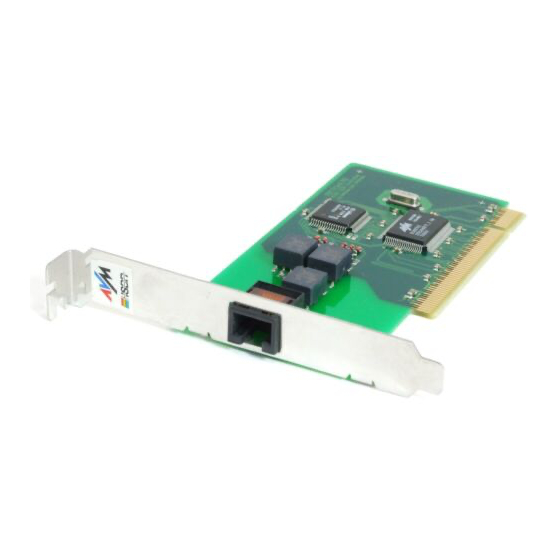

  • Page 5: Welcome To Fritz!Card

    ISDN communications program (see section 4.1, “How to Use ISDN Services”). • The AVM system drivers like the AVM ISDN CAPI Port Driver and the AVM NDIS WAN CAPI Driver. These drivers allow your ISDN-Controllers to be utilized for “Remote Access Service”...

  • Page 6: What Was Delivered

    FRITZ!Card and the installation program for the ISDN commu- nications software FRITZ!. Also included on the FRITZ!Card CD are the AVM ISDN CAPI Port Driver and the AVM NDIS WAN CAPI Driver. The CD also contains comprehensive documen- tation for all AVM products supplied.

  • Page 7: Installing Fritz!Card Pci

    2 Installing FRITZ!Card PCI FRITZ!C NSTALLING FRITZ!Card PCI can be installed in Windows 98, Windows 95 or Windows NT 4.0 (Workstation i386). The installation procedures vary depending on the operating system. 2.1 Installation Requirements To operate FRITZ!Card PCI on your computer, the following requirements must be met: •...

  • Page 8: What Is Installed

    2 Installing FRITZ!Card PCI 2.2 What is Installed? Firs s s s s t t t t t the ISDN-Controller FRITZ!Card PCI is physically installed in your computer and connected to ISDN. Then the most important software components of FRITZ!Card PCI are installed with a joint installation program.

  • Page 9: Physically Installing Fritz!Card Pci And Connecting To Isdn

    Windows 98, 95 and NT differ: the installation of the driver software for the ISDN-Controller FRITZ!Card PCI is specific to the operating system. The installation sequence for the remaining software components, the FRITZ! communications software and the AVM ISDN CAPI Port Driver, is the same for all three operating systems.
  • Page 10 Windows 98 provides a Wizard for the ISDN configuration. This Wizard can configure only a previously installed NDIS WAN CAPI Driver (one of the AVM system drivers). This Wizard can not not be used to install ISDN hardware and software correctly or to configure an ISDN connection.
  • Page 11 ISDN line (DSS1, NI-1 or 5ESS Custom). As a final step of the driver software installation, an information window with the settings of the ISDN-Controller FRITZ!Card PCI is displayed. Upon completion, a message appears reporting that the FRITZ! communications software can be installed.
  • Page 12 The driver information now are copied to a temporary folder on your computer. • Next appears the welcome window of the installation pro- gram for the AVM ISDN-Controller FRITZ!Card PCI. • Specify the folder in which the driver software is to be installed on your computer.
  • Page 13 2 Installing FRITZ!Card PCI As a final step of the driver software installation, an information window with the settings of the ISDN-Controllers FRITZ!Card PCI is displayed. Upon completion, a message appears reporting that the FRITZ! communications software FRITZ! can be installed. Continue from section 2.5.

  • Page 14: Further Installation Steps In Windows 95, 98 And Nt

    2.5 Further Installation Steps in Windows 95, 98 and NT The sequence for installing the other two software components, FRITZ! and AVM ISDN CAPI Port Driver, is identical for all operating systems. Follow the instructions below: • Upon completion of the installation of the driver software for...

  • Page 15: Where To Find What

    Windows is started. An “AVM” program group is created under “Programs” in the Windows Start menu. This group contains four entries: • “AVM Internet Home Page” is a link to the AVM Internet site (required: WWW browser and Internet access). • “FRITZ!Card PCI Readme” contains current information.

  • Page 16: Installing Individual Software Components

    “Modems” in the Control Panel, which can be used in Dial-Up Networking for connections to your Internet provider or in other programs. A link to the Help for the AVM ISDN CAPI Port Driver is created on the Desktop.

  • Page 17: How Fritz!Card Works

    3 How FRITZ!Card Works FRITZ!C ORKS Before starting FRITZ!Card operation, this chapter offers you the opportunity to learn the basics about FRITZ!Card at an ISDN connection and how to work with an ISDN-Controller. If you would like begin immediately your practical experience with ISDN and Internet, skip to Chapter 4.
  • Page 18 3 How FRITZ!Card Works with analog extensions ISDN telephone Computer with FRITZ!Card Analog telephone with Cordless answering machine telephone Typical configuration of an ISDN multiple connection There are also PBXs which provide both analog and digital extensions. ISDN terminal devices can be connected directly to these digital extensions.

  • Page 19: How Does An Isdn-Controller Work

    FRITZ! communications software are also based on CAPI 2.0, as are other a number of programs from other manufacturers. AVM provides the system drivers AVM ISDN CAPI Port Driver and NDIS WAN CAPI Driver for programs which require a modem or a...
  • Page 20 3 How FRITZ!Card Works The following diagram shows how the individual components of FRITZ!Card interact: Applications like Exchange/ Explorer/ Browser/Outlook ISDN NDIS CAPI Port CAPI Driver Driver C A P I COMMON-ISDN-API 2.0 B-channel protocols (digital): CAPI CAPI X.75, HDLC, transparent, CAPI Soft SoftFax G3 SoftModem...
  • Page 21 Additional drivers must be linked to the operating system before this protocol can be used with the ISDN- Controller. AVM provides the AVM ISDN CAPI Port Driver and the NDIS WAN CAPI Driver for this purpose. Thanks to these drivers, TCP/IP can be used through CAPI.

  • Page 22: Isdn And Internet With Fritz!Card

    4 ISDN and Internet with FRITZ!Card 4 ISDN FRITZ!C NTERNET WITH FRITZ!Card opens up the entire world of communication for the user: data transfer, fax transmission, surfing the Internet and much more. FRITZ!Card grants you the freedom of connectivity: not only can you connect to remote parties with an ISDN connec- tion, but communicate over analog connections as well.

  • Page 23: How To Use Isdn Services

    Once the FRITZ!Card installation is complete, the CAPI 2.0 appli- cation is ready for operation in your system. This is the basis for the modules of the AVM FRITZ! communications package located in the “FRITZ!” folder under “Start /Programs”. FRITZ! makes accessible such ISDN services as data transfer, faxing and tele- phony.
  • Page 24 (“Start / Settings / Control Panel / Modems”. Using these modems you can use such terminal programs as Hyper- terminal and the “AVM ISDN Mailbox (X.75)” to connect to ISDN BBSs. The “AVM ISDN Analog Modem (V.32bis)” modem can be used for connections to analog remote par- ties.
  • Page 25 TAPI 2.1 can be implemented with the ISDN-Controller FRITZ!Card. The special advantage of the AVM system drivers is that the entire range of CAPI functions continues to be supported. This means that not only special ISDN applications like FRITZ!, but also the system drivers can work simultaneously in send and receive modes on both ISDN B channels.

  • Page 26: How To Connect To The Internet

    “Extra Settings” field. Enter here ATS49=[MSN] for the outgoing MSN. The command ATS50=[MSN] stipulates the MSN for incoming calls. MSN configuration for the CAPI Port modem “AVM ISDN Internet” For an overview of additional AT commands, see the file CAPIPTATS-e.HLP.
  • Page 27 Internet provider. • Windows Dial-Up Networking must be installed. • An AVM system driver, the CAPI Port Driver or the NDIS WAN CAPI Driver, must be installed. The AVM System Drivers...
  • Page 28 Ask your provider whether the PPP over ISDN protocol is supported. • With the AVM ISDN CAPI Port Driver, it is also possible to take advantage of “special solutions” available through exten- ded modem settings. Consult your Internet provider or the system administrator of the remote partner.
  • Page 29 4 ISDN and Internet with FRITZ!Card Establish the connection by double-clicking on the newly created icon in Dial-Up Networking. Enter your access pa- rameters for the Internet provider in the registration win- dow. Enter access parameters for dialing After successful connection, start your browser, e.g. Netscape Navigator or Internet Explorer.

  • Page 30: Support

    The Readme contains current information which was not yet available when this manual was printed. • Help files for the AVM system drivers: When an AVM system driver like the CAPI Port Driver is installed, a link to the corresponding Help file is created on the Desktop.

  • Page 31: Tips For Installation In Windows 95/98

    5 Support All programs and drivers which can be downloaded from the AVM Internet site are also available from the A A A A A V V V V V M Dat M Dat M Dat M Data C M Dat...

  • Page 32: Assistance From Fritz!Card Support

    FRITZ!Card in a different PCI slot. • The system was unable to assign an interrupt (IRQ) to the ISDN-Controller FRITZ!Card PCI. This may be due to other PCI components or incorrect settings in the BIOS of your computer.
  • Page 33 Support requests may be sent from the AVM Internet site. Please use the support request form available at “www.avm.de/english” (“Service” category). Fill out the form and send it to AVM Support by clicking S S S S S ubmit ubmit ubmit ubmit.
