SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com
Mounting Instructions

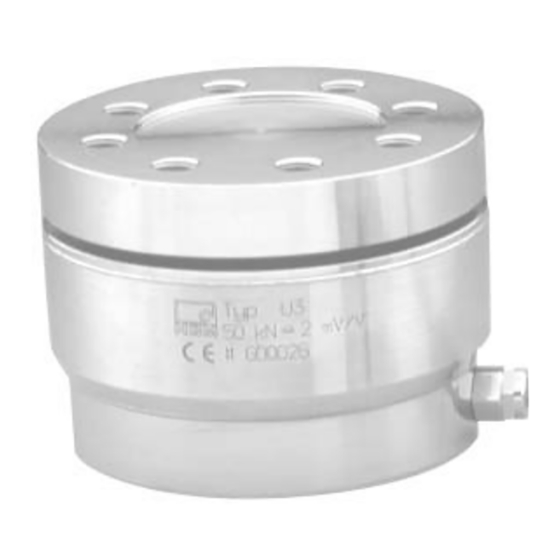

Force transducer
U3
B 20.U3.20 en
SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HBM U3

Summary of Contents for HBM U3

  • Page 1 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com Mounting Instructions Force transducer B 20.U3.20 en SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 2 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 3: Table Of Contents

    ........HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 4: Safety Instructions

    General dangers due to non–observance of the safety instructions The U3 force transducer corresponds to the state of the art and is fail–safe. The transducers can give rise to residual dangers if they are inappropriately installed and operated by untrained personnel.
  • Page 5 Meaning: CE mark The CE mark signals a guarantee by the manufacturer that his product meets the requirements of the relevant EC directives (see Declaration of conformity at the end of this Mounting Instructions). HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 6 Protect the transducer from damp and weather influences such as rain, snow, etc. Maintenance The U3 force transducer is maintenance free. Accident prevention Although the specified nominal force in the destructive range is several times the full scale value, the relevant accident prevention regulations from the trade associations must be taken into consideration.

  • Page 7: Scope Of Supply

    100kN Order no. 1–Z4/100kN/ZGUW Application information Force transducers of the U3 type series are suitable for measuring tensile and compressive forces. They measure static and dynamic forces extremely accurately and therefore require careful handling. You must take particular care when transporting and installing the devices. If you knock or drop the transducers, this could permanently damage them.

  • Page 8: Structure And Mode Of Operation

    This base is extremely thin and must not be loaded centrally (see Page 11). It should be protected against mechanical damage. Pressure compensation hole Fig. 3.1 Position of housing base HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 9: Conditions On Site

    (force shunt). NOTE: Foreign bodies must not be allowed to clog the gap beneath the flange surface. Pressure compensation hole HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 10: Mechanical Installation

    50mm stranded copper wire (highly flexible signal ground cable EEK from the HBM line). The cable is attached by screws both above and below the transducer. This prevents welding current flowing over the transducer and welding the force introduction point.
  • Page 11 Nominal force 20kN, 50kN and 100kN: Force must only ∅ 70 " 0.1 be introduced here Do not load centrally here. Centre the U3 over diameter 55 Fig. 5.2 Base of the U3 HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 12: Installation For Tensile Loading/Compressive Loading

    12.9 DIN912 galvanized HBM supplies knuckle eyes as mounting accessories for transducers of the U3 type series. Knuckle eyes are suitable for use during quasi–static loading (10Hz alternating loads). In the case of dynamic loading at a higher frequency, you should use flexible tension bars. Knuckle eyes prevent the introduction of torsional moments and when 2 knuckle eyes are used, stop bending moments and transverse and angular loading being introduced in the transducers.

  • Page 13: Installation With Adapter And Knuckle Eye

    1000 M10x25 Attaching the knuckle eye: • Screw the correct adapter (dependent on nominal force!) to the U3 (please note screw length, screw quality A2–70, at 100kN. 12.9 DIN912, galvanized) • Turn the lock nut back as far as the eye •...

  • Page 14: Installation With Two Knuckle Eyes

    M10x25 M10x30 Attaching the knuckle eye: • Screw the correct adapter (dependent on nominal force!) to the U3 (please note screw length) • Turn the lock nut back as far as the eye • Screw the knuckle eye into the adapter as far as the stop ATTENTION Do not apply force to the transducer flange.

  • Page 15: Electrical Connection

    EMC shielding is to be provided in the wiring loom, the shielding again being laid over the full area (see also HBM Greenline Information, document G36.35.0). 6.1 Instructions for cabling • Always use shielded, low–capacity measurement cable, available from HBM.
  • Page 16 Measurement signal (–) U bl (blue) Excitation voltage (+) U gn (green) Sensor circuit (+) gy (grey) Sensor circuit (–) ye (yellow) Cable shielding, connected to housing Fig. 6.2: Pin assignment for the U3 HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 17: Specifications (Vdi/Vde2638)

    Rel. permissible vibrational stress Weight app. 0.6 app. 2.5 Degree of protection to DIN EN60529 IP65 Cable length, six–wire connection by reference to a force introduction point on the force–introduction surface HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 18: Dimensions

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com Dimensions 4 x 90 Cable length 3m U3: 0.5 – 20kN ∅K ∅A ∅C Mini screwed joint M8x1; a.f.11 ∅C ∅H ∅K ∅B U3:50kN/100kN Cable length 3m 22.5 ∅K 8 x 45 * only at 20, 50kN and 100kN ∅A...
  • Page 19 22 4x5.5 4.5 19 25.1 0.9 19 0.15 M20x1.5 22 4x11 4.5 15 40.1 0.9 30 M24x2 8x11 20 45.1 0.9 36 1.45 M30x2 8x11 20 45.1 0.9 41 1.45 including screws HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...

  • Page 20: Declaration Of Conformity

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com Declaration of conformity HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 21 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 22 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 23 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com HBM 11.12.2000 SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
  • Page 24 Modifications reserved. OTTINGER ALDWIN ESSTECHNIK All details describe our products in general HBM Mess- und Systemtechnik GmbH form only. Postfach 10 01 51, D-64201 Darmstadt They are not to be understood as express Im Tiefen See 45, D-64293 Darmstadt warranty and do not constitute any liability Tel.: +49/ 61 51/ 8 03-0;...
