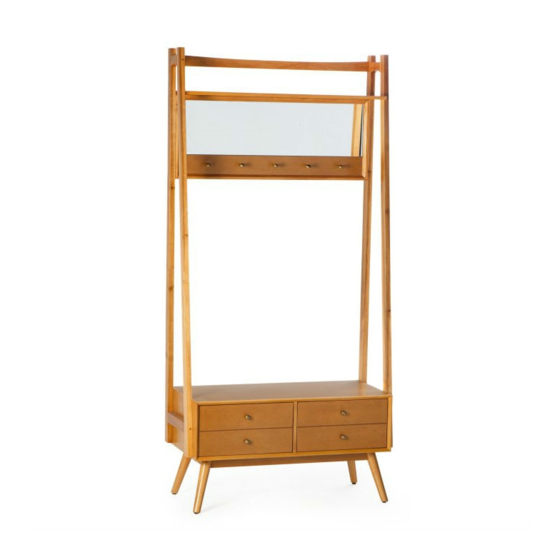

- Page 1 ITEM NAME: Mid Century Modern Finn Hall Tree SKU: REDU134-1; REDU134-2 For assistance with assembly, please contact customer service 1-888-880-4884 1/10...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT • Please read through these instructions before beginning assembly. • Two adults are recommended for assembly. • Clear out the space for assembly and lay out all parts based on Parts List, extra room will allow you to easily determine if all the pieces are present. - Page 3 Ø15mm Cam Pin (H) Qty:2 Cam Lock (I) Qty:2 Wooden Dowel (G) Qty:12 Bracket (J) Qty:5 Screw (K) Qty:2 Screw (L) Qty:2 Plastic Rope (M) Qty:2 Wall Plug (N) Qty:2 Wall Bracket (O) Qty:4 Phillips Screwdriver (not provided) STEP-BY-STEP ASSEMBLY: STEP 1: Take out drawer to start Assembly.
- Page 4 STEP-BY-STEP ASSEMBLY: STEP 2: Attach Legs (2) to Cabinet (1) using Bolts (A) with Spring Washers (D) and Flat Washers (E), then tighten with Allen Key (F). STEP 3: Insert Cam Pins (H) into pre-drilled holes of Left Side (3) and Right Side (4). DETAIL STEP PLEASE SEE THE BELOW PICTURE.
- Page 5 STEP-BY-STEP ASSEMBLY: STEP 4: Attach Left Side (3) to Cabinet (1) using Bolts (B) with Spring Washers (D) and Flat Washers (E), then tighten with Allen Key (F). STEP 5: Fix Bracket (J) to Back Frame (5) using Bolts (C) with Spring Washers (D) and Flat Washers (E), then tighten with Allen Key (F).
- Page 6 STEP-BY-STEP ASSEMBLY: STEP 6: Attach Back Frame (5) to Shelf (6) using Bolts (B) with Spring Washers (D) and Flat Washers (E), then tighten with Allen Key (F). STEP 7: • Insert Wooden Dowels (G) to Left Frame (3). • Attach Back Frame (5) and Shelf (6) to Left Frame (3) using Bolts (B) with Spring Washers (D) and Flat Washers (E), then tighten with Allen Key (F).
- Page 7 STEP-BY-STEP ASSEMBLY: STEP 8: • Insert Wooden Dowels (G) to Back Frame (5) , Shelf (6) and Top Bar (7). • Attach Right Frame (4) the assembled shelf and bar using Bolts (B) with Spring Washers (D) and Flat Washers (E) and Cam Locks (I), then tighten with Allen Key (F) and Phillips Screwdriver (not provided).
- Page 8 STEP-BY-STEP ASSEMBLY: STEP 10: Insert the Drawer into the cabinet. The zinc iron track slips to the front 8/10...
- Page 9 STEP-BY-STEP ASSEMBLY: STEP 11: ● Fix two Wall Brackets (O) to the top rail using Screws (L). ● Use electric drill to drill two small holes on the desired location of wall, insert Wall Plugs (N) into the holes by rubber mallet, use Screws (K) to attach the Wall Brackets (O) onto wall. ●...
- Page 10 MAINTENANCE AND CARE TIPS FOR WOOD FURNITURE: -Always dust, wipe and clean in the direction of the wood grains. -Check and re-tighten screws/blots after the product has been used for a period of time. -Heat creates chemical changes in the furniture finish. As a result, whitish spots may appear. -It is best to keep your furniture in a climate controlled environment.
