ITEM Number :
Product Name:

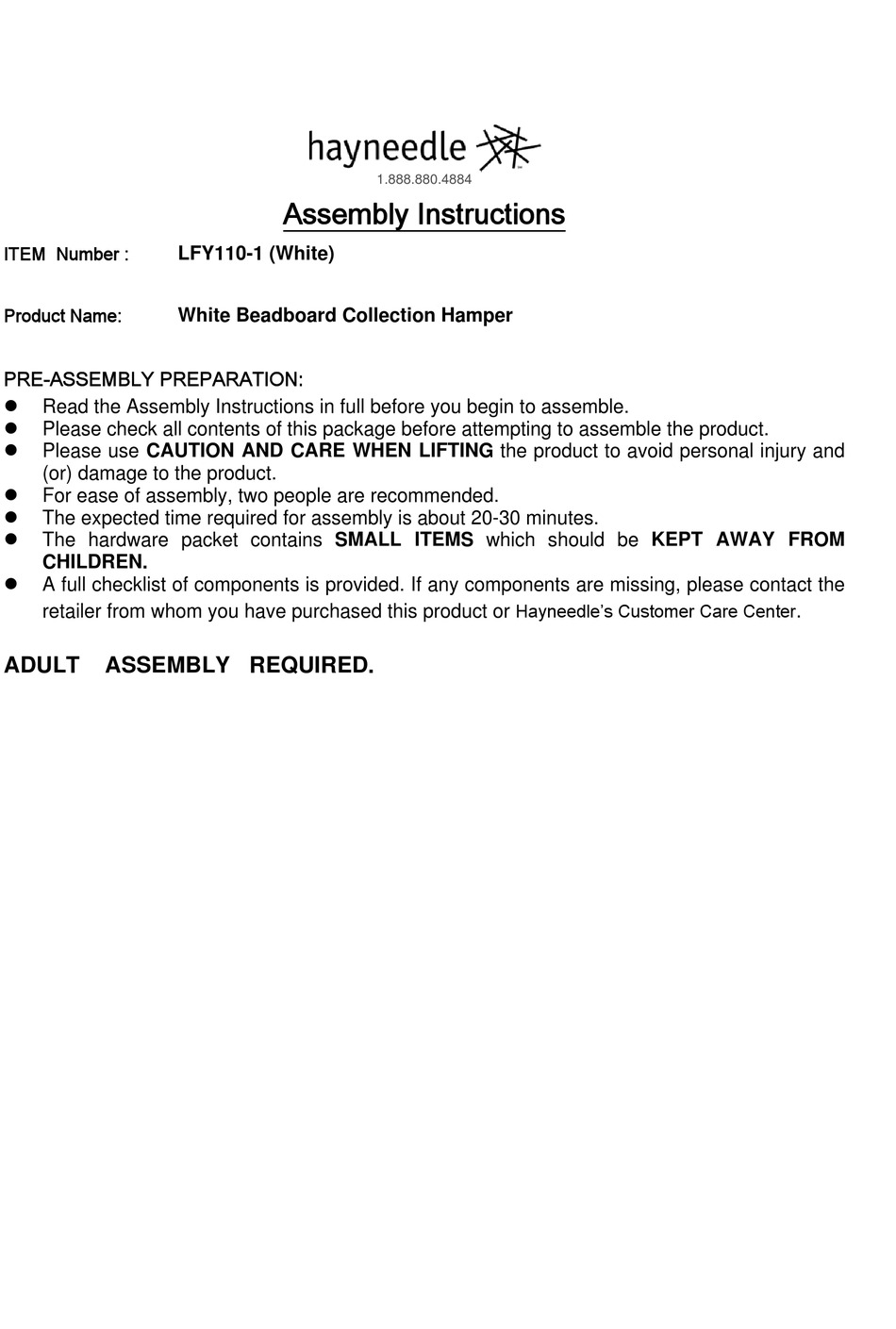

PRE-ASSEMBLY PREPARATION:
Read the Assembly Instructions in full before you begin to assemble.
Please check all contents of this package before attempting to assemble the product.
Please use CAUTION AND CARE WHEN LIFTING the product to avoid personal injury and
(or) damage to the product.
For ease of assembly, two people are recommended.
The expected time required for assembly is about 20-30 minutes.
The hardware packet contains SMALL ITEMS which should be KEPT AWAY FROM
CHILDREN.
A full checklist of components is provided. If any components are missing, please contact the
retailer from whom you have purchased this product or
ADULT
ASSEMBLY REQUIRED.
Assembly Instructions
LFY110-1 (White)
White Beadboard Collection Hamper
1.888.880.4884
Hayneedle's Customer Care Center
.
Advertisement
Related Manuals for hayneedle LFY110-1
Summary of Contents for hayneedle LFY110-1
- Page 1 The hardware packet contains SMALL ITEMS which should be KEPT AWAY FROM CHILDREN. A full checklist of components is provided. If any components are missing, please contact the Hayneedle’s Customer Care Center retailer from whom you have purchased this product or ADULT ASSEMBLY REQUIRED.
- Page 2 Panel and Fittings Identification:...
- Page 3 Step By Step Assembly Instructions Step 1: Pre-assemble 4 Dowels (5) to Right Side Panel (D) and Inner Side Panel (E) respectively. Position 2 Fixed Shelves (F) between Right Side Panel (D) and Inner Side Panel (E), fasten with 8 Bolts (1) by an Allen Wrench (6).
- Page 4 Step 2: Pre-assemble Bottom Panel (B) with 6 Dowels (5) and 2 Pins (3). Pre-assemble Fixed Shelf (N) with 4 Dowels (5) as shown. Affix Bottom Panel (B) and Fixed Shelf (N) to Right Side Panel (D), Inner Side Panel (E) and Left Side Panel (C) with 8 Bolts (1) and 2 Cams (8) by Allen Wrench (6).
- Page 5 Step 3: Pre-assemble Top Panel (A) with 6 Pins (3) and 6 Dowels (5). Set up right the assemble unit. Attach Top Panel (A) to the top of Left Side Panel (C), Right Side Panel (D) and Inner side Panel (E), lock with 6 Cams (8).
- Page 6 Step 4: Attach Pivot Front (G) to Bottom Panel (B) through hinges with 4 Screws (2). Pre-assemble Pivot Front (G) and Storage Back (J) with 4 Pins (3) and 4 Dowels (5) respectively. Position Storage Bottom (K) and Storage Sides (I, H) between Pivot Front (G) and Storage Back (J) as shown, lock with 8 Cams (4).
- Page 7 Step 5: Attach Chain (9) to Left Side Panel (C) and Storage Side (H) with 2 Screws (7) by a screwdriver.
- Page 8 Step 6: Pre –assemble Drawer Front (O) with 4 Pins (3) and 4 Dowels (5). Also, attach Drawer Handle (10) to Drawer Front (O) with 1 Bolt (11). Pre-assemble Drawer Sides (P, Q) with 2 Dowels (5) and 2 Pins (3) respectively.
- Page 9 Step 7: Carefully put the 2 assembled drawers evenly in until the drawer is completely closed.
- Page 10 Step 8: Affix Back Panels (L, M) to the assembled unit with 25 Screws (7).
- Page 11 Step 9: Your New Hamper is now ready to use! Thank you for your Purchase.
