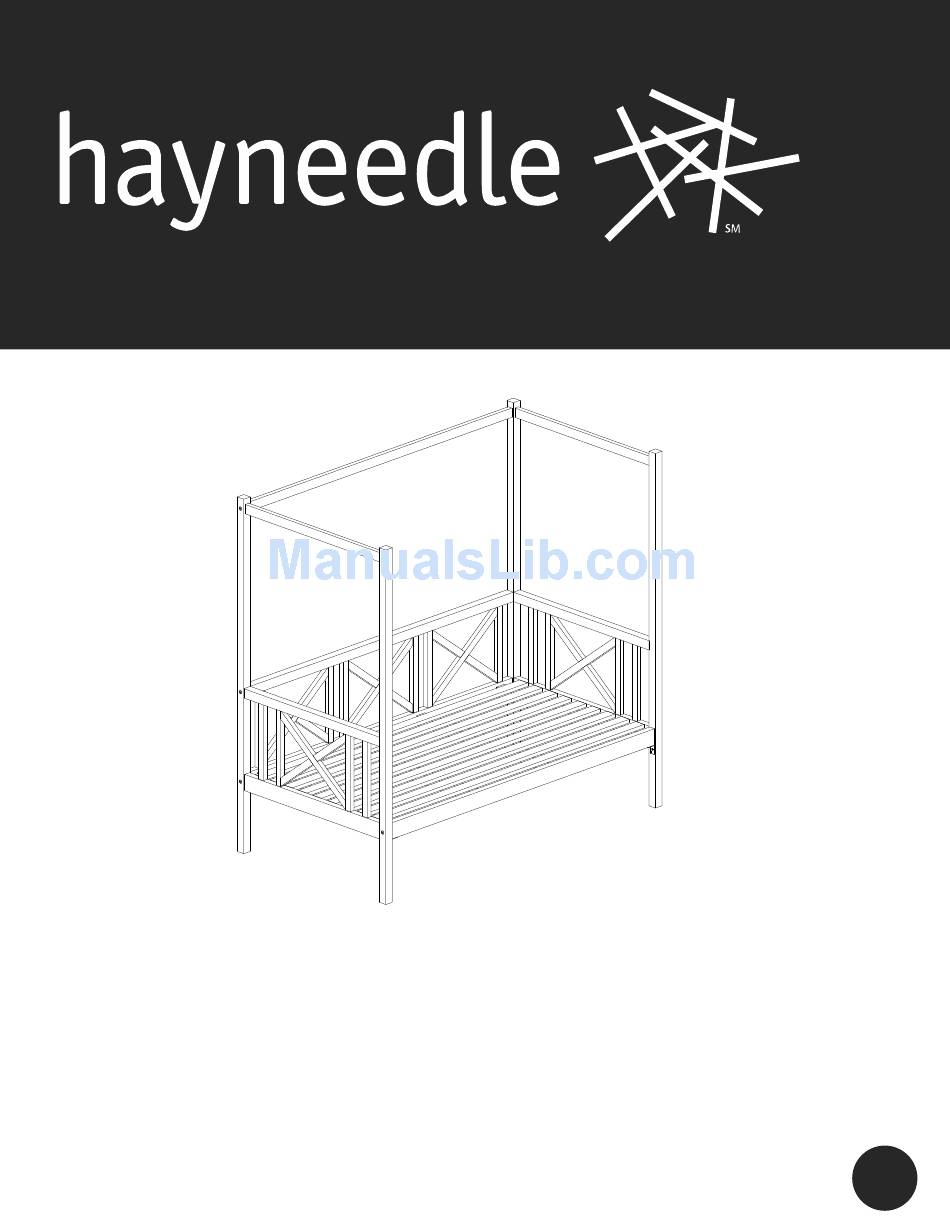

- Page 1 ITEM NAME: BELHAM LIVING BRIGHTON OUTDOOR DAYBED SKU: TDJ166 For assistance with assembly, please contact Hayneedle Customer Care Center 1-888-880-4884...
- Page 2 PRE-ASSEMBLY PREPARATION: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT • Please read through the instructions before beginning assembly. • Two adults are recommended for assembly. • Clear out the space for assembly and lay out all parts based on Parts List, extra room will allow you to easily determine if all the pieces are present.
- Page 3 STEP-BY-STEP ASSEMBLY STEP 1: Use the Screw (A) to attach the back (1) to the Seat (2). Tighten all Screws using Allen Key (E). Screw M7X70 mm Allen key M4 STEP 2: Use Screw (B) to attach the Left Side (4) to the Seat (2), the Back (1) and the Upper Bar (3). Screw M7X90 mm Allen key M4 STEP 3:...
- Page 4 STEP 4: Use Screw (C) and Screwdriver to attach the L-Bracket (D) to the Seat (2) and the Right, Left Side (4 & 5). Screw M4X20 mm L-Bracket STEP 5: Put the Seat Cushion (6), Back Pillow (8) and Bolster Pillow (7) on the Daybed for use.
- Page 5 MAINTENANCE AND CARE TIPS FOR OUTDOOR WOOD FURNITURE The best way to preserve and extend the life of your outdoor wood furniture is to cover it with a waterproof cover when it's not in use, store it in a cool, dry place like a garage or shed during the winter months, and keep the wood hydrated with products like linseed oil a couple times per year.
