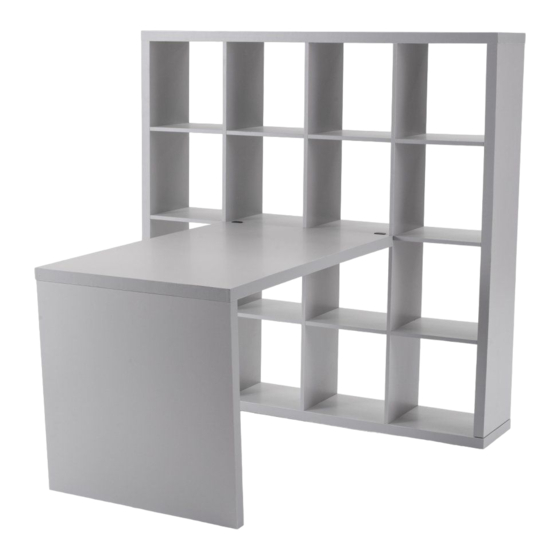

- Page 1 ITEM NAME:[ 16-CUBE SHELF WITH DESK ] SKU:[ STIP008-1/STIP008-2/STIP008-3/STIP009-1/STIP009-2/STIP009-3 ] For assistance with assembly,piease contact Hayneedle Customer Care Center 1-888-880-4884...
- Page 2 THIS PACKAGE MAY CONTAIN SMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN .Please check that all parts and hardware are included before beginning assembly. .Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware. .Read through the preparation and assembly instructions in full before beginning assembly.
- Page 3 16PCS 2PCS 1PCS...
- Page 4 STEP 1:lnsert Cam Lock into the cam lock hold of Panell.Cam lock arrow should be pointing towards the cam lock dowel insertion hole. PANEL I STEP 2:lnsert the cam lock dowel into Panel II. STEP 3:Connect Panel l and Panel II by inserting the cam lock dowel through the hole to which the CAM LOCK HOLE cam lock arrow is pointing.
- Page 5 Step 2: Step 3:...
- Page 6 Step 4: Step 5:...
- Page 7 Step 6: Step 7:...
- Page 8 Anti-tip Restraint is REQUIRED in order to complete construction of this product.When properly installed.this hardware can provide protection against the unexpected tipping of furniture. ANTI-TIP RESTRAINT PARTS LIST: Parts image Parts descriptions 2PCS Wall Brackets 2PCS Long screw 2PCS Plastic screw anchor 8PCS Short screws STEP 1 : Assemble hardware (A) to the side panel by short screws (D).
