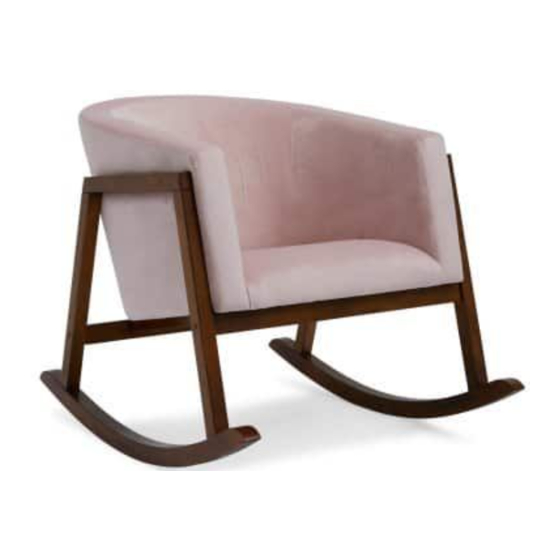

- Page 1 Belham Living Rowan Tub Rocking Chair ITEM NAME: SKU: REDU071-1 For assistance with assembly, please contact customer Care Center 1-888-880-4884...
- Page 2 PRE-ASSEMBLY PREPARATION: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT PRE-ASSEMBLY PREPARATION: • Please read through this instruction before beginning assembly. • Two adults for assembly is recommended. • Clear out the space for assembly and lay out all parts base on Parts List. Extra room will allow you to easily determine if all the pieces are present.
- Page 3 HARDWARE LIST : Scaled to Actual Size 38mm 16mm 12mm bolt (A) Qty:10 Flat Washer (B) Qty:4 Flat Washer (C) Qty:6 14mm 11mm Spring Washer (D) Qty:10 Allen Key (E) Qty:1 Wood plug (F) Qty:6 STEP-BY-STEP ASSEMBLY: Connect the Seat frame (4),the right and left Side frame (2 & 3) using a Bolt (A),Spring STEP 1: washer (D) and Flat washer (C) with the Allen E),Clockwise.
- Page 4 bolt STEP 2: Attach the seat cushion (1) in the right and left side frame (2 & 3). Using a (A), allen key (E). Then cover exposed holes with spring washer (D), flat washer (C), wood plugs (F). Attach using a bolt (A), spring STEP 3: Seat cushion (1) the seat frame (4)
