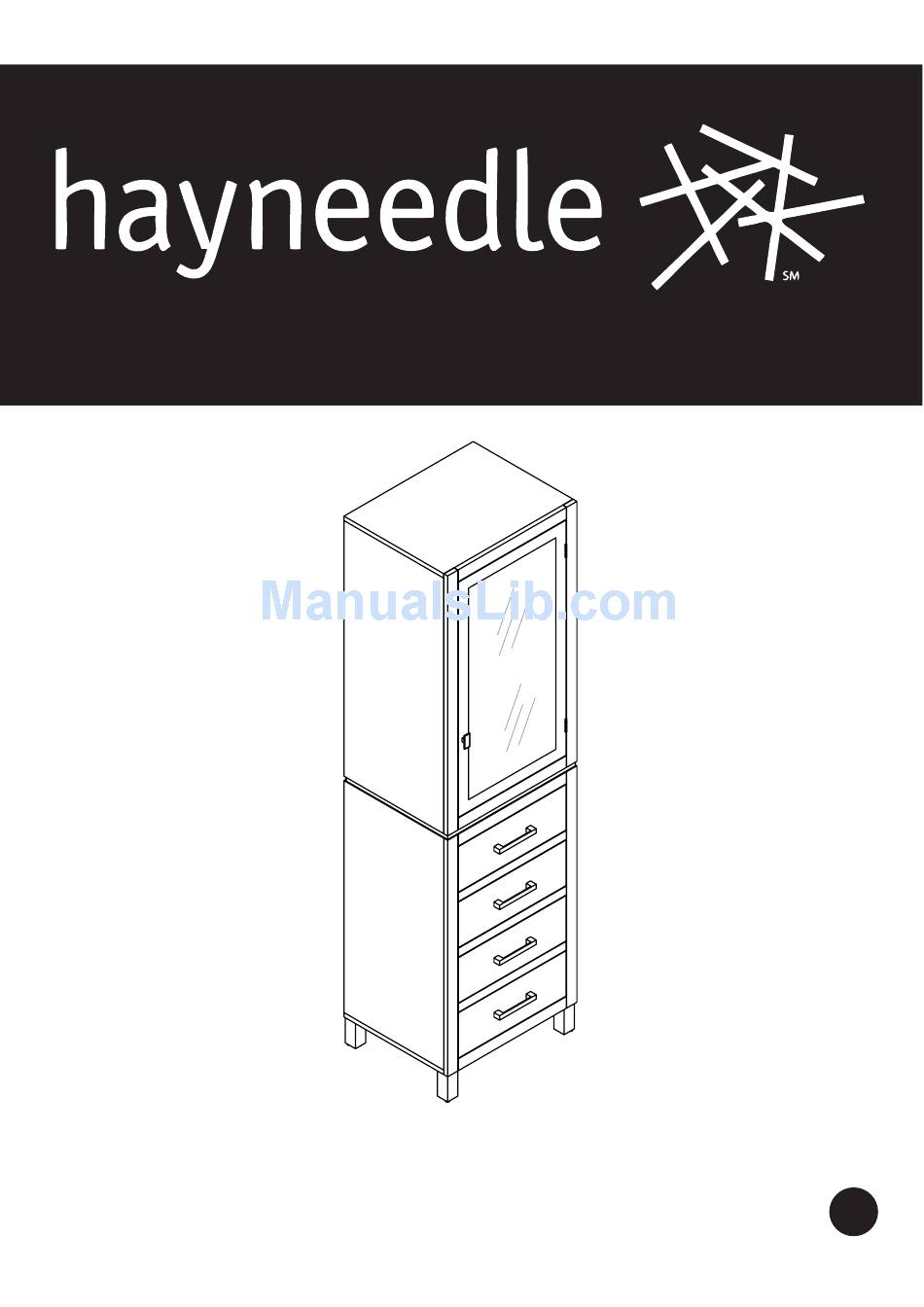

- Page 1 ITEM NAME: Belham Living Linen Tower SKU: REDU047-1; REDU047-2 For assistance with assembly, please contact customer service 1-888-880-4884 1/14...
- Page 2 PRE-ASSEMBLY PREPARATION: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF FINGER ENTRAPMENT • Please read through these instructions before beginning assembly. • Two adults are recommended for assembly. • Clear out the space for assembly and lay out all parts based on Parts List, extra room will allow you to easily determine if all the pieces are present.
- Page 3 PANEL AND FITTINGS IDENTIFICATION: Drawer Back (16) Qty:2 Drawer Left (17) Qty:2 Drawer Right (18) Qty:2 Drawer Front (19) Qty:1 Drawer Back (20) Qty:1 Drawer Left (21) Qty:1 Drawer Right (22) Qty:1 HARDWARE LIST: Magnet (A) Qty:2 Bracket (B) Qty:8 Handle (C) Qty:1 Handle (D)
- Page 4 HARDWARE LIST: 3x12mm 4X40mm 3X15mm Screw (M) Qty:4 Screw (N) Qty:23 Screw (O) Qty:2 Wall Plug (P) Qty:2 Plastic Rope (Q) Qty:2 Bracket (R) Qty:4 3X15mm Phillips Screwdriver Screw (S) Qty:2 (not provided) STEP-BY-STEP ASSEMBLY: STEP 1: Fix Magnets (A) to the pre-fixed block of Door Frame (04) using Screws (M) and tighten with an across headed screwdriver (not supplied).
- Page 5 STEP-BY-STEP ASSEMBLY: STEP 2: Fix Cam Pins (H) and Wooden Dowels (I) to Top Panel (01), then attach Top Panel (01) to Sides (02 and 03) using Cam Locks (F) and tighten with an across headed screwdriver (not supplied). See details as below. DETAIL STEP PLEASE SEE THE BELOW PICTURE.
- Page 6 STEP-BY-STEP ASSEMBLY: STEP 4: Attach Back Panel (05) to the assembled unit using Screws (N) and tighten with an across headed screwdriver (not supplied). STEP 5: Stand up the unit and fix the Handle (C) to the Door Frame using Bolts (L) and tighten with an across headed screwdriver (not supplied).
- Page 7 STEP-BY-STEP ASSEMBLY: STEP 6: Fix Cam Pins (H) and Wooden Dowels (I) to Bottom Panel (08), then attach Bottom Panel (08) to Sides (09 and 11) using Cam Locks (F) and tighten with an across headed screwdriver (not supplied). See details as below. DETAIL STEP PLEASE SEE THE BELOW PICTURE.
- Page 8 STEP-BY-STEP ASSEMBLY: STEP 8: Fix Cam Pins (H) to Front Frame (12), then attach the assembled Bottom Panel and Sides to Front Frame (12) using Cam Locks (F) and tighten with an across headed screwdriver (not supplied). See details as below. DETAIL STEP PLEASE SEE THE BELOW PICTURE.
- Page 9 STEP-BY-STEP ASSEMBLY: STEP 10: ● Insert the Wooden Dowels (J) to the assembled bottom unit, place the Shelf (07) and the assembled top unit on aligning the pre-fixed dowels. ● Fix Bolts (K) to lock the top unit and tighten with Allen Key (E). STEP 11: Fix more Screws (N) between the back panels.
- Page 10 STEP-BY-STEP ASSEMBLY: STEP 12: ● Fix Cam Pins (H) to Drawer Sides (17 and 18), then attach them to Drawer Back (16) using Cam Locks (G). ● Insert Drawer Bottom (14) to the assembled unit aligning the grooves. ● Fix Cam Pins (H) to Drawer Front (15), then attach it to Drawer Sides using Cam Locks (G).
- Page 11 STEP-BY-STEP ASSEMBLY: STEP 14: Insert Brackets (B) into the sides of the unit and place on the Glass Shelf (06). 11/14...
- Page 12 STEP-BY-STEP ASSEMBLY: STEP 15: Place the drawers into the assembled cabinet. Move the ball runner to front before put in the drawers. 12/14...
- Page 13 STEP-BY-STEP ASSEMBLY: STEP 16: ● Fix two Brackets (R) to the back top of the unit using Screws (S). ● Use electric drill to drill two small holes on the desired location of wall, insert Wall Plugs (P) into the holes by rubber mallet, use Screws (B) to attach the Brackets (R) onto wall. ●...
- Page 14 MAINTENANCE AND CARE TIPS FOR WOOD FURNITURE: -Always dust, wipe and clean in the direction of the wood grains. -Check and re-tighten screws/blots after the product has been used for a period of time. -Heat creates chemical changes in the furniture finish. As a result, whitish spots may appear. -It is best to keep your furniture in a climate controlled environment.
