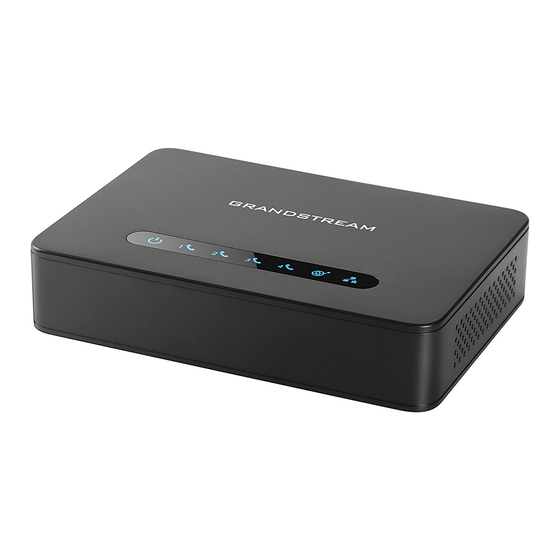

Grandstream Networks HT-814 Quick Start Manual
  1. Manuals
  2. Brands
  3. Grandstream Networks Manuals
  4. Gateway
  5. HT814
  6. Quick start manual

Grandstream Networks HT-814 Quick Start Manual

Hide thumbs Also See for HT-814:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Home
PBXware
SERVERware
TELCOware
SIPmon
SIPProt
Desktop & Mobile
BRM
UADs
Appliances
EOL
From Bicom Systems Wiki
Contents
1 Introduction
Introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-814 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks HT-814

Summary of Contents for Grandstream Networks HT-814

  • Page 1 Home PBXware SERVERware TELCOware SIPmon SIPProt Desktop & Mobile UADs Appliances From Bicom Systems Wiki Contents 1 Introduction 2 Requirements 2.1 Identifying phone model 2.2 Phone firmware 2.3 DHCP server 2.4 PBXware version 3 Installation 3.1 Basic Setup 3.2 Reset to factory settings 3.3 Manual Configuration 3.4 Auto Provisioning 4 Additional Configuration Template...
  • Page 2 This Configuration Guide is written as general guide on how to configure the Grandstream device model HT-814 to work with PBXware 4.1. Requirements Identifying phone model To start and successfully complete registration of your Grandstream device you need to know which phone model you will setup.
  • Page 3 Grandstream HT-814 device have four analog phone ports so if needed four phones can be registered from a single ATA device. After you connected analog phone to your HT-814 device pick up the phone and dial: *** - enter configuration menu 02 - IP address announcement Write down IP address for future reference.
  • Page 4 corresponding to your Grandstream device. Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes. Click Save button to save changes. Creating Extension Creating Extension 1. Add Extension Navigate to Extensions and click Add Extension. The standard options window will be shown below.
  • Page 5 Enter Grandstream device MAC address. Example: 000B82123456. MAC address can be found at the back of the device. Click Save button to preserve changes. Reset to factory settings This step is not required for brand new out-of-the-box devices, however, if the device has been already used then it is a must.
  • Page 6 Enter or set the following details into the respective fields. SIP User ID - PBXware extension number. Example: 1003 Authenticate ID - The same number as the SIP User ID. Password - The Secret of the extension as received in the e-mail associated with this extension.
  • Page 7 Click on the Apply button. Dial *123 to verify registration. Auto Provisioning 1. Login to your device web administration interface Open new browser window and enter ATA IP address, for example 192.168.1.57 Login to web administration interface by entering password (default password for Grandstream web administration is: admin).
  • Page 8 PBXware. Dial *123 to verify registration. Additional Configuration Template If You want to include some additional UAD configuration for Grandstream HT-814, just add fields to User Agent General Auto Provisioning Template in Settings -> UAD ->...
