Make Settings; Settings Lynx Shunt Ve.can - Victron energy Lynx Shunt VE.Can Manual

Lynx Shunt VE.Can
GX device
power cables
VE.Can RJ45
terminator
RJ45 UTP
cable
VE.Can RJ45
terminator

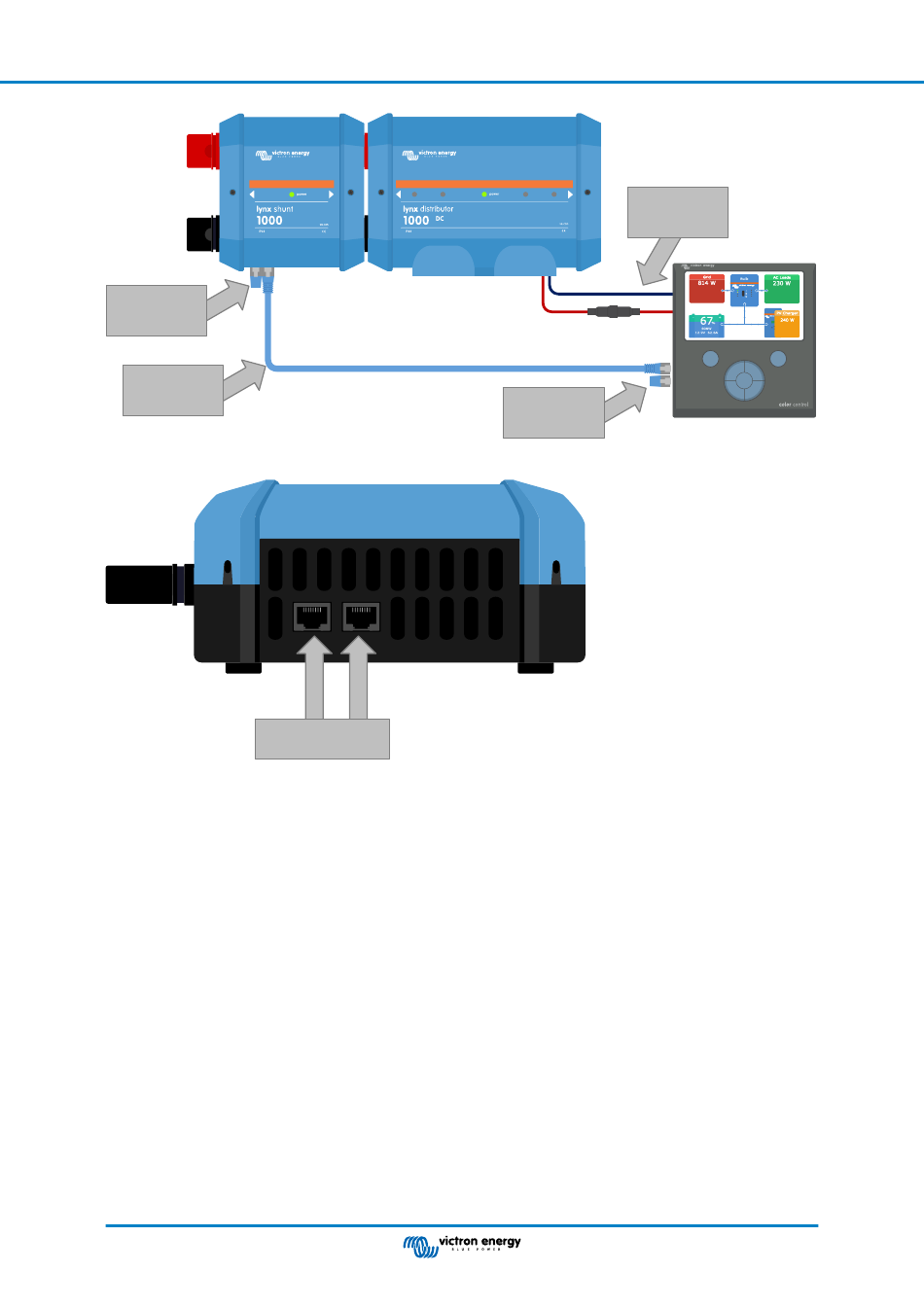

Wiring example Lynx Shunt VE.Can and GX device
RJ45 VE.can
connectors
Location VE.Can connectors Lynx Shunt VE.Can

6.3. Make settings

6.3.1. Settings Lynx Shunt VE.Can

Once powered up and connected to a GX device, navigate to the Lynx Shunt VE.Can settings menu on the GX device to make
and change settings.
Most settings can be left to their default values, but there are a few essential settings to make by your own :
• Set the battery capacity.
• If lithium batteries are used, specific battery monitor settings are needed. Refer to the battery monitor settings chapter.
• If the alarm relay is used, set the alarm relay parameters.
For a full overview and an explanation of all battery monitor settings, refer to the battery monitor setting chapter
Page 14 Installation
