Kongsberg Simrad FS70 Instruction Manual

Datss operator panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL
Simrad DATSS Operator Panel
kongsberg.com/simrad

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simrad FS70 and is the answer not in the manual?

Questions and answers

Related Manuals for Kongsberg Simrad FS70

Summary of Contents for Kongsberg Simrad FS70

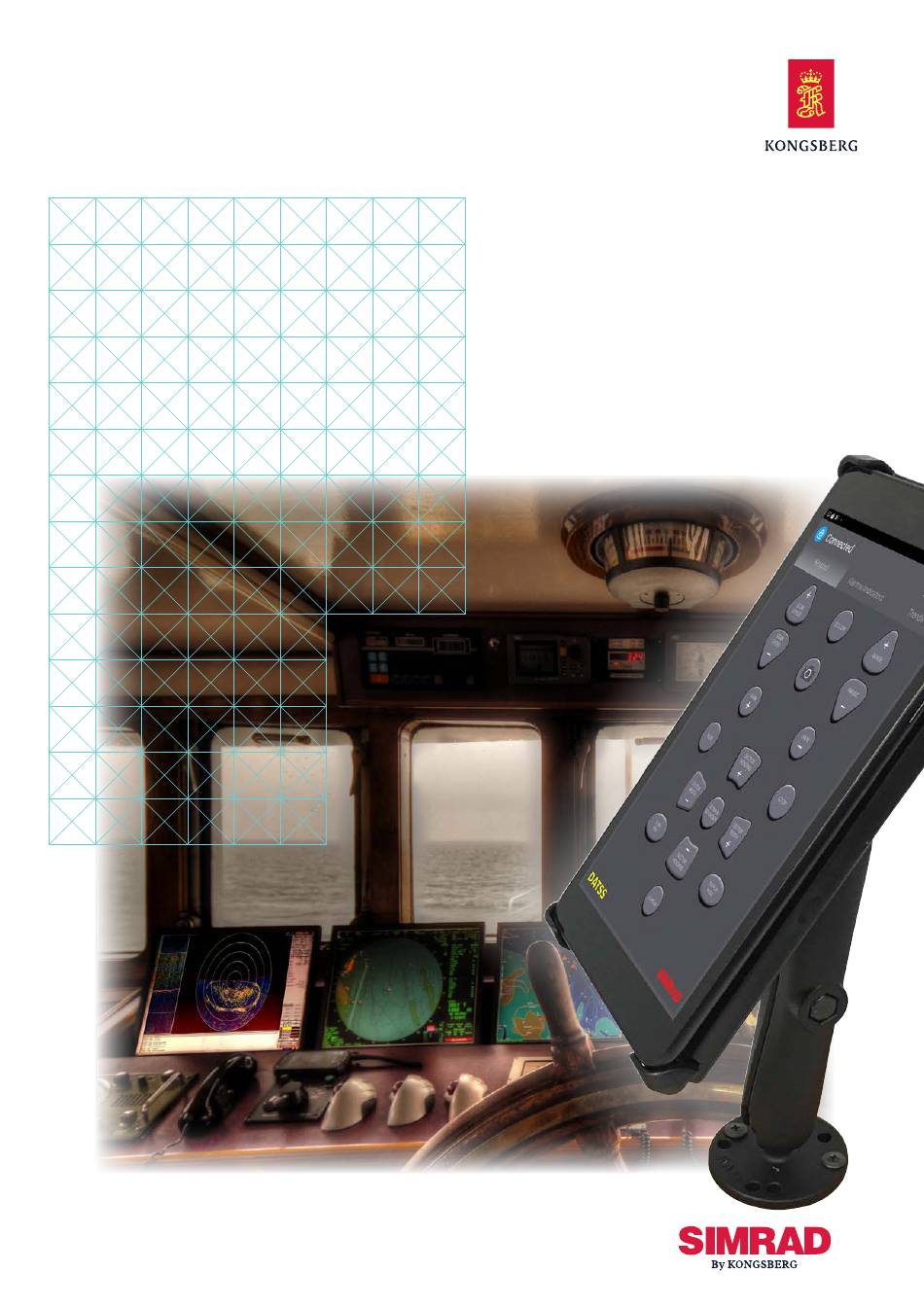

  • Page 1 INSTRUCTION MANUAL Simrad DATSS Operator Panel kongsberg.com/simrad...
  • Page 3 Simrad DATSS Operator Panel Touchscreen App and Tablet with Mount Instruction Manual Release 2.0 This manual provides the basic information required to get started with the DATSS Operator Panel. 901-80047051/2.0 September 2020 © Kongsberg Maritime AS...
  • Page 4 Kongsberg Maritime disclaims any responsibility for damage or injury caused by improper installation, use or maintenance of the equipment. Disclaimer Kongsberg Maritime AS endeavours to ensure that all information in this document is correct and fairly stated, but does not accept liability for any errors or omissions. Support information If you require maintenance or repair, contact your local dealer.

  • Page 5: Table Of Contents

    Instruction Manual Table of contents ABOUT THIS MANUAL .............. 5 DATSS OPERATOR PANEL ............7 Important..........................8 System description ......................9 System diagram........................10 System overview......................11 System units ........................12 Tablet and Remote Control App................13 Tablet mount......................14 Support information ......................15 INSTALLING THE WIRELESS ACCESS POINT AND TABLET................
  • Page 6 Simrad DATSS Operator Panel 901-80047051/2.0...

  • Page 7: About This Manual

    ® Simrad , SIMRAD and the Simrad logo are either registered trademarks, or trademarks of Kongsberg Maritime AS in Norway and other countries. Windows ® is a registered trademark of Microsoft Corporation in the United States and other countries. 901-80047051/2.0...
  • Page 8 Simrad DATSS Operator Panel Instruction Manual We want your feedback We want to improve DATSS Operator Panel continuously. We also want our end-user documentation to be comprehensive and relevant. You can help. Please provide comments, suggestions or constructive criticism to any of our support offices. 901-80047051/2.0...

  • Page 9: Datss Operator Panel

    DATSS Operator Panel DATSS Operator Panel Topics Important, page 8 System description, page 9 System diagram, page 10 System overview, page 11 System units, page 12 Support information, page 15 901-80047051/2.0...

  • Page 10: Important

    Send your existing dongle serial number to Kongsberg Mesotech sales or support. Kongsberg Mesotech will send you a license file (a .bin file). Store it on a known location on your hard drive. Insert your dongle into a USB port on your computer.

  • Page 11: System Description

    DATSS Operator Panel System description The DATSS Operator Panel extends the functionality of your existing DATSS system with remote control and catch-sensor monitoring. The DATSS Operator Panel system consists of a Samsung Galaxy tablet with the DATSS Remote Control App installed.The Remote Control App allows you to control key functions of the DATSS Software remotely.

  • Page 12: System Diagram

    Simrad DATSS Operator Panel Instruction Manual System diagram The system diagram identifies the main components of a basic DATSS Operator Panel system. Only the main connections between the units are shown. PoE (Power over Ethernet) adapter and power cord DATSS Processor Unit Ethernet cable Wireless Access Point Touchscreen App and Tablet with Mount...

  • Page 13: System Overview

    DATSS Operator Panel Related topics Installing the wireless access point and tablet, page 17 System overview The DATSS Operator Panel is easily integrated into an existing DATSS system. PoE (Power over Ethernet) adapter and power cord Ethernet cable Wireless Access Point Touchscreen App and Tablet with Mount Display DATSS Processor Unit...

  • Page 14: System Units

    Simrad DATSS Operator Panel Instruction Manual System units Topics Tablet and Remote Control App, page 13 Tablet mount, page 14 901-80047051/2.0...

  • Page 15: Tablet And Remote Control App

    DATSS Operator Panel Tablet and Remote Control App The Android tablet includes the Remote Control App, which allows you to control a DATSS system remotely. The Samsung Galaxy Tab A is a premium Android tablet that is slim, compact, and portable. The tablet is easy to grip in one hand, has excellent battery life, and good performance.

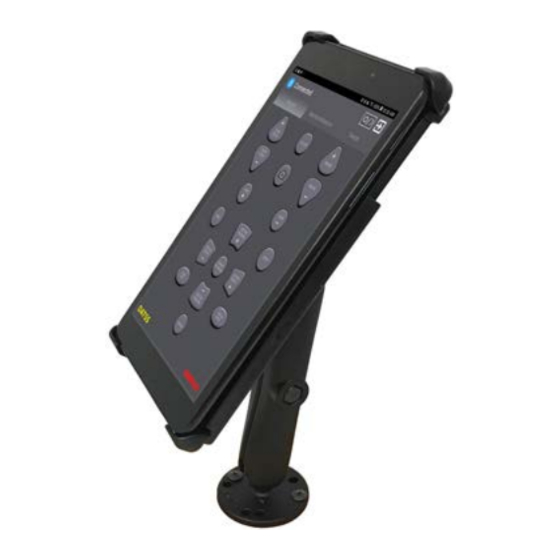

  • Page 16: Tablet Mount

    Simrad DATSS Operator Panel Instruction Manual Tablet mount The tablet mount allows you to install the DATSS Operator Panel at an optimal viewing angle and monitor your catch sensors hands-free. The provided RAM mount includes a spring-loaded quick-release cradle so that it is easy to load and unload the tablet or access ports.

  • Page 17: Support Information

    Telefax • https://www.kongsberg.com/simrad Website • simrad.france@simrad.com E-mail address • : Kongsberg Underwater Technology Inc / Simrad Fisheries Company name • : 19210 33rd Ave W, Suite A, Lynnwood, WA 98036, USA Address • : +1 425 712 1136 Telephone •...
  • Page 18 Website • simrad.canada@simrad.com E-mail address Malaysia • : Kongsberg Maritime Malaysia Sdn. Bhd Company name • : Unit 27-5 Signature Offices, The Boulevard, Mid Val- Address ley City, Lingkaran Syed Putra, 59200 Kuala Lumpur, Malaysia • : +65 6411 7488 Telephone •...

  • Page 19: Installing The Wireless Access Point And Tablet

    Installing the wireless access point and tablet Installing the wireless access point and tablet By default, the tablet connects to the DATSS Processor Unit through an Ethernet wireless access point. A wireless Bluetooth connection is available as a backup option if you are experiencing problems with the wireless access point.
  • Page 20 Simrad DATSS Operator Panel Instruction Manual Procedure Connect an Ethernet cable from the Ethernet port on the bottom of the wireless access point (!) to the provided PoE (Power over Ethernet) adapter’s port (A). Connect an Ethernet cable from an Ethernet port on the DATSS Processor Unit to the PoE adapter’s port (B).
  • Page 21 Installing the wireless access point and tablet Further requirements If you experience any issues using Wi-Fi to connect to the DATSS Processor Unit, you can try connect via Bluetooth. Plug the provided Bluetooth dongle into a USB port on your DATSS Processor Unit. You do not need the dongle if your computer is already Bluetooth capable.

  • Page 22: Mounting The Tablet

    Simrad DATSS Operator Panel Instruction Manual Mounting the tablet The tablet mount allows you to install the DATSS Operator Panel at an optimal viewing angle and monitor your catch sensors hands-free. Prerequisites If you wish to permanently install the mount, you will need suitable fasteners and a screwdriver.
  • Page 23 Mounting the tablet Procedure Insert the tablet into the top cup ends and push upward to expand the spring tension. Lay the tablet down against the holder and release downwards to secure in place. Permanently mount the articulating arm by attaching the lower round plate onto any flat surface with fasteners.
  • Page 24 Simrad DATSS Operator Panel Instruction Manual With the tablet in the cradle, wrap the corners of the tether over the front of the device, as shown. 901-80047051/2.0...

  • Page 25: Configuring The Datss Operator Panel For Normal Operation

    Configuring the DATSS Operator Panel for normal operation Configuring the DATSS Operator Panel for normal operation Topics Configuring an Ethernet connection, page 24 Configuring a Bluetooth connection, page 27 901-80047051/2.0...

  • Page 26: Configuring An Ethernet Connection

    Simrad DATSS Operator Panel Instruction Manual Configuring an Ethernet connection The DATSS Operator Panel has been set up at the factory to connect to your DATSS Processor Unit via Ethernet. However, if you are supplying your own computer, you will need to set your computer’s Ethernet Port to a static IP address so that it can communicate with the tablet.
  • Page 27 Configuring the DATSS Operator Panel for normal operation In the dialog box, tap on Connection Options Ethernet Observe that a dialog box opens. Reminder to dismiss the reminder. Next Observe that an dialog box opens. IP Address Make sure that “192.168.0.201” appears in the field.
  • Page 28 Simrad DATSS Operator Panel Instruction Manual If the tablet displays an error message, make sure that the wireless access point is installed, set up according to the instructions in this manual, and is turned on. If you are still experiencing problems, try and connect through Bluetooth instead. Related topics Installing the wireless access point and tablet, page 17 Setting up Ethernet on a new PC, page 44...

  • Page 29: Configuring A Bluetooth Connection

    Configuring the DATSS Operator Panel for normal operation Configuring a Bluetooth connection You can set up a wireless connection through Bluetooth. Prerequisites ® • This procedure is made for the Microsoft 64-bit Windows 10 operating system. Attention Wireless connectivity through Bluetooth is not available on Windows 7. •...
  • Page 30 Simrad DATSS Operator Panel Instruction Manual Swipe down from the top of the screen to access the notification panel. Tap on the icon (!). Settings Observe that the app opens. Settings → Connections Bluetooth Toggle the switch to the ON position. On the computer, in the bottom-left corner of your desktop, select the Windows ®...
  • Page 31 Configuring the DATSS Operator Panel for normal operation Toggle the switch to the ON position. Wait for your computer to appear on the Available list on your tablet. devices Tap on your computer name to start the pairing process. Observe that a Bluetooth dialog box pairing request...
  • Page 32 Simrad DATSS Operator Panel Instruction Manual Note When you run the DATSS software, a Bluetooth server should start running in the background. You will not see the server launching. To make sure that the server is running, open the , select the Task Manager tab and look for the server in the list.
  • Page 33 Configuring the DATSS Operator Panel for normal operation Tap the name of your Processor Unit, then tap Next Wait for the tablet to connect to the server. When the page appears, you can start using the Remote Control App. Keypad Related topics Installing the wireless access point and tablet, page 17 901-80047051/2.0...

  • Page 34: Operating Procedures

    Simrad DATSS Operator Panel Instruction Manual Operating procedures Topics Using the Keypad page, page 33 Using the Alarms/Indicators page, page 38 Using the Trends page, page 41 901-80047051/2.0...

  • Page 35: Using The Keypad Page

    Operating procedures Using the Keypad page page includes buttons for all the main functions you need to operate the Keypad Sonar Head. Prerequisites • Your Sonar Head must be installed and the DATSS Software must be running. To run the DATSS software, double-click the DATSS icon on the Processor Unit Windows desktop.
  • Page 36 Simrad DATSS Operator Panel Instruction Manual Tap on the banner ad at the bottom of the screen to dismiss it. Tap on the Day/Night icon at the top of the screen to switch between day or night mode. allows you to switch to a darker colour theme for easier viewing in a Night Mode dim environment.
  • Page 37 Operating procedures • Start operation of the Sonar Head. Use this mode to activate the system and start pinging. • Stop Stop operation of the Sonar Head. Neither transmission nor reception takes place, and there is no communication between the Processor Unit and the Sonar Head. You have not switched off the entire DATSS Operator Panel system.

  • Page 38: Using The Cursor Page

    Simrad DATSS Operator Panel Instruction Manual Using the Cursor page For an interface alternative to a mouse and keyboard, the Remote Control App allows you to move the cursor around and select menu items in the DATSS Software. Prerequisites • Your Sonar Head must be installed and the DATSS Software must be running. To run the DATSS software, double-click the DATSS icon on the Processor Unit Windows desktop.
  • Page 39 Operating procedures Tap a directional arrow to move the cursor in the DATSS Software. Tap the button to simulate a left-click mouse action. Tap one of the reference cursor buttons to place that reference cursor in the sonar view as an overlay. Tap the reference cursor button again to remove the cursor.

  • Page 40: Using The Alarms/Indicators Page

    Simrad DATSS Operator Panel Instruction Manual Using the Alarms/Indicators page page allows you to continuously monitor your catch sensor data. Alarms/Indicators Prerequisites • Your Sonar Head must be installed and the DATSS Software must be running. To run the DATSS software, double-click the DATSS icon on the Processor Unit Windows desktop.
  • Page 41 Operating procedures Procedure Tap on the tab at the top of the screen to access this page at any Alarms/Indicators time. Tap on the Day/Night icon at the top of the screen to switch between day or night mode. allows you to switch to a darker colour theme for easier viewing in a Night Mode dim environment.

  • Page 42: Reading The Catch Sensor Pulled Alarm

    Simrad DATSS Operator Panel Instruction Manual Reading the Catch Sensor Pulled alarm The Catch Sensor Pulled alarm dialog box will appear if a catch sensor is pulled. Context The Catch Sensor Pulled alarm dialog box will appear if a catch sensor is pulled. This dialog box will always appear, regardless of which page you are currently on.

  • Page 43: Using The Trends Page

    Operating procedures Using the Trends page page allows you to view depth and temperature charts and monitor changes Trends over a specified time period. Prerequisites • Your Sonar Head must be installed and the DATSS Software must be running. To run the DATSS software, double-click the DATSS icon on the Processor Unit Windows desktop.
  • Page 44 Simrad DATSS Operator Panel Instruction Manual Procedure Tap on the tab at the top of the screen to access this page at any time. Trends Tap on the Day/Night icon at the top of the screen to switch between day or night mode.

  • Page 45: Appendix

    Appendix Appendix Topics Setting up Ethernet on a new PC, page 44 Setting up the wireless access point, page 45 Setting up the tablet and app, page 49 901-80047051/2.0...

  • Page 46: Setting Up Ethernet On A New Pc

    Simrad DATSS Operator Panel Instruction Manual Setting up Ethernet on a new PC The tablet communicates with your Processor Unit through the Ethernet port. You must define which IP Address and Subnet mask the Ethernet adapter in the Processor Unit shall use for this communication.

  • Page 47: Setting Up The Wireless Access Point

    Appendix Setting up the wireless access point The provided wireless access point has been set up at the factory, so you will not ordinarily need to follow this procedure. However, if the wireless access point is reset to factory default, you will need to re-configure it as described here. Prerequisites The wireless access point must be installed and powered on.
  • Page 48 Enter “admin” for the username and “admin” for the password, then click button. log in Observe that the page opens. Set up a new account Enter “admin” into the field. New Username Enter “Kongsberg” into both the fields. New Password Confirm Password Click the button. Next Observe that the page opens.
  • Page 49 Appendix Enter “DATSS_WAP” into the 2.4 GHz field and “DATSS_WAP_5G” SSID into the 5 GHz field. SSID Enter in “Kongsberg” into both fields. Password Click the button. Save Wait for the settings to apply, then observe that a page opens.
  • Page 50 Simrad DATSS Operator Panel Instruction Manual Check the box. I have connected to the new wireless network Click the button. Finish Close the web browser. Further requirements The tablet and Remote Control App have been set up at the factory to connect to the wireless access point automatically.

  • Page 51: Setting Up The Tablet And App

    Appendix Setting up the tablet and app The tablet and Remote Control App have been set up at the factory to connect to the wireless access point automatically. However, if your tablet’s Wi-Fi settings have been reset, or you are experiencing issues connecting the tablet to the wireless access point, you can follow these instructions to connect the tablet to the correct static IP.
  • Page 52 Simrad DATSS Operator Panel Instruction Manual Tap on “DATSS_WAP” in the list. Available networks Enter “Kongsberg” into the field. Password Advanced Select Static from the drop-down menu. IP settings Enter “192.168.0.101” into the field. IP address Enter “192.168.0.201” into the field.
  • Page 53 Appendix Tap the button. Connect Observe that the “DATSS_WAP” Wi-Fi network shows as “Connected, no Internet”. Ignore the pop-up that appears. Internet may not be available Connect the tablet to the Ethernet server. Press the key on the tablet. Home Tap on the DATSS Remote Control App icon.
  • Page 54 Simrad DATSS Operator Panel Instruction Manual Enter “192.168.0.201” into the field. IP address This is the static IP address of the DATSS Processor Unit. Tap the button. Done Wait for the tablet to connect to the server. When the page appears, you can start using the Remote Control App. Keypad Observe that “Connected to 192.168.0.201”...
