Lighthouse RLPC 0.1m Operating Manual

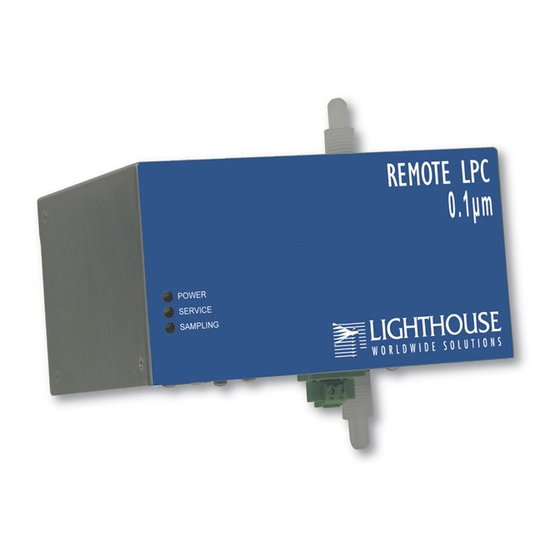

Remote liquid particle counter, modbus output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLPC 0.1m and is the answer not in the manual?

Questions and answers

Related Manuals for Lighthouse RLPC 0.1m

Summary of Contents for Lighthouse RLPC 0.1m

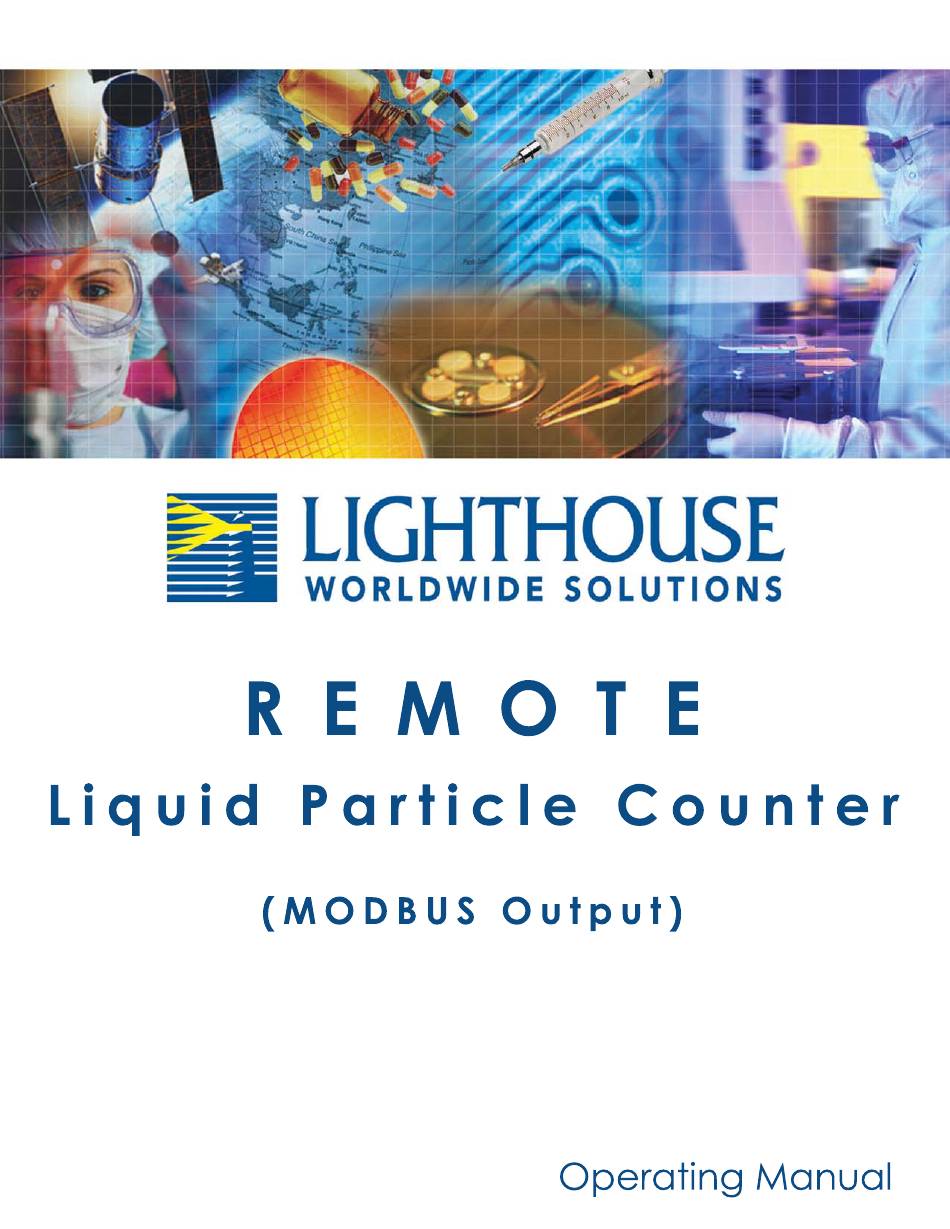

  • Page 3 Lighthouse Worldwide Solutions REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual...
  • Page 4 Copyright © 2005 - 2015 by Lighthouse Worldwide Solutions. All rights reserved. No part of this document may be reproduced by any means except as permitted in writing by Lighthouse Worldwide Solutions. The information contained herein constitutes valuable trade secrets of Lighthouse Worldwide Solutions.
  • Page 5 EU DECLARATION OF CONFORMITY Manufacturer’s Name: Lighthouse Worldwide Solutions, Inc. Manufacturer’s Address: Lighthouse Worldwide Solutions, Inc. 1221 Disk Drive Medford, OR 97501 USA Declares that the product: Product Name: Remote Liquid Particle Counter Model Number(s): RLPC 0.1 , RLPC 0.2 , RLPC 0.3 , RLPC 0.5 MODBUS...

  • Page 7: Table Of Contents

    Table of Contents List of Figures About this Manual Text Conventions ........................ i Additional Help ........................i Chapter 1 General Safety LASER Safety Information ................... 1-1 Electrostatic Safety Information ..................1-2 Chapter 2 Introduction Overview ........................2-1 Description ........................2-1 Accessories ........................
  • Page 8 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual External Alarm Output ..................3-5 Inlet Nozzle ......................3-6 Attaching Sensor ......................3-6 Chapter 4 Communications DIP Switches ........................4-1 DIP SWITCH GENERAL DEFINITIONS ............4-2 Communication Modes ................4-2 DIP Switch Addressing ..................4-3 Communicating with the Instrument ................
  • Page 9 Table of Contents General ....................... 6-6 Set Alarm Limit (WA) ..................6-6 Set Location(WL) ....................6-7 Set Date & Time(WD) ..................6-8 Counter Setup and Data Record Commands ..............6-8 Counter Set Up Commands ................6-8 Set Hold Interval (Hhhmmss) ..............6-8 Set Sample Interval (Lhhmmss) ............
  • Page 10 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Appendix A MR Protocol Commands COMM Settings ......................A-1 Device Select ........................ A-1 Universal Device Select ..................A-3 Configuration Commands ..................... A-3 Data Record Format ....................A-10 GENERAL ...................... A-10 Data Fields ...................... A-11 Appendix B RLPC MODBUS Register Map v1.44...
  • Page 11 List of Figures The REMOTE Liquid Particle Counter ..................2-1 Detail of Front Panel LEDs ......................3-2 RLPC Top Connections ......................3-3 RLPC Bottom Connections ......................3-3 RS485 Adapter Cable ......................... 3-4 Example of an RLPC Installation ....................3-6 DIP Switch Cover ........................4-1 Communication Port Pin Numbers .....................
  • Page 12 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual LOF-2 248083227-1 Rev 8...

  • Page 13: About This Manual

    "h" following the digits. For example: hex 0D Additional For more information about Lighthouse RLPC 0.1 m, RLPC 0.2 μ RLPC 0.3 m or RLPC 0.5 m Particle Counters, contact Lighthouse Help Worldwide Solutions. Service and Support: Tel: 1-800-945-5905 (Toll Free USA) Tel: 1-541-770-5905 (Outside of USA) techsupport@golighthouse.com...
  • Page 14 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual 248083227-1 Rev 8...

  • Page 15: Chapter 1 General Safety

    General Safety Safety Warnings and cautions are used throughout this manual. It is the Considerations responsibilty of the the user to familiarize themselves with the meaning of a warning before operating the particle sensor. Warnings may appear in the left margin of the page next to the subject or step to which it applies or within the step itself.

  • Page 16: Electrostatic Safety Information

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Electrostatic The following information is provided to prevent damage to Lighthouse instruments or harm to humans. Safety Information WARNING: Electrostatic discharge (ESD) can damage or destroy electronic Using a wrist-strap without an components.

  • Page 17: Chapter 2 Introduction

    Introduction Overview This operating manual introduces the Lighthouse Liquid Particle Counter REMOTE models RLPC 0.1 m, RLPC 0.2 μm, RLPC 0.3 m and RLPC 0.5 μm . Included in this manual are instructions for operation, communications and maintenance. Description The RLPC 0.1 m, RLPC 0.2 μm,...

  • Page 18: Accessories

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual photodiode. The photodiode converts the light into current which is converted to voltage and amplified by the electronics. The result is a voltage pulse each time a particle crosses the laser beam.

  • Page 19: Rlpc 0.1 M Specifications

    RS232/RS485 via RJ45 to PC, RS485/ Modbus, ASCII, Modbus or MR Protocol LED Indicators Power, Service, Sampling Supporting Software Lighthouse Monitoring System, LMS Net XChange, LMS Express and LMS Express RT Concentration Limit 64,000 counts/ml @ 5% Coincidence Error Power Input...

  • Page 20: Rlpc 0.2 M Specifications

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual RLPC 0.2 m Table 2-2 RLPC 0.2 m Specifications Specifications 0.2 - 2.0 μm Size Range Channel Thresholds Standard: 0.2, 0.3, 0.5, 0.7 m Standard: 0.2, 0.5, 1.0, 2.0 m Flow Rate...

  • Page 21: Rlpc 0.3 M Specifications

    RS232/RS485 via RJ45 to PC, RS485/ Modbus, ASCII, Modbus or MR Protocol LED Indicators Power, Service, Sampling Supporting Software Lighthouse Monitoring System, LMS Net XChange, LMS Express and LMS Express RT Concentration Limit 4,000 counts/ml @ 5% Coincidence Error Power Input...

  • Page 22: Rlpc 0.5 M Specifications

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual RLPC 0.5 m Table 2-4 RLPC 0.5 m Specifications Specifications 0.5 - 5.0 μm Size Range Channel Thresholds Standard: 0.5, 0.7, 1.0, 2.0 m Standard: 0.5, 1.0, 2.0, 5.0 m Flow Rate...

  • Page 23: Rlpc Chemical Compatibility

    Buffered Hydrofluoric Acid or BHF, BOE Buffered Oxide Etch ST-20 Solution Tetramethylammonium Hydroxide TMAH The manufacturer recommends that the Lighthouse instrument be calibrated annually by a Certified Lighthouse Service Provider to ensure that the unit continues to perform within specification. 248083227-1 Rev 8...
  • Page 24 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual 248083227-1 Rev 8...

  • Page 25: Chapter 3 Get Started

    Annual The manufacturer recommends that the Lighthouse instrument be Calibration calibrated annually by a Certified Lighthouse Service Provider to ensure that the unit continues to perform within specification. Shipping Should it become necessary to return the unit to the factory for any...

  • Page 26: Leds

    Contact Lighthouse to purchase a replacement shipping be at cost. container and nozzle caps. 3. Seal container or carton securely. Mark "FRAGILE" and write the RMA number in any unmarked corner.

  • Page 27: Instrument Overview

    Get Started Instrument Outlet Nozzle Overview The Outlet Nozzle on the top of the instrument uses ¼" flare tubing and allows the liquid sample to flow back to the system being sampled. See Figure 3-2. Outlet Nozzle Figure 3-2 RLPC Top Connections The ¼"...

  • Page 28: Communication Ports

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Communication Ports WARNING: The RS232/485 IN port incorporates Serial and MODBUS When daisy chaining multiple communications to allow short distance point-to-point RS232 or long instruments, connect IN distance multi-point RS485 communications.

  • Page 29: Dip Switches

    Get Started DIP Switches The DIP switches set the address of the instrument for RS485 daisy chain configurations and the communications mode. See “DIP Switch configuration for Communications Mode” on page 4-2 for details. Positions 1-6 set the address of the instrument. Position 7 and 8 set the communications mode.

  • Page 30: Inlet Nozzle

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Inlet Nozzle Note: The sample source is attached using ¼" flare tubing to the Inlet Nozzle. The user is responsible for The user is responsible for maintaining a nominal flow rate of 100 ml/ maintaining a nominal min.
  • Page 31 Get Started 1. Make sure that there is no flow of liquid in the system and power is removed from the RLPC. Note: 2. Connect the liquid source to the RLPC’s Inlet nozzle using the When connecting flare fittings to the RLPC, provided ¼"...
  • Page 32 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual 248083227-1 Rev 8...

  • Page 33: Chapter 4 Communications

    Communications This chapter contains information on how to set up the RLPC to program and communicate with it. DIP Switches The DIP switches are behind a panel located between the RS232/485 IN port and the power connector. See Figure 4-1. Figure 4-1 DIP Switch Cover Remove the two Phillips head screws to expose the DIP switches.

  • Page 34: Dip Switch General Definitions

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual DIP SWITCH GENERAL DEFINITIONS Table 4-1 displays the general DIP Switch settings. OFF (DOWN) = 0, ON (UP) = 1 Note: Table 4-1 DIP Switch settings Use a tool with a...

  • Page 35: Dip Switch Addressing

    Communications DIP Switch Addressing Note: Table 4-3 shows the addresses set by DIP switches 1-6. Because Address 0 is reserved for Table 4-3 DIP Switch Addressing broadcasting in MODBUS RS485 communications, Address 1 is set both when DIP SWITCHES DIP SWITCHES ADDRESS ADDRESS all the DIP switches are...

  • Page 36: Communicating With The Instrument

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table 4-3 DIP Switch Addressing DIP SWITCHES DIP SWITCHES ADDRESS ADDRESS 1 2 3 4 5 6 1 2 3 4 5 6 0 0 0 1 1 0 0 0 0 1 1 1...

  • Page 37: Rs232/485 In Port

    RESERVED for future use An RJ-45 to DB-9 modular adapter to connect the RLPC to a computer COM port is available from Lighthouse. Remove the RS485 Adapter Cable when RS232 connection is needed and reinstall the RS485 Adapter when the RS485 network is to be restored (see “RS485 Adapter Cable”...

  • Page 38: Rs485 Out Port

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual RS485 OUT Port The RS485 OUT port uses only 2 lines for RS485 communications. See Table 4-6. Table 4-6 RS485 OUT Port RJ-45 Pin Signal Name Not Used Not Used Not Used...

  • Page 39: Rs485 Communications

    2-wire configuration with ChB+ wired to the Cat5 cable pin 4, and ChA- wired to pin 5. Please contact a Lighthouse Sales Representative for an RS485 converter kit that includes the cables, connectors and terminators needed to set this up.
  • Page 40 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Make sure that each RLPC has a unique address (non-zero) or a conflict will result and data will be lost. The RLPC complies with EIA’s RS485 standards for distances and number of devices on a chain. See Table 4-7.

  • Page 41: Chapter 5 Configuring With Lws Ascii Service Protocol

    General Info The RLPC instruments can be programmed with an ASCII terminal. The Lighthouse ASCII protocol is a simple user interface to change the device’s parameters and can be used as a stand-alone or with the MODBUS or MR protocol.

  • Page 42: Ascii Command Structure

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual ASCII Command Structure The commands are defined as case-sensitive ASCII characters. Format is defined as: Note: <xx [yyyy]> The < and > characters are part of the command and must be where: typed.
  • Page 43 Configuring with LWS ASCII Service Protocol Version: 110 Serial#: 040116001 2004-01-13, 18:05:26 - program mode: Type: <V> This is Verbose mode. This must be the first command sent to the instrument. Response: <V> Verbose Mode On Type: <?> This command displays the instrument’s current configuration.
  • Page 44 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Type: <m1> This command displays the user menu. Response: <m1> *** User Menu *** <?> Display Parameters <V> Verbose Mode <sa> Start Counting <sb> Stop Counting <gd> Get Date/Time <gm> Get Model Name <gs>...

  • Page 45: Summary Of Configuration Commands

    Configuring with LWS ASCII Service Protocol If no commands are input for 60 seconds, the first sample record will display as the instrument begins to sample automatically: Sample: 0, 0; bk= 371; trh= 74.7/ 43.0; rec=95; Sample: 0, 0; bk= 371; trh= 74.7/ 43.0; rec=96; Summary of Configuration Commands The basic user configuration commands are displayed in Table 5-1.
  • Page 46 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table 5-1 User Menu Commands <m1> ASCII Description Command <ta#> Set Sample Seconds Configures the sample time interval where # is the number of seconds in the sample. The minimum value is 30 seconds and maximum value is 23 hours, 59 minutes, 59 seconds, or 83699 seconds.

  • Page 47: Example: Setting Date And Time

    Configuring with LWS ASCII Service Protocol Example: Setting Date and Time Note: The REMOTE instrument was preconfigured at the factory for Pacific Remember to type <V> first when first Standard Time (PST). To check the date and time on the instrument in entering the ASCII ASCII mode, programming mode.
  • Page 48 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Change the Day <dcDD>: This command sets the day value with a 2-digit day (DD); the range is 01 - 31, depending on the month. Type: <dc29> Response: <dc29> 2004-01-29, 11:11:35 Change the Hour <ddHH>:...

  • Page 49: Example: Setting Sample Time

    Configuring with LWS ASCII Service Protocol Example: Setting Sample Time <ta#> WARNING: The REMOTE instrument was preconfigured at the factory for 1 Do NOT set the Sample Time to a minute sample time. Do not set the value to less than 30 seconds. To value less than 30 view the current sample time on the instrument in ASCII mode, seconds.

  • Page 50: Example: Setting Hold Time

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Example: Setting Hold Time <tb#> The REMOTE instrument was preconfigured at the factory for no hold time. To view the current hold time on the instrument in ASCII mode, Type: <?>...

  • Page 51: Example: Setting Location

    Configuring with LWS ASCII Service Protocol Example: Setting Location <pa#> Note: In this case, "Location" indicates where the device is located, not The REMOTE instrument was preconfigured at the factory for the device’s Location 0. To view the current location configured on the instrument communication address.

  • Page 52: Example: Disabling Channel Alarm

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual To change the alarm channel or to disable the alarm: To enable Channel 1 alarm, type: <aa1> Response: Ch1 Alarm = ON Ch2 Alarm = OFF Ch3 Alarm = OFF Ch4 Alarm = OFF To add the channel 2 alarm, type: <aa2>...

  • Page 53: Example: Setting Alarm Threshold

    Configuring with LWS ASCII Service Protocol Example: Setting Alarm Threshold <axy> Where x is the channel number and y is the threshold value. The REMOTE instrument is preconfigured at the factory with an alarm threshold of 1000 counts. This means that the counter will enable the external alarm when the threshold of the alarm channel configured exceeds 1000 counts.

  • Page 54: Example: Setting Alarm Suppression

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Example: Setting Alarm Suppression <ae#> Note: The number of consecutive alarm conditions have to be greater than # If more than one channel goes into alarm in order to turn on the Alarm Relay.

  • Page 55: Chapter 6 Programming With Mr Protocol

    Programming with MR Protocol The RLPC can be programmed using the MR Protocol. The full protocol is detailed in Appendix A: “MR Protocol Commands” on page A-1. This protocol allows the instrument to be controlled remotely by a third party application or terminal program, such as ProCOMM or Windows Hyper Terminal and is compatible with Met One particle counters.

  • Page 56: Connecting The Instrument To A Terminal

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual • Location = • Sample Time = 60 seconds • Hold Time = 0 seconds • Alarm channel= Disabled Connecting To connect the instrument to a computer: 1. Remove power from the instrument.

  • Page 57: Device Select

    Programming with MR Protocol .Device Select Sending a Location/Address The RLPC use a Location to identify where the device recorded its data. The device address identifies the communications address of the device. For the MR protocol, Location and Device Address are the same value, LOC.
  • Page 58 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table 6-1 Location Addresses -- Hold ALT while typing the Device Select Entry number on the numeric keypad Device Device Location Location Select Select Address Address Entry Entry 0134 0166 0135...

  • Page 59: Universal Device Select (U)

    Programming with MR Protocol Table 6-1 Location Addresses -- Hold ALT while typing the Device Select Entry number on the numeric keypad Device Device Location Location Select Select Address Address Entry Entry 0159 0191 Universal Device Select (U) WARNING: If the user has a single counter on the communications line and they are Do not use Universal Select not sure of the address, first send a U command.

  • Page 60: Configuration Commands

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Configuration General Commands The general form of a Configuration Command is AAd[CRLF] WARNING: where: The MR Protocol is case sensitive. Using the • AA is the command field and is always capitalized.

  • Page 61: Set Location(Wl)

    Programming with MR Protocol Set Location(WL) This function is provided as an alternate to using the DIP switches for setting the unit’s Location/Address. If DIP Switch #7 is ON and #8 is OFF, it allows the Location/Address value to be changed by the WL command.

  • Page 62: Set Date & Time(Wd)

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Set Date & Time(WD) Note: This function is used to set the Real-Time Clock. This clock is used to There must be no spaces between date/time stamp each data record when stored. Data format is month characters and leading day year hours minutes seconds.

  • Page 63: Set Sample Interval (Lhhmmss)

    Programming with MR Protocol {= 1 minute} H60[CRLF] {= 10 seconds} H10[CRLF] These are all valid commands. Response: Query by typing: H[CRLF] Response: {Hold Interval = 10 minutes} H001000[CRLF] Set Sample Interval (Lhhmmss) WARNING: Sets or queries the instrument’s Sample Interval. The instrument is Do NOT set the Sample Time programmed at the factory with a default sample time of one minute.

  • Page 64: Action Commands

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Action General Commands Action commands are used to set the counter into Manual or Automatic mode and to control the counter Start and Stop. The general syntax for Action commands is a single lowercase letter with no arguments.
  • Page 65 Programming with MR Protocol Command: {Configured using the ’a’ and ’b’ commands. Start counting in Automatic or Manual Mode. In automatic Mode, this command starts the count - hold - count sequence and repeats continuously. In Manual Mode, the count is started and automatically stops at the end of the Sample Interval.} Response:...

  • Page 66: Universal Actions Commands

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Universal General Actions These commands are provided for controlling multiple counters on the Commands same bus. The commands are not echoed. WARNING: As soon as a Universal Action Command is executed, the bus drops out...

  • Page 67: Data Record Commands

    Programming with MR Protocol Data Record The Data Record Commands are used to transfer count data from the Commands particle counter to the computer and to control the instrument’s buffer memory. The syntax for the Data Record commands is a single capital letter with no arguments.

  • Page 68: Number Of Records(D)

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Number of Records(D) Returns the number of records in the Rotating Buffer. The buffer will hold up to 512 records. Command: Example Response: {15 records in the Rotating Buffer} D15[crlf] -or-...

  • Page 69: Miscellaneous Commands

    Programming with MR Protocol Miscellaneous Commands The Miscellaneous Commands are used to query the instrument about its status. EEPROM Version(E) Queries the instrument for its firmware revision number. Command: Response: {Where version number is a E[Version Number][CRLF] variable-length string containing alphanumeric and punctuation characters.

  • Page 70: Data Record Format

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Data Record GENERAL Format Each REMOTE counter can send a record of its data. The record is in the form of an ASCII string. The meaning of a particular character is dependent upon its position in the string.

  • Page 71: Data Fields

    Programming with MR Protocol Data Fields Status: The Status character is a 1 byte field that indicates the operational status of the counter during the last sample period. This character is the string representation of an ASCII code. For example, the Status character in the Figure above is a "$", which is ASCII 36 or, in binary, 00100100.
  • Page 72 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual controlled by the instrument (d or ud command), the characters represent the Sample Interval. Tags: Tags contain three characters that identify the type of data that follows the Tag. If the data is a particle count, the Tag indicates particle size.

  • Page 73: Chapter 7 Programming With Modbus Protocol

    Programming with MODBUS Protocol The RLPC can be programmed using the MODBUS Protocol. The full protocol is detailed in Appendix B: “RLPC MODBUS Register Map v1.44” on page B-1. This chapter contains the information needed to program the basic configuration for the instrument using the MODBUS protocol. DIP Switches During power-up and reset, the counter reads the DIP switches on the back panel.

  • Page 74: Running The Instrument Using Modbus

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Running the The applicable action commands are displayed in Table 7-1. Instrument Table 7-1 Action Commands Using Value Action MODBUS Saves all writable 4xxxx register values to the EEPROM. Clears the Data Buffer. Record count is set to zero.

  • Page 75: Manual Counting Mode

    Programming with MODBUS Protocol MANUAL Counting Mode In Manual counting mode, the computer starts the sample and the instrument continues counting until a stop command is given. At that point, the sample time is listed at whatever the time interval was between the start command and the stop command.

  • Page 76: Changing The Default Instrument Parameters

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Then write the command 13 to the command register 40002. This will write the values in the Data Set registers (40035 and 40036) to the RTC registers (40027 and 40028). The Real Time Clock can also be set in the ASCII programming mode without having to calculate the number of seconds from 1/1/1970.

  • Page 77: Using Sensor Setting Registers

    Programming with MODBUS Protocol Using Sensor Setting Registers Certain configuration settings can be sent to the counter through these registers. Sensor Setting Registers 40001 and 40003 through 40023 are protected and should not be changed. Location (Register 40026) For Particle Counters, this value specifies at what location a sample was recorded.

  • Page 78: Alarm Enable Registers

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Alarm and Alarm Enable Registers Threshold The Alarm Enable input registers (43xxx series) are read/write. All Registers enable data items are 4 bytes long and are stored across 2 registers. Byte and word ordering is big-endian. Thus, data items are formed by placing the high bytes in front of the low bytes.

  • Page 79: Enable Alarming For A Channel

    Programming with MODBUS Protocol Table 7-6 Alarm Enable Registers Register Data Type Description 43015 unsigned int Alarm Enable for Particle Channel 4 [high] 43016 unsigned int Alarm Enable for Particle Channel 4 [low] Enable Alarming for a Channel To enable alarming on the third particle channel, Enable Bit 1 for register 43014.

  • Page 80: Setting The Alarm Threshold Value

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Note: The threshold registers (45xxx series) run in parallel with the data The REMOTE comes standard with 2 registers (30xxx series). For example, data register 30010’s particle channels; the table corresponding threshold register would be 45010. Data register 30016’s below shows the optional 4 threshold register would be 45016.

  • Page 81: Appendix A Mr Protocol Commands

    MR Protocol Commands This Protocol allows the instrument to be controlled remotely by a third party application program, such as ProCOMM or Windows HyperTerminal. MR Protocol is compatible with Met One particle counters. COMM The MR Protocol is defined through an RS-485 interface with: Settings •...
  • Page 82 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table A-1 Software Configured Location Addresses Device Select Location Device Select Location Entry Address Entry Address 0135 0167 0136 0168 0137 0169 0138 0170 0139 0171 0140 0172 0141 0173 0142...

  • Page 83: Universal Device Select

    MR Protocol Commands Universal Device Select The counter will respond to all commands given after the U command, regardless of its programmed Location Address. If more than one counter is connected to the Serial Port, the use of the U command will cause communication problems because all counters will respond at the same time.
  • Page 84 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table A-2 Command Set for Displaying Current Configuration COMMAND RESPONSE DESCRIPTION Displays current Date and Time. WD[ENTER] WDmmddyy hhmmss[CRLF] There are no settings for time zones or Daylight Savings Time. Displays current HOLD...
  • Page 85 MR Protocol Commands Counter Table A-4 displays the commands that are used to setup the sample and Setup hold intervals for the instrument. Commands Table A-4 Particle Counter Setup Commands COMMAND RESPONSE DESCRIPTION Queries the instrument’s L[ENTER] Lhhmmss[CRLF] Sample Interval; displayed in hours minutes seconds.
  • Page 86 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table A-5 Command Set for Action Commands COMMAND RESPONSE DESCRIPTION Manual Mode: Puts the counter into Manual Mode. When used with the [d] Start command, unit will sample for the Sample Interval and then stop.
  • Page 87 MR Protocol Commands Table A-6 Universal Actions Command Set COMMAND DESCRIPTION Universal Manual Sample Mode Puts the counters in Manual Count mode. When the ud command is sent, the devices will count through its Sample Interval and then stop. This command is not echoed.
  • Page 88 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Data Record The Data Record Commands are used to transfer count data from the particle counter to the computer and to control the instrument’s buffer Commands memory. See Table A-7. The syntax for the Data Record commands is a single capital letter with no arguments.
  • Page 89 MR Protocol Commands Other Status These commands are used to query the instrument about its status. The Commands command letter is typed and the response is immediate. No [ENTER] key press is needed after these commands. See Table A-8. Table A-8 Other Status Commands COMMAND RESPONSE DESCRIPTION...

  • Page 90: Data Record Format

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Data Record GENERAL Format Each REMOTE counter can send a record of its data. The record is in the form of an ASCII string. The meaning of a particular character is dependent upon its position in the string.

  • Page 91: Data Fields

    MR Protocol Commands Data Fields Status: The Status character is a 1 byte field that indicates the operational status of the counter during the last sample period. This character is the string representation of an ASCII code. For example, the Status character in Figure A-1 is a "$", which is ASCII 36 or, in binary, 00100100.
  • Page 92 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual the characters represent the Sample Interval. Tags: Tags contain three characters that identify the type of data that follows the Tag. If the data is a particle count, the Tag indicates particle size. If the data is a location number, the Tag is LOC.

  • Page 93: Appendix B Rlpc Modbus Register Map V1.44

    RLPC MODBUS Register Map v1.44 COMM Lighthouse particle counters using MODBUS require the following Settings communications settings: Table B-1 MODBUS Communications Settings Baud Rate 19200 Data Bits Stop Bits Parity None Hardware Protocol RS485, USB and Ethernet Software Protocol MODBUS ASCII (supports upper/lower case) MODBUS TCP The MODBUS slave address is set on the particle counter.

  • Page 94: Sensor Settings Registers

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Register Map Sensor Settings Registers Instrument settings are stored in holding registers (the 4xxxx series), which are mostly read/writable. Not all holding registers are writable. Table B-3 describes the contents of these registers.
  • Page 95 RLPC MODBUS Register Map v1.44 Table B-3 Sensor Settings Registers Register Data Type Description 40020 ASCII string Model Name char[10], char [11] 40021 ASCII string Model Name char[12], char [13] 40022 ASCII string Model Name char[14], char [15] 40023 unsigned integer Value = Flow Rate.
  • Page 96 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table B-3 Sensor Settings Registers Register Data Type Description 40035 unsigned integer Data Set [high]. Works in conjunction with 40036. Data entered here is applied to the device through the command register.

  • Page 97: Device Status

    RLPC MODBUS Register Map v1.44 Alarm Mode (40037) defines the type of calculation performed to define an alarm condition. Alarm Mode = 0 corresponds to conventional threshold alarming; channel bit set if threshold exceeded for that given channel. Alarm Parameter (40038) defines additional parameters that may be needed in defining an alarm mode.

  • Page 98: Data Registers

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table B-5 Command Register Value Action Saves the instrument parameters in the 40xxx registers to the EEPROM. Parameters include Sample Time, Hold Time, Initial Delay, and Location. Enable Remote Control. Locks out the instrument’s user interface.
  • Page 99 RLPC MODBUS Register Map v1.44 Example: <High Bytes><Low Bytes> = <4 Byte Data Item> IEEE floating point has big-endian byte order and little-endian word order. Thus, analog data items are formed by placing the low bytes in front of the high bytes. Example: <Low Bytes><High Bytes>...

  • Page 100: Data Status Byte (30007 - 30008

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table B-6 Data Registers Register Data Type Description 30012 unsigned integer Particle Channel 2 [low] 30013 unsigned integer Particle Channel 3 [high] 30014 unsigned integer Particle Channel 3 [low] 30015 unsigned integer...

  • Page 101: Alarm Flags In Channels (30076

    RLPC MODBUS Register Map v1.44 30008 (bits 1 and 2 are set TRUE). Table B-7 Data Status Byte Description Laser Alert Status 0 = Laser is OK 1 = Laser Alert Flow Alert Status 0 = Flow Rate is OK 1 = Flow Rate Alert Particle Overflow Status 0 = No overflow...
  • Page 102 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual string is padded with NULL characters. Note that a Data Type using all four characters will not end with a NULL character. Table B-8 Data Types String Description TIME Timestamp STIM...

  • Page 103: Data Units Registers

    RLPC MODBUS Register Map v1.44 Data Units Registers The 42xxx register series identifies the units used by data items in the 30xxx series. These registers run in parallel with the Data Registers. For example, Data Register 30010’s Units Register is 42010. Note: Units are stored as 4 character ASCII strings across 2 registers.

  • Page 104: Data And Alarm Registers

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Table B-10 Data Units Units Description Units Description Percent MLPM Milliliters per minute Seconds Inches of mercury Particles per liter p/ml Particles per milliliter Data and Data and Alarm Enable Registers...

  • Page 105: Enable Alarming For A Channel

    RLPC MODBUS Register Map v1.44 Table B-12 Alarm Enable Registers Register Data Type Description 43010 unsigned int Enable for Particle Channel 1 [low] 43011 unsigned int Enable for Particle Channel 2 [high] 43012 unsigned int Enable for Particle Channel 2 [low] 43013 unsigned int Enable for Particle Channel 3 [high]...

  • Page 106: Threshold Setup Registers

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual second channel, disable Bit 1 for register 43014 and enable Bit 1 for register 43012. To disable alarming completely, disable Bit 1 for register 43012. Now, no channels are enabled for alarms.
  • Page 107 RLPC MODBUS Register Map v1.44 Note: The threshold registers (45xxx series) run in parallel with the data The table below shows the registers for an registers (30xxx series). For example, data register 30010’s 8 channel particle counter. corresponding threshold register would be 45010. Data register 30016’s Counters with fewer threshold register would be 45016.

  • Page 108: Setting The Alarm Threshold Value

    Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Setting the Alarm Threshold Value The Alarm Threshold Value is set in the low register of the channels. Table B-15 Alarm Threshold Registers set to default value Particle Threshold Registers Channel...

  • Page 109: Appendix C Maintenance

    Maintenance Flow Cell The flow cell is an integral part of the RLPC sensor and must be Cleaning cleaned periodically to maintain counting accuracy of the sensor. The RLPC sensor will detect when its flow cell needs cleaning and indicate this by turning on the service LED. Refer to “Understanding the LEDs”...
  • Page 110 12. Reconnect power to the RLPC and verify the service light is off to determine if the flow cell was cleaned successfully. If this fails to resolve the issue, contact Lighthouse Technical Support at 1-800-945-5905 (Toll Free USA) or 1-541-770-5905 (Outside of USA).

  • Page 111: Appendix D Limited Warranty

    BILITY, OR PRODUCT LIABILITY CLAIM AND BUYER AGREES TO WAIVE SUCH CLAIMS. LWS’s SOLE AND EXCLUSIVE LIABILITY AND BUYERS SOLE AND Lighthouse Worldwide Solutions (LWS) warrants that all equip- EXCLUSIVE REMEDY, FOR ANY NONCONFORMITY OR ment shall be free from defects in material and workmanship...
  • Page 112 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual 248083227-1 Rev 8...
  • Page 113 Communications Settings B-1 Getting Started 5-2 Compatible chemicals 2-7 Handshake 5-2 Configuration Commands A-3 ASCII Terminal Configuration using Lighthouse ASCII Service Command Structure 5-2 Protocol 5-1 AUTOMATIC Counting Mode 7-2 Configuring with ASCIl 5-1 Automatic Mode 7-2 Connecting to a PC 4-7...
  • Page 114 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual RLPC 0.5 m 2-6 daisy chain network 4-7 Data loss 4-8 Data Record Commands 6-8, A-8 Flow Cell Data Registers B-6 Cleaning C-1 Device Status Word B-8 Flow Rate Data Storage RLPC 0.1 m 2-3...
  • Page 115 Index RLPC 0.5 m 2-6 RLPC 0.2 m 2-4 Limitation Of Warranties D-1 RLPC 0.3 m 2-5 Limited Warranty D-1 RLPC 0.5 m 2-6 little-endian data B-7 Programming with MODBUS Protocol 7-1 Location 7-5 Programming with MR Protocol 6-1 Material Safety Data Sheet 3-1 Real Time Clock Miscellaneous Commands 6-15 Setting 7-3...
  • Page 116 Lighthouse REMOTE Liquid Particle Counter (MODBUS Output) Operating Manual Send Buffered Record(A) 6-13 Send Current Record(B) 6-13 Sensor Settings Registers B-2 Understanding the LEDs 3-2 Location 7-5 Unique non-zero address 4-8 Sample Time 7-5 Universal Device Select A-3 Using Sensor Setting Registers 7-5...

This manual is also suitable for:
