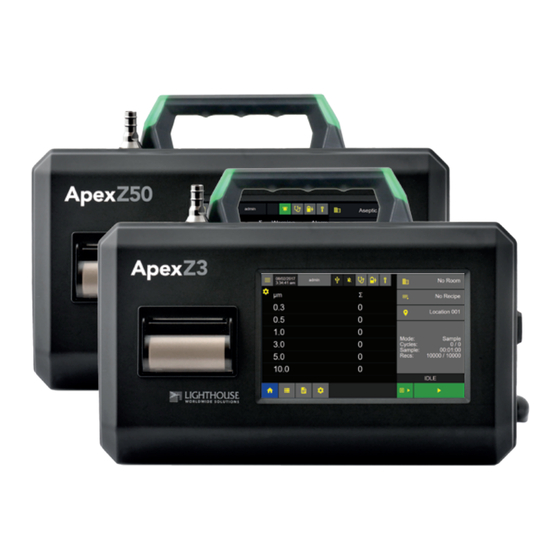

Lighthouse ApexZ Series Operator's Manual

Airborne particle counter
Hide thumbs Also See for ApexZ Series:
Table of Contents

Advertisement

Quick Links

ApexZ
A I R B O R N E PA R T I C L E C O U N T E R
Operators Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ApexZ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lighthouse ApexZ Series

Summary of Contents for Lighthouse ApexZ Series

  • Page 1 ApexZ A I R B O R N E PA R T I C L E C O U N T E R Operators Manual...
  • Page 2 Lighthouse Worldwide Solutions ApexZ Operators Manual...
  • Page 3 Lighthouse Worldwide Solutions ApexZ Operators Manual Lighthouse Worldwide Solutions Airborne Particle Counters Operators Manual...
  • Page 4 Lighthouse Worldwide Solutions ApexZ Operators Manual Copyright ©2018 by Lighthouse Worldwide Solutions. All rights reserved. No part of this document may be reproduced by any means except as permitted in writing by Lighthouse Worldwide Solutions. The information contained herein constitutes valuable trade secrets of Lighthouse Worldwide Solutions. You are not permitted to disclose or allow to be disclosed such information except as permitted in writing by Lighthouse Worldwide Solutions.

  • Page 5: Table Of Contents

    Lighthouse Worldwide Solutions ApexZ Operators Manual Table of Contents Safety ..................................1 About this Manual ..............................1 General Safety ................................1 Laser Safety ................................2 Battery Safety .................................3 Installing the battery ..............................4 Power Safety ................................6 Sampling Safety ..............................7 Operating Safety ..............................7 Electrostatic Safety Information ..........................7 Compliance .................................9...
  • Page 6 Lighthouse Worldwide Solutions ApexZ Operators Manual Factory Reset ............................... 33 About Screen ............................... 34 Connectivity ................................35 Ethernet ................................35 DHCP ..................................36 Wi-Fi..................................37 Manual Wi-Fi Configuration ..........................38 Active Directory AD/LDAP ........................... 42 CIFS (Common Internet File System) ........................43 Print ..................................
  • Page 7 Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe - Sample Settings......................... 76 Certification Recipe – Room and Locations ......................77 Certification Recipe - Name ..........................78 Edit - Certification Recipes ..........................79 Locations .................................. 83 Edit Location Name ............................. 83 Select Room for Location ............................
  • Page 8 Lighthouse Worldwide Solutions ApexZ Operators Manual Report Screen ..............................117 Report Screen Filters ............................118 Deleting a Report ............................... 120 Audit Trail ................................121 Calibration ................................123 Trouble Shooting ..............................124 Clean and Disinfect ..............................125 Terminology ................................126 Appendix A: Limited Warranty ..........................127...

  • Page 9: Safety

    Safety About this Manual This manual describes the setup, operation and use of the Lighthouse Worldwide Solutions ApexZ family of Portable Airborne Particle Counters. The word “ApexZ”, “unit” or “instrument” may be used in place of a specific model in this ApexZ Operators Manual.

  • Page 10: Laser Safety

    Lighthouse Worldwide Solutions ApexZ Operators Manual Laser Safety This product is considered to be a Class 1 LASER product (as defined by FDA 21 CFR, §1040.10 and IEC 60825-1:2014) when used under normal operation and maintenance. Performing service on the internal sensor can, however, result in exposure to invisible radiation.

  • Page 11: Battery Safety

    Lighthouse Worldwide Solutions ApexZ Operators Manual Battery Safety Battery Type: National Power Sm-Energy® Model: SM221 Lithium-Ion Rechargeable Battery, 14.4V, 6.45Ah, 93Wh Battery Level Indicator Button Press here to display blue LED battery charge level 25-50-75-100% 248083466-1 R3...

  • Page 12: Installing The Battery

    Lighthouse Worldwide Solutions ApexZ Operators Manual Installing the battery Insert battery 1 into the lower battery slot. Note: ApexZ has dual battery slots and can operate with either one or two batteries installed. With two batteries installed both batteries will self-adjust and drain their charge evenly together.
  • Page 13 ApexZ is plugged into the AC power with the AC power adapter and power cord. WARNING: Only use batteries provide with the ApexZ by Lighthouse Worldwide Solutions. Use of unauthorized batteries may cause damage to equipment, void warranty, and pose a threat to safety. Charging the batteries outside of ApexZ See optional Dual Bay Desktop Charger for charging up to 2 ApexZ batteries at the same time.

  • Page 14: Power Safety

    Lighthouse Worldwide Solutions ApexZ Operators Manual Power Safety Start Up Press the power button to turn on the ApexZ particle counter. Shut Down To shut down press the power button once. DO NOT HOLD the power button down. Users are not required to logout before ApexZ is shut down. If Users are enabled, shutting down the ApexZ will logout the current user and will require a user to login when the ApexZ is next started.

  • Page 15: Sampling Safety

    Lighthouse Worldwide Solutions. Attempting to use an under- rated power supply or cord can expose the instrument and adjacent equipment to the user to dangerous shock and fire hazards.
  • Page 16 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 17: Compliance

    NOTE: Any changes or modifications not expressly approved by Lighthouse Worldwide Solutions could void your authority to operate this equipment.

  • Page 18: Ce Notice

    Lighthouse Worldwide Solutions ApexZ Operators Manual CE Notice 248083466-1 R3...

  • Page 19: Introduction

    ApexZ Operators Manual Introduction Overview This operating manual introduces the Lighthouse ApexZ portable particle counters ApexZ3 and ApexZ50 and includes instructions for inspecting, installing, using and maintaining the instrument. Description The ApexZ portable particle counter comes standard with 6 particle-size channels (ApexZ3: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 microns), (ApexZ50: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 microns) and a flow rate of (ApexZ3: 1.0...

  • Page 20: Specifications

    Lighthouse Worldwide Solutions ApexZ Operators Manual Specifications Size Range ApexZ3: 0.3 - 10.0 µm. ApexZ50: 0.5 – 10.0 µm. Standard 6 Channels ApexZ3: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm. ApexZ50: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 µm. Flow rate ApexZ3: 1.0 CFM (28.3 LPM).

  • Page 21: Enclosure And Ports - Apexz3

    Lighthouse Worldwide Solutions ApexZ Operators Manual Enclosure and Ports – ApexZ3 9.03” 22.93 cm 7.43” 18.87 cm 5.86” 14.88 cm 12.76” 32.41 cm (Service Only) * Patent Pending 248083466-1 R3...

  • Page 22: Enclosure And Ports - Apexz50

    Lighthouse Worldwide Solutions ApexZ Operators Manual Enclosure and Ports - ApexZ50 SAMPLE INLET (0.5 INCH BARB) 9.03” 22.93 cm 7.43” 18.87 cm 5.86” 14.88 cm 12.76” 32.41 cm * Patent Pending 248083466-1 R3...

  • Page 23: Printer Paper Installation

    Lighthouse Worldwide Solutions ApexZ Operators Manual Printer Paper Installation Load the printer paper with the paper coming from the back side of the roll. Platen Gear Platen Paper Cover Paper Cover Lock Manual Cutter Open Printer Door Pinch the left and right...

  • Page 24: Paper Feed

    Lighthouse Worldwide Solutions ApexZ Operators Manual Paper Feed The printer paper feed button is located on the ApexZ Data Screen. Press the printer paper feed button to advance the printer paper. When the report is finished printing, pull the paper gently upward and to the side to tear the printer paper along the serrated edge of the printer enclosure.

  • Page 25: Led Handle

    Lighthouse Worldwide Solutions ApexZ Operators Manual LED Handle* The ApexZ RGB LED handle lights will light up during and after a sample to indicate warning and alarm status. If the handle LED lights are blinking then the ApexZ is currently sampling. If the handle LED light is a solid color the ApexZ has stopped sampling.
  • Page 26 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 27: Instrument Settings

    Lighthouse Worldwide Solutions ApexZ Operators Manual Instrument Settings The Instrument Settings screen allows the user to view or edit settings for Time Zone, Daylight Savings Time, Date, Time, Date Format, Time Format, Audio/Visual and Options. In addition a Maintenance tab is provided for importing and exporting configurations, updating firmware and resetting instrument and factory settings.

  • Page 28: Time Zone & Daylight Savings

    Lighthouse Worldwide Solutions ApexZ Operators Manual Time Zone & Daylight Savings Instrument Settings: Time Screen Set the Time Zone Press the Time Zone button to display the Select Time Zone Screen. To set the Time Zone Use the scroll bar to scroll up or down the Time Zone list.

  • Page 29: Date

    Lighthouse Worldwide Solutions ApexZ Operators Manual Date Instrument Settings: Time Screen Set Today’s Date Press the Date Input button to display the Pick Date screen. 01/10/2018 Select Day/Month/Year Press right/left arrow buttons to Increase / decrease the month. Pick Date Screen Press the month/year button to display the Pick Date and Month/Year Screen.

  • Page 30: Time

    Lighthouse Worldwide Solutions ApexZ Operators Manual Instrument Settings: Time Screen Time Press the Time input button to display the Enter Time keypad. 7:45:13 am Enter Time Screen Enter Time on the keypad Press the Enter Time input field to enter the current time from the numeric keypad as HH:MM:SS, am/pm.

  • Page 31: Date And Time Format

    Lighthouse Worldwide Solutions ApexZ Operators Manual Date and Time Format Instrument: Time Screen Set Date Format Press the Date Format Input button to display the Select Date Format Screen. Select Date Format Select one date format: Select Date Format Screen...

  • Page 32: Audio/Visual

    Lighthouse Worldwide Solutions ApexZ Operators Manual Audio/Visual Volume, Brightness, Language, Decimal Mark, and Digit Grouping Touch and slide the volume button from 0 – 100%. Instrument: Audio/Visual Screen Touch and slide the Brightness button 0 – 100%. Note: Enabled Alarms will sound at 100% volume.

  • Page 33: Options

    Lighthouse Worldwide Solutions ApexZ Operators Manual Options Instrument Options Screen Sample Pump Startup Enable Pump Startup to start the ApexZ pump immediately after pressing the sample start button. Enabled Disabled When disabled, the Pump will start up after the sample delay time has expired.
  • Page 34 Lighthouse Worldwide Solutions ApexZ Operators Manual Timeout Press the Timeout button to enter the Auto Lock Timeout period. Use the Keypad to enter the Auto Lock Timeout period. HH:MM:SS Press Apply Zero Count Mode Press the Zero Count Mode button.
  • Page 35 Lighthouse Worldwide Solutions ApexZ Operators Manual Zero Count Sample Time Press Zero Count Sample Time button and use the keypad to enter the Zero Count Sample time. Press Apply. Zero Count Delay Time Press the Zero Count Delay Time button and use the keypad to enter the Zero Count Delay Time. After pressing the Zero count start button Zero counting will start after the Delay period has completed.

  • Page 36: Maintenance

    Lighthouse Worldwide Solutions ApexZ Operators Manual Maintenance The Maintenance screen allows the user to import and export configurations, update firmware and reset instrument and factory settings. A USB key will be required to activate Export/Import/Update. Insert USB key into USB port.

  • Page 37: Export Configuration

    Lighthouse Worldwide Solutions ApexZ Operators Manual Export Configuration ApexZ can export it’s configuration to a file on a USB key. This configuration file can be saved as a backup or it can be Imported onto another ApexZ instrument (see Import Configuration).

  • Page 38: Import Configuration

    Lighthouse Worldwide Solutions ApexZ Operators Manual Import Configuration ApexZ can import it’s configuration from a file on a USB key. This configuration file can be imported from a backup copy or it can be imported as a clone of another ApexZ instrument configuration (see Export Configuration).

  • Page 39: Update Firmware

    Lighthouse Worldwide Solutions ApexZ Operators Manual Update Firmware To update the instruments firmware make sure the firmware upload file is copied on a USB key and then follow these steps. Instrument Maintenance Screen Insert the USB key with FW Upload File Press the Update button to display the Firmware Update Screen.

  • Page 40: Instrument Settings Reset

    Lighthouse Worldwide Solutions ApexZ Operators Manual Instrument Settings Reset Instrument Settings Instrument: Maintenance Screen Press the Instrument Settings Reset button to display the Settings Reset Screen. Reset Reset Instrument Settings Press the green check button to RESET the instrument settings or press the red x button to cancel.

  • Page 41: Factory Reset

    Lighthouse Worldwide Solutions ApexZ Operators Manual Factory Reset Pressing Factory Reset will DELETE all data on the ApexZ and return the instrument’s configuration to it’s original factory default configuration. There is no data recovery after a Factory Reset. . Press the Factory Reset button Instrument: Maintenance Screen to display the Database Reset Screen.

  • Page 42: About Screen

    Lighthouse Worldwide Solutions ApexZ Operators Manual About Screen Settings: About Screen View Firmware Versions Instrument Name: Model Serial # Sensor # Calibration Due Date MEAN Firmware Version MAIN Firmware Version SIB Firmware Version POWER Firmware Version Open Source Libraries Press the Instrument Name button Enter Instrument Name Screen to display the Enter Instrument Name Screen.

  • Page 43: Connectivity

    Lighthouse Worldwide Solutions ApexZ Operators Manual Connectivity Real-time communication between ApexZ instruments and LMS Express 8.1 software can be set up via an Ethernet cable to the ApexZ Ethernet port or a wireless Wi-Fi. Data may also be downloaded manually through the Ethernet cable, Wi-Fi connection or a micro USB to USB cable.

  • Page 44: Dhcp

    Lighthouse Worldwide Solutions ApexZ Operators Manual DHCP (Dynamic Host Configuration Protocol) When DHCP is enabled the IP Address, Subnet and Gateway will be dynamically assigned from the HOST network connection and user editing will be locked. In order to enable DHCP you must disable the Ethernet connection first.

  • Page 45: Wi-Fi

    Lighthouse Worldwide Solutions ApexZ Operators Manual Wi-Fi Configuration: Wi-Fi Screen Enable Wi-Fi Press the Wi-Fi Enable button to enable Wi-Fi. Press the + button to Configure one to five Wi-Fi connections. Press the Scan button to search for Scan for Wi-Fi available Wi-Fi networks or routers in the area.

  • Page 46: Manual Wi-Fi Configuration

    Lighthouse Worldwide Solutions ApexZ Operators Manual Manual Wi-Fi Configuration Configuration - Connectivity - Wi-Fi - “+” Select Wi-Fi Select Manual Wi-Fi Configuration WIFI 1 Manual Enterprise Wi-Fi Press the SSID button. Wi-Fi – No Security Manual Enter the SSID with the keypad.
  • Page 47 Lighthouse Worldwide Solutions ApexZ Operators Manual Select Wi-Fi Security Select Security Type. Security will be selectable only for Manual Wi-Fi configurations. Security will be preselected according to the Wi-Fi type detected. WPA-PSK Wi-Fi Protected Access – Pre-Shared Key Password required only.
  • Page 48 Lighthouse Worldwide Solutions ApexZ Operators Manual Validate Server Certificate Press the toggle button to enable Validate Server Certificate Disable Enable Import Certificate Press the Import Certificate Button Selected Certificates will be displayed. Select a Server Certificate File from the list.
  • Page 49 Lighthouse Worldwide Solutions ApexZ Operators Manual Enter Username Enter Username with the key pad. Then press Apply. Press the Password Button. Enter Password Enter password on the keyboard screen and press Apply. Press the Save button to save settings and connect to Wi-Fi selected.

  • Page 50: Active Directory Ad/Ldap

    Lighthouse Worldwide Solutions ApexZ Operators Manual Active Directory AD/LDAP Press the URL button and use the keypad to enter the Active Directory URL. Then Press Apply. Press the Domain button and use the keypad to enter the Active Directory domain.

  • Page 51: Cifs (Common Internet File System)

    Lighthouse Worldwide Solutions ApexZ Operators Manual CIFS (Common Internet File System) The Common Internet File System is used to connect and export date to shared network drives. Enter URL Press the URL button and enter the IP address using the keypad.
  • Page 52 Lighthouse Worldwide Solutions ApexZ Operators Manual Select Sub Folders under the Path Press each Folder button and select the desired folder name from the pop up list: Serial # Date Model None Enable Auto Authenticate Enable Auto Authenticate and ApexZ will use the current logged in user’s credentials to authenticate with the network drive when exporting data.

  • Page 53: Print

    Lighthouse Worldwide Solutions ApexZ Operators Manual Print Print Options The Print Options screen allows the user to setup how printouts will be formatted. Users can set data formats to Raw or Normalized, Cumulative or Differential and choose the normalized unit of measure (cubic feet, cubic meters or Liters).

  • Page 54: Usb

    The USB Options screen allows the user to select how to format data exported to USB. Data can be exported to USB as .csv (comma separated value) or .lsdx (Lighthouse Secure Data) files. The format for particle data can be set to Raw or Normalized; cubic feet, cubic meters or liters. The user may also select to output data records to USB on every sample, every alarm, or both.

  • Page 55: Users

    Lighthouse Worldwide Solutions ApexZ Operators Manual Users User Levels ApexZ supports up to 50 users and 3 different User Groups: Operators, Power Users and Administrators. ApexZ can operate with Users Enabled or Disabled. With Users Enabled, an Administrator Level User must be created and maintained.

  • Page 56: Add A New User

    Lighthouse Worldwide Solutions ApexZ Operators Manual Add a New User Add New Users User Settings Screen Press the button to Add a New User Note: In order to add new users Login as an Administrator level user or disable users.
  • Page 57 Lighthouse Worldwide Solutions ApexZ Operators Manual Enter Username Username Screen Enter user name on keyboard. Press Apply and the new username will display in the username box. Next Press the Password button. Enter Password Enter Password on keyboard. Press Apply to confirm password entered.
  • Page 58 Lighthouse Worldwide Solutions ApexZ Operators Manual Enter First and Last Name First and Last Name Screen Press the Name tab below the Username button to advance from the Username Tab to the Name Tab. Enter First Name Enter First Name from the keyboard.
  • Page 59 Lighthouse Worldwide Solutions ApexZ Operators Manual Select User Group Press the User Group button for Administrator, Power User or Operator. The User Group button selected will highlight blue indicating it has been selected. Select User Group Screen Administrator has full instrument configuration access and can create new users on ApexZ.

  • Page 60: Modify A User

    Lighthouse Worldwide Solutions ApexZ Operators Manual Modify a User The User Group may be modified by a logged in Administrator level user. Select a User and the user name will highlight blue to indicate it has been selected. Press the User Settings Tab to modify the User Group.

  • Page 61: Delete A User

    Lighthouse Worldwide Solutions ApexZ Operators Manual Delete a User Users Screen Select the User Name to delete from the Users Name list. The selected user name will highlight blue. Press the “-“ Delete button. The selected User Name will pop up and require a confirmation to delete.

  • Page 62: User Login

    Lighthouse Worldwide Solutions ApexZ Operators Manual User Login Users must be enabled from the Instrument Options screen. In addition logging in to the ApexZ requires both a Username and a Password. Enter Username Login Screen User Name and Password Touch the Username box then enter your “Username”...

  • Page 63: User Logout

    Lighthouse Worldwide Solutions ApexZ Operators Manual User Logout Home Screen: User Enabled Press the User button to display the Logout screen. Operator 1 Note: If you press the Username button and it does not display the Logout screen check Instrument Options Users are “enabled”.

  • Page 64: Change User Password

    Lighthouse Worldwide Solutions ApexZ Operators Manual Change User Password Change the User Password Configuration: Users Screen - User Settings Tab Only a logged in user can change his or her password. Press the Password button and use the keypad to enter the new password.

  • Page 65: Rooms

    Lighthouse Worldwide Solutions ApexZ Operators Manual Rooms* Add a Room Rooms Screen Press the + button to add a Room. Note: ApexZ can store up to 50 room names. At least 1 Location must be assigned to a Room and each location may only be assigned to 1 Room.

  • Page 66: Assign Locations To A Room

    Lighthouse Worldwide Solutions ApexZ Operators Manual Assign Locations to a Room Select Locations to Include in Room Include Locations Screen Press the toggle button to include a location in the New Room. Not Included Included Press a location name button to rename a location.

  • Page 67: Enter Room Name

    Lighthouse Worldwide Solutions ApexZ Operators Manual Enter Room Name Room Name Screen Enter Room Name Use the keypad to enter the New Room’s Name. Then Press Apply. Note: A Room may contain multiple locations but a location may only be assigned to one room.

  • Page 68: Modify Room

    Lighthouse Worldwide Solutions ApexZ Operators Manual Modify Room Modify Room Name Select the Room Name and it will highlight blue indicating it has been selected. Select the Name button to modify the Room Name. Modify Room Name and press Apply.

  • Page 69: Recipes

    Lighthouse Worldwide Solutions ApexZ Operators Manual Recipes Custom and Certification Standard Recipes The ApexZ supports multiple Sample Recipes and Cleanroom Standards including: Custom, EU GMP, Federal Standard 209E, ISO 14644-1: 1999 and ISO 14644-1: 2015. To add, edit, or delete recipes, if users are enabled, login as an Administrator or Power User account.

  • Page 70: Custom Recipe - Recipe Type

    Lighthouse Worldwide Solutions ApexZ Operators Manual Custom Recipe – Recipe Type ApexZ Custom Recipes allow the operator to select customized sampling parameters for channel, alarm, sample times, and location. Configuration: Recipe Screen Add a new Recipe Press the button to add a new recipe and display the New Recipe Screen.

  • Page 71: Custom Recipe - Channel Sizes

    Lighthouse Worldwide Solutions ApexZ Operators Manual Custom Recipe - Channel Sizes Custom Recipe: Channels Screen Enable or Disable Particle Size Channels Press the Enable/Disable button to Enable or disable any channel for the New Recipe. Disabled Enabled Press the Alarm tab to display the Alarm Screen.

  • Page 72: Custom Recipe - Warning And Alarm Thresholds

    Lighthouse Worldwide Solutions ApexZ Operators Manual Custom Recipe - Warning and Alarm Thresholds Custom Recipe: Warnings Screen Enable Warning Channels Select the “Warning” tab. Press the toggle button to enable or disable warnings for any of the particle size channels.
  • Page 73 Lighthouse Worldwide Solutions ApexZ Operators Manual Enable Alarm Channels Custom Recipe: Alarms Screen Select the “Alarm” tab. Press the toggle button to enable or disable alarms for any of the particle size channels. Disabled Enabled Set Alarm Values Touch the alarm limit button for any channel size and it will Highlight in blue to indicate it has been selected.

  • Page 74: Custom Recipe - Sample Settings

    Lighthouse Worldwide Solutions ApexZ Operators Manual Custom Recipe - Sample Settings Custom Recipe: Sample Settings Screen Delay Press the Delay button and the button will turn blue to indicate that it is selected. Enter the delay time with the numeric key pad.

  • Page 75: Custom Recipe - Locations

    Lighthouse Worldwide Solutions ApexZ Operators Manual Custom Recipe – Locations Select Room Custom Recipe Location Screen Select a room. Select Locations Press the enable/disable toggle button to include the desired locations to be sampled. Not Included Included Press the Name tab to display the Enter Recipe Name Screen.

  • Page 76: Edit - Custom Recipe

    Lighthouse Worldwide Solutions ApexZ Operators Manual Edit – Custom Recipe Configuration: Recipes Screen Edit Recipe Name and Recipe Type Select a Recipe Name to edit. Press the Type Tab. Press the Name button to edit the Recipe Name. Press the Recipe Type button to edit the Recipe Type.
  • Page 77 Lighthouse Worldwide Solutions ApexZ Operators Manual Edit Recipe Channels, Warnings and Alarms Edit Custom Recipe Channels Press the Size toggle button to enable the desired particle channel sizes to be sampled. Size Disabled Enabled Press the Warning and Alarm toggle buttons to enable the desired particle count limits.
  • Page 78 Lighthouse Worldwide Solutions ApexZ Operators Manual Edit Recipe Sample Settings Custom Recipe Sample Settings Press the Sample Tab to Edit Sample Settings. Press the Delay button to enter the Delay time using the numeric keypad. Then press Apply. Press the Sample Time button to enter the Sample Time using the pop up keypad.
  • Page 79 Lighthouse Worldwide Solutions ApexZ Operators Manual Press the Cycles button to enter the number of cycles using the pop up keypad. Press the Volume button to enter the sample volume using the pop up keypad. Then press Apply. Press the Units button to edit the Volume Units:...
  • Page 80 Lighthouse Worldwide Solutions ApexZ Operators Manual Edit Recipe Room and Locations Edit Custom Recipe Locations Press the Room button to edit the Room associated with this Custom Recipe. Select the room containing the Locations for the Recipe. Then press the Save button. To return to the Edit Recipe Location Screen.

  • Page 81: Certification Recipes

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipes Configuration: Recipes Screen Add a Recipe Press the + button to add a new recipe and display the New Recipe screen. Certification Recipe Types EU GMP: European Union Good Manufacturing Practices FED 209E:...

  • Page 82: Certification Recipe - Recipe Type Settings

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe – Recipe Type Settings Certification Recipe Type Screen Select your desired certification recipe type standard. Select Class or Grade Select Airflow Select Room Status Select Area Select Area Units Area Units Class...

  • Page 83: Certification Recipe - Channel And Target Limits

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe - Channel and Target Limits ApexZ certification recipes will automatically enable the required channels and assign target limits according to the selected standard type for each particle size channel. Channels not required for the standard will be disabled and no values will be shown.

  • Page 84: Certification Recipe - Sample Settings

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe - Sample Settings Certification Recipe: Settings Screen Delay Press the Delay button and the button will turn blue to indicate that it is selected. Enter the delay time with the numeric key pad.

  • Page 85: Certification Recipe - Room And Locations

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe – Room and Locations Certification Recipe Room and Locations Certification Recipe Select Room and Locations Press the Room button to select the locations to sample for this Certification Recipe. Press the Location Include toggle button to include the desired locations for this Recipe.

  • Page 86: Certification Recipe - Name

    Lighthouse Worldwide Solutions ApexZ Operators Manual Certification Recipe - Name Enter Certification Recipe Name Enter Certification Recipe Name Screen Enter the Recipe Name using the key pad and press Apply. Then press the Save button to return to the Edit Recipe Location Screen.

  • Page 87: Edit - Certification Recipes

    Lighthouse Worldwide Solutions ApexZ Operators Manual Edit - Certification Recipes Edit Recipe Type Settings Screen Edit Recipe Type Settings Select the Recipe Name to Edit. Press the Type Tab Press Recipe Name edit. Press Recipe Type to edit. Press Grade or Class to edit.
  • Page 88 Lighthouse Worldwide Solutions ApexZ Operators Manual Edit Recipe Channel and Target Limits Screen View Recipe Channels and Target Limits For certification recipes, enabled channels and target limits are fixed and may not be modified. Shown here are the target limits for the following EU GMP certification report for Room, Grade, Status and Area.
  • Page 89 Lighthouse Worldwide Solutions ApexZ Operators Manual Edit Certification Recipe Sample Settings Press the Sample Tab Edit Recipe Sample Settings Screen Press the button to edit: Delay Time Sample Time Hold Time # of Cycles Units (Liters, view only) Volume Edit Certification Recipe Locations...
  • Page 90 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 91: Locations

    Lighthouse Worldwide Solutions ApexZ Operators Manual Locations Edit Location Name Select a location name from the list. Location Screen Press the Location Name button to display Enter Location Name screen. Enter the new Location Name with the Enter Location Name Screen keyboard and press Apply.

  • Page 92: Select Room For Location

    Lighthouse Worldwide Solutions ApexZ Operators Manual Select Room for Location Select Room for Location Screen Press the Room Name button to display the Select Room screen. Select the Room to assign to the Location. Press the Save button to save the Room assigned to this Location Name.

  • Page 93: Operating Apexz

    Lighthouse Worldwide Solutions ApexZ Operators Manual Operating ApexZ The Home Screen on the ApexZ can be thought of as your particle counting dash board. You have access from the Home Screen to all functions of the ApexZ portable particle counter. Let’s take a tour of the major functional areas of the ApexZ Home Screen User Interface.

  • Page 94: Running A Sample From The Home Screen

    Lighthouse Worldwide Solutions ApexZ Operators Manual Running a Sample from the Home Screen To run a sample from the Home Screen select a Room, a Recipe, a Location and then press START. Select a Room Press the Room button to select a room from the configuration room list.
  • Page 95 Lighthouse Worldwide Solutions ApexZ Operators Manual Select a Location Press the Location button to select a location from the recipe location list. Select a Location from the list and it will highlight blue to indicate it has been selected. Ready to Start Sample!

  • Page 96: View Options

    Lighthouse Worldwide Solutions ApexZ Operators Manual View Options While ApexZ is sampling, particle count data may be viewed through multiple View Options on the Home Screen: Data Table View, Histogram View, Grid View, History View, Graph View and Environmental View.

  • Page 97: Data Table View

    Lighthouse Worldwide Solutions ApexZ Operators Manual Data Table View Home Screen - Datatable View From the Home Screen press the View Options Button then press the Datatable View button. Press the gear icon for Data Table View Settings. Select Columns: Select and enable up to 3 columns of data.

  • Page 98: Histogram View

    Lighthouse Worldwide Solutions ApexZ Operators Manual Histogram View Histogram View Screen From the Home Screen press the View Options Button then press the Histogram View button. Press the gear icon for Histogram View Settings. Note: Histogram View displays real time particle count data as a Histogram.

  • Page 99: Grid View

    Lighthouse Worldwide Solutions ApexZ Operators Manual Grid View* Grid View* displays a location button for each location assigned to the currently selected recipe. The background color of each button indicates if the location is selected, and if it has been sampled, passed, failed or in fault.

  • Page 100: Location Boarder And Background Colors

    Lighthouse Worldwide Solutions ApexZ Operators Manual Location boarder and background colors Yellow boarder indicates the selected location. Press a location button to select that Location. The yellow outline indicates the selected location. Grey Background Locations not yet sampled, available to select next.

  • Page 101: Grid View* Error Messages

    Lighthouse Worldwide Solutions ApexZ Operators Manual Grid View* Error Messages Changing Sample Settings. If the User presses the Sample Settings button during a sample session of a recipe the Unload Recipe pop up message will ask to confirm unload recipe and enter Ad Hoc Mode.

  • Page 102: History View

    Lighthouse Worldwide Solutions ApexZ Operators Manual History View History View displays the last 5 recorded data records. The user can customize up to 3 columns of data to be displayed on the History View. Home Screen in History View From the Home Screen...
  • Page 103 Lighthouse Worldwide Solutions ApexZ Operators Manual Select Count, Warning or Alarm to display in the column. Select Cumulative or Differential Raw or Normalized with Units: ft 248083466-1 R3...

  • Page 104: Graph View

    Lighthouse Worldwide Solutions ApexZ Operators Manual Graph View Graph View displays the last five recorded samples on a line graph. From Graph View Graph View Screen From the Home Screen Press View Options button Press Graph View button Press the gear button to display the Graph View Settings Screen.

  • Page 105: Environmental View

    Lighthouse Worldwide Solutions ApexZ Operators Manual Environmental View ApexZ can support up to 2 environmental sensors and will record environmental data along with particle counts. Environmental data for the currently running sample can be viewed on the View Options Environmental View. Connect a Temperature / Humidity probe to ApexZ and then enable the Temperature and Relative Humidity Settings.
  • Page 106 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 107: Data Screen

    Lighthouse Worldwide Solutions ApexZ Operators Manual Data Screen Scroll data records The ApexZ can store up to 10,000 sample data records and display them via the Data Screen. By default data for the first channel, first environmental sensor, first alert, and first fault will be displayed.

  • Page 108: Data Columns

    Lighthouse Worldwide Solutions ApexZ Operators Manual Data Columns Data columns can be expanded by pressing the arrow button to the right of the column heading. Data Screen Timestamp Channels Analogs Alerts Faults Data Screen scrolled right Data Columns continued Sample Time...

  • Page 109: Expand Data Columns

    Lighthouse Worldwide Solutions ApexZ Operators Manual Expand data columns Data Screen: Channels View Expanded Expand channel size columns Press the Channels right arrow button to expand the particle channel size columns. Press the left arrow button to collapse the Channels columns...
  • Page 110 Lighthouse Worldwide Solutions ApexZ Operators Manual Expanded Alerts status column view Alert columns expanded Press the Alerts right arrow button to expand the Alert columns: Alarm Warning Press the left arrow button to collapse the alert data columns. Expanded Fault status column view...

  • Page 111: Select Data Records

    Lighthouse Worldwide Solutions ApexZ Operators Manual Select data records Data Screen Select a single record To select a single data record on the Data Screen, press the data record and it will highlight blue to indicate it has been selected.

  • Page 112: Tag Data Records

    Lighthouse Worldwide Solutions ApexZ Operators Manual Tag data records Tags can be used to add batch names or numbers, short notes, or notations to a single data record or a group of selected data records. Data Screen Select Data Records to Tag Select a single data record or a group of data records .

  • Page 113: Export Data Records

    Lighthouse Worldwide Solutions ApexZ Operators Manual Export data records Data on the ApexZ can be output to the ApexZ printer or exported to a file on a connected network or local USB key. Data Screen Select Data Records to Export or Print Select a single data record or a group of data records.
  • Page 114 Lighthouse Worldwide Solutions ApexZ Operators Manual Select Export Channels Export Channel Screen Press the Channel button to display the channels enabled or disabled for the Export. The user may press any channel to disable or enable for the Export. Press the Export button to export.

  • Page 115: Select Data Records For Report

    Lighthouse Worldwide Solutions ApexZ Operators Manual Select data records for report Reports may be created from selecting specific data records from the Data Screen and then pressing the Create New Report button. The user will be asked to set report sample parameters and then create a new Report based on the selected data record samples.

  • Page 116: Select Report Parameters

    Lighthouse Worldwide Solutions ApexZ Operators Manual Select report parameters Sample Report Type Screen Sample Report Type Screen Press the Report Type button to select the Report Type. Press the Channel button to display the Report Channels Screen. Sample Report Channels Screen...

  • Page 117: Filter Data Records By Date And Time

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Date and Time Data Screen Select Filter Time Press the Time button to display the Filter Time Screen. Enter the start and end dates to filter data records. The ApexZ3 will display only the data from the Start date/time to the End date/time.

  • Page 118: Filter Data Records By Room

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Room Data Screen Select the Filter Room Tab Press the Room button to display the Filter Room Screen. Filter Room Screen Include Rooms in the Data Filter Press the red x button to...

  • Page 119: Filter Data Records By Recipe

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Recipe Data Screen Select the Filter Recipe Tab Press the Recipe button to display the Filter Recipe Screen. Filter Recipe Screen Include Recipes in the Data Filter Press the red x button to...

  • Page 120: Filter Data Records By Location

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Location Data Screen Select the Filter Location Tab Press the Location button to display the Filter Location Screen. Include Locations in the Data Filter Filter Location Screen To filter data records by...

  • Page 121: Filter Data Records By Tag

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Tag Data Screen Select the Filter Tag Tab Press the Tag button to display the Filter Tag Screen. Include Tags in the Data Filter Filter Tag Screen Press the red x button to change...

  • Page 122: Filter Data Records By Alert/Fault

    Lighthouse Worldwide Solutions ApexZ Operators Manual Filter data records by Alert/Fault Data Screen Select the Filter Alert/Fault Tab Press the Alert/Fault button to display the Filter Alert/Fault Screen. Include Alert/Faults in the Data Filter. Filter Data - Alert/Fault Screen Press the red x button to change...

  • Page 123: Delete All Data Records

    Lighthouse Worldwide Solutions ApexZ Operators Manual Delete all data records Data Screen 10,000 data records can be saved in the ApexZ database. After the 10,000 data record has been saved the database will wrap and the next sample data record will overwrite the oldest data record.
  • Page 124 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 125: Reports

    Lighthouse Worldwide Solutions ApexZ Operators Manual Reports Report Screen Reports Screen Selecting the Reports Screen. From the Home Screen select the Report icon button to display the Report screen. Expand Fault Result Columns. Press the Result Arrow button to expand or collapse the Fault Result columns Fault Result Columns.

  • Page 126: Report Screen Filters

    Lighthouse Worldwide Solutions ApexZ Operators Manual Report Screen Filters Filter by Created Date and Time Reports Screen From the Reports Screen press the Created button to go to the Filter Created Screen Filter Created Screen Select the Start Date button and select a Filter Start Date.
  • Page 127 Lighthouse Worldwide Solutions ApexZ Operators Manual Filter by Report Type To filter by Report Type press and include the report type button for that report type. Multiple report type filters may be included in the filter set. Included Not Included Press the Save button to apply the filters and return to the Reports Screen.

  • Page 128: Deleting A Report

    Lighthouse Worldwide Solutions ApexZ Operators Manual Deleting a Report Deleting a Report Select the report to delete and that report line will highlight in blue indicating it has been selected. Press the Delete Report Button to delete the highlighted report.

  • Page 129: Audit Trail

    Lighthouse Worldwide Solutions ApexZ Operators Manual Audit Trail The Audit Trail Screen creates a timestamp and message for every user action and data record recorded on the ApexZ instrument. Every time a sample is recorded or a user changes a current setting or modifies a configuration parameter;...
  • Page 130 Lighthouse Worldwide Solutions ApexZ Operators Manual 248083466-1 R3...

  • Page 131: Calibration

    Lighthouse Worldwide Solutions ApexZ Operators Manual Calibration Calibration – Contact Authorized Facility ApexZ3 is factory calibrated to 1 CFM. ApexZ50 is factory calibrated to 100 LPM. Contact a factory authorized facility to calibrate ApexZ. Calibration – Due Date To display calibration due date, see Section: Instruments / About.

  • Page 132: Trouble Shooting

    Lighthouse Worldwide Solutions ApexZ Operators Manual Trouble Shooting Printer: Printer paper not advancing while printing could be the printer door is not closed. If the printer door is not closed then the paper will not advance but the printer will continue to print.

  • Page 133: Clean And Disinfect

    To minimize the chance of electric shock, turn off and disconnect the power adapter during sterilization. Do not submerge ApexZ in any liquids. Do not spray disinfectant solution directly into ApexZ enclosure. Do not use gases to disinfect ApexZ. Lighthouse will VOID the warranty if an unsuitable disinfectant solution damages the ApexZ instrument. 248083466-1 R3...

  • Page 134: Terminology

    Lighthouse Worldwide Solutions ApexZ Operators Manual Terminology Active Button: Button has a grey background color indicating the button is active and will respond when pressed. Button: Area on the touch screen the user can press and ApexZ will accept input and commands.

  • Page 135: Appendix A: Limited Warranty

    Limitation of Warranties A. Lighthouse Worldwide Solutions (LWS) warrants that all equipment shall be free from defects in material and workmanship under normal use for a period of two years from date of shipment to Buyer. LWS does not warrant that operation of the software will be completely uninterrupted or error free or that all program errors will be corrected.
  • Page 136 Service and Support Tel. 1-800-945-5905 (USA Toll Free) Tel. 1-541-770-5905 (Outside of USA) techsupport@golighthouse.com www.golighthouse.com...

This manual is also suitable for:

Apexz3Apexz50

Table of Contents
