MSA M1 Operating Manual
Integrated personal alert safety system (pass)
Hide thumbs
Also See for M1:
- Operating manual (66 pages) ,
- Cleaning and disinfection manual (27 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for MSA M1
Summary of Contents for MSA M1

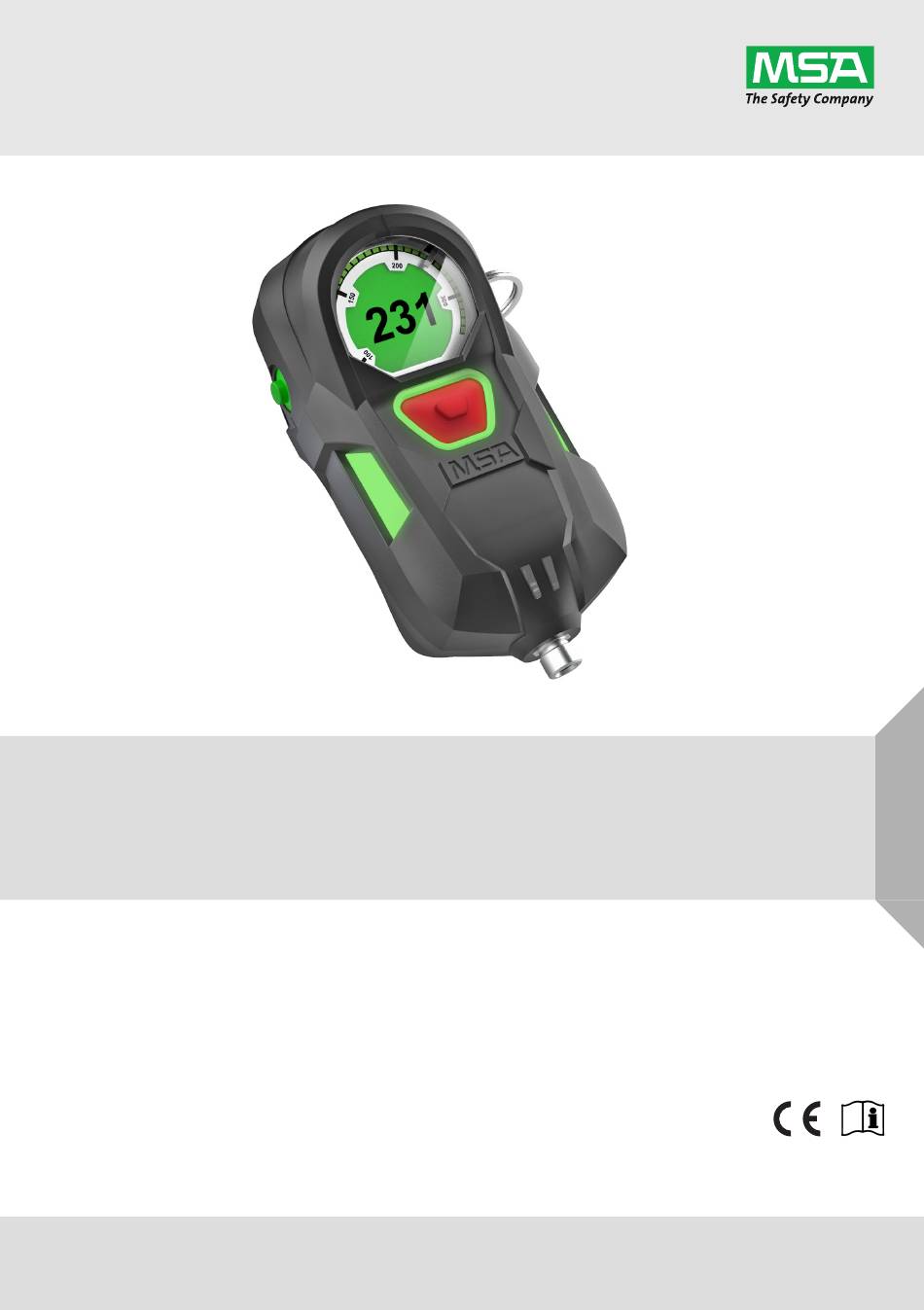

- Page 1 Operating Manual M1 Control Module Integrated Personal Alert Safety System (PASS) Order No.: 10205429/00 MSAsafety.com...
- Page 2 Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland © MSA 2019 All rights reserved...
-
Page 3: Table Of Contents
Ordering Information ......... 21 M1 Control Module... -
Page 4: Safety Regulations
Safety Regulations Correct Use The M1 Control Module, in this manual also referred to as device, is a personal monitoring unit that monitors the proper functioning of a respiratory protective device. It displays the current operating data of the respiratory protective device and signals danger conditions (visually and acoustically). -
Page 5: Description

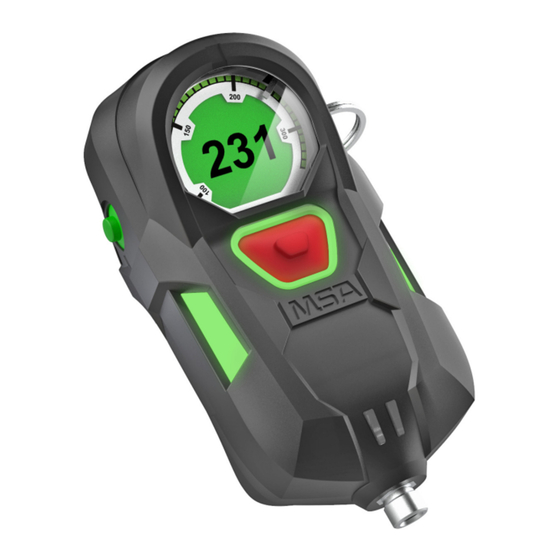

Battery state LEDs Rubber boot The M1 Control Module (see Fig. 1) is connected at the end of the high pressure gauge line of an appli- cable MSA SCBA. The device monitors the proper functioning of the respiratory protective device and signals danger conditions (visually and acoustically). -
Page 6: Installation
Installation Installation Installations can only be done by certified MSA technicians outside of hazardous areas. Before Use Before using the device, it is recommended to perform a short check to test for any leakage in the system. Open compressed air cylinder. -
Page 7: Operating Modes
By pressing one of the green mode buttons, the user can switch between the pressure level and the remaining time display. This mode can be used in combination with MSA A2 Software to change device Service Mode settings and read out log memory. -
Page 8: Pressure Status Message
Low pressure threshold – Double beep (60 bar) repeated until confirmed, see section 4.8 "Confirming Alarms" These thresholds, except from the low pressure warning, can be changed using the MSA A2 Software in combination with a Bluetooth enabled PC. See MSA A2 Software for more details. -
Page 9: Display
Display is lighted yellow, 2nd threshold 2 Beep Buddy lights are blinking yellow every 6 sec Display is lighted red, Low pressure 2 Beep warning (≤ 60 bar) Buddy lights are blinking red 1 Beep Battery warning Bottom red repeatedly M1 Control Module... - Page 10 Freefall alarm Overhaul error alarm The thresholds, except from the low pressure warning, can be changed using the MSA A2 Software in combination with a Bluetooth enabled PC. See MSA A2 Software for more details. For confirmation of alarms see section 4.8 "Confirming Alarms".
-
Page 11: Confirming Alarms
Freefall alarm Press one of the mode buttons twice. Once an alarm has been confirmed, the device changes the main display view back to review main information in combination with a reminder symbol below the main information. M1 Control Module... -
Page 12: Battery Charging
Battery Charging Charging the Battery WARNING! Do not charge the battery in hazardous areas. Charge battery only with MSA approved charger. WARNING! The magnetic field of the battery charger can disturb pacemaker operation and result in serious injury or death. -
Page 13: Using A Safety Key
Reading out the Device using a Bluetooth enabled PC It is possible to read out the data from the M1 Control Module. Settings can be changed to a certain extent and copied back to the device. The device can be read out while the Service mode is active and a Bluetooth connection is enabled. - Page 14 Wait for the sensor warm-up phase to complete. Due to the device calibration and start up times, MSA recommends powering on the gas detector device first. Allow the gas detector to completely start up before moving on to the next step.
-
Page 15: Cleaning And Maintenance
4.9 "Battery Charging". Use approved batteries only. The operational time might vary depending on ambient conditions and usage. WARNING! Remove battery if device is stored for more than six months. Never change batteries in hazardous areas. M1 Control Module... - Page 16 Push U-clip completely into housing. Rubber Boot Exchange The rubber boot must be exchanged from authorized workshop personnel only. If the device is removed and reattached to the SCBA, the SCBA has to be tested following the SCBA testing guidelines. M1 Control Module...
-
Page 17: Troubleshooting
-30 °C to +60 °C Storage 0 °C to +40 °C Dimensions Length: 156 mm Width: 78 mm Height: 71 mm 350 g (without M1 Battery Pack) Weight 500 g (with M1 Battery Pack) Ingress protection IP66/67 Bluetooth BR/EDR/LE Operation frequency range 2402 MHz...2480 MHz... -
Page 18: Marking/Certification
MSA EUROPE GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona CH - Switzerland Fig. 2 Example for type label, M1 Control Module (device label may vary) M1 Battery Pack IECEx BVS 19.0048 Ex ia IIC T4 Ga BVS 19 ATEX E 053 II 1G Ex ia IIC T4 Ga -30°C ≤... -
Page 19: Certification
Marking, Certificates and Approvals according to the Directive 2014/34/EU (ATEX) and National Standards MSA Europe GmbH Manufacturer: Schlüsselstr. 12 CH - 8645 Rapperswil-Jona Product: M1 Control Module EU-Type BVS 19 ATEX E 053 Examination Certificate: EN IEC 60079-0: 2018, Standards: EN 60079-11: 2012... - Page 20 Marking/Certification Marking and Certificates according to IECEx MSA Europe GmbH Manufacturer: Schlüsselstr. 12 CH - 8645 Rapperswil-Jona Product: M1 Control Module IECEx-Type IECEx BVS 19.0048 Examination Certificate: IEC 60079-0: 2017 Standards: IEC 60079-11: 2011+Cor.:2012 Ex ia IIC T4 Ga Marking: -30 °C ...
-
Page 21: Ordering Information
M1 Control Module - UK telemetry 10198773 M1 Control Module - AUS telemetry 10198772 M1 Control Module - EU telemetry 10198771 M1 Control Module - TAG (5 pcs.) 10199149 M1 Control Module - Programming kit 10199150 M1 Replacement battery 10201874 M1 Battery U-clip (5 pcs.) - Page 22 For local MSA contacts, please visit us at MSAsafety.com...
