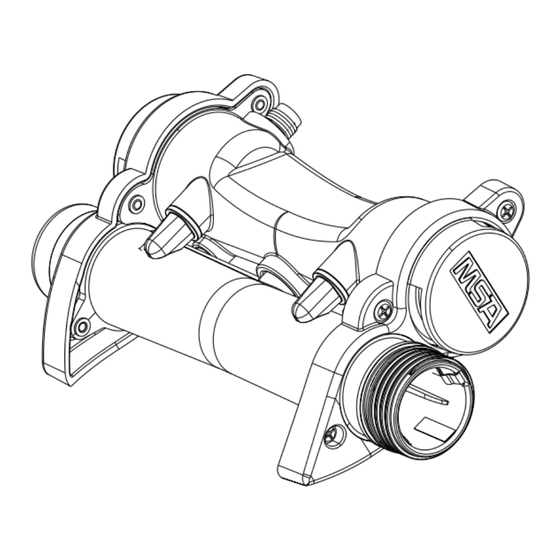

MSA FireHawk M7 Maintenance And Repair Manual
Power modules
Hide thumbs
Also See for FireHawk M7:
- Operation and instructions manual (56 pages) ,
- User manual (45 pages) ,
- Upgrade instructions (20 pages)
Advertisement
Quick Links
FireHawk
FireHawk M7XT
Power Modules
M INTEN NCE
For More Information, call 1-800-MSA-2222 or Visit Our Website at www.MSAsafety.com
CRANBERRY TWP., PENNSYLVANIA, U.S.A. 16066
TAL 1403 (L) Rev. 2
®
ND REP IR
© MSA 2014
M7 and
Prnt. Spec. 10000005389(I) Mat. 10093087
Doc. 10093087
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MSA FireHawk M7
Summary of Contents for MSA FireHawk M7
- Page 1 ® FireHawk M7XT Power Modules M INTEN NCE ND REP IR For More Information, call 1-800-MSA-2222 or Visit Our Website at www.MSAsafety.com CRANBERRY TWP., PENNSYLVANIA, U.S.A. 16066 TAL 1403 (L) Rev. 2 © MSA 2014 Prnt. Spec. 10000005389(I) Mat. 10093087...
- Page 2 FIREHAWK M7 POWER MODULE FireHawk M7 Power Module Replacement Kits and Parts List M7 Power Module w/o Telemetry 10089273 Cable O-Ring 10084774 Battery Tube O-Ring 10091448 10083243 Power Module Assembly 10083223 Shock Mounts (4 req’d.) 10086579 C-Size Batteries (4 req’d.)
- Page 3 Installing the Cylinder Stop Kit ..............4 When replacing either a FireHawk M7 or M7XT Control compatible with each other. Module or FireHawk M7 or M7XT Power Module, it is important to use the correct revision module. Each If non-compatible revisions are connected, an error module has a white identification label that indicates the code “ERR116,”...
- Page 4 10147420) for instructions. Use only Rayovac 814 or AL-C (Regular/Max or Ultrapro), Duracell MN1400, or Duracell Procell PC1400 alkaline batteries in the FireHawk M7 Power Module. Use of other batteries, or a combination of batteries from different manufacturers, will affect the performance of the unit and void the Intrinsic Safety Approval.
