PCI-DDA08/12 User's Guide
50
1
Connect to the board's
100-pin I/O connector.
Pin 1 is indicated by an
!
arrow
Details on the C100FF-x cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=104&pf_id=21.
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections. This document is available on our web site at www.mccdaq.com/signals/signals.pdf.

Field wiring, signal termination and conditioning

You can use the following screw terminal boards to terminate field signals and route them into the PCI-
DDA08/12 using the C100FF-x cable:
!
SCB-50 – 50 conductor, shielded signal connection/screw terminal box provides two independent 50-pin
connections. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168.
! CIO-TERM100 – 100-pin screw terminal board (daisy-chained 50-pin IDC connectors). Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281.
! CIO-MINI50 – 50-pin screw terminal board. Two boards are required. Details on this product are available
on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Cable is labeled
100
51
on the connector.
Cable is labeled
"Pins 51-100"

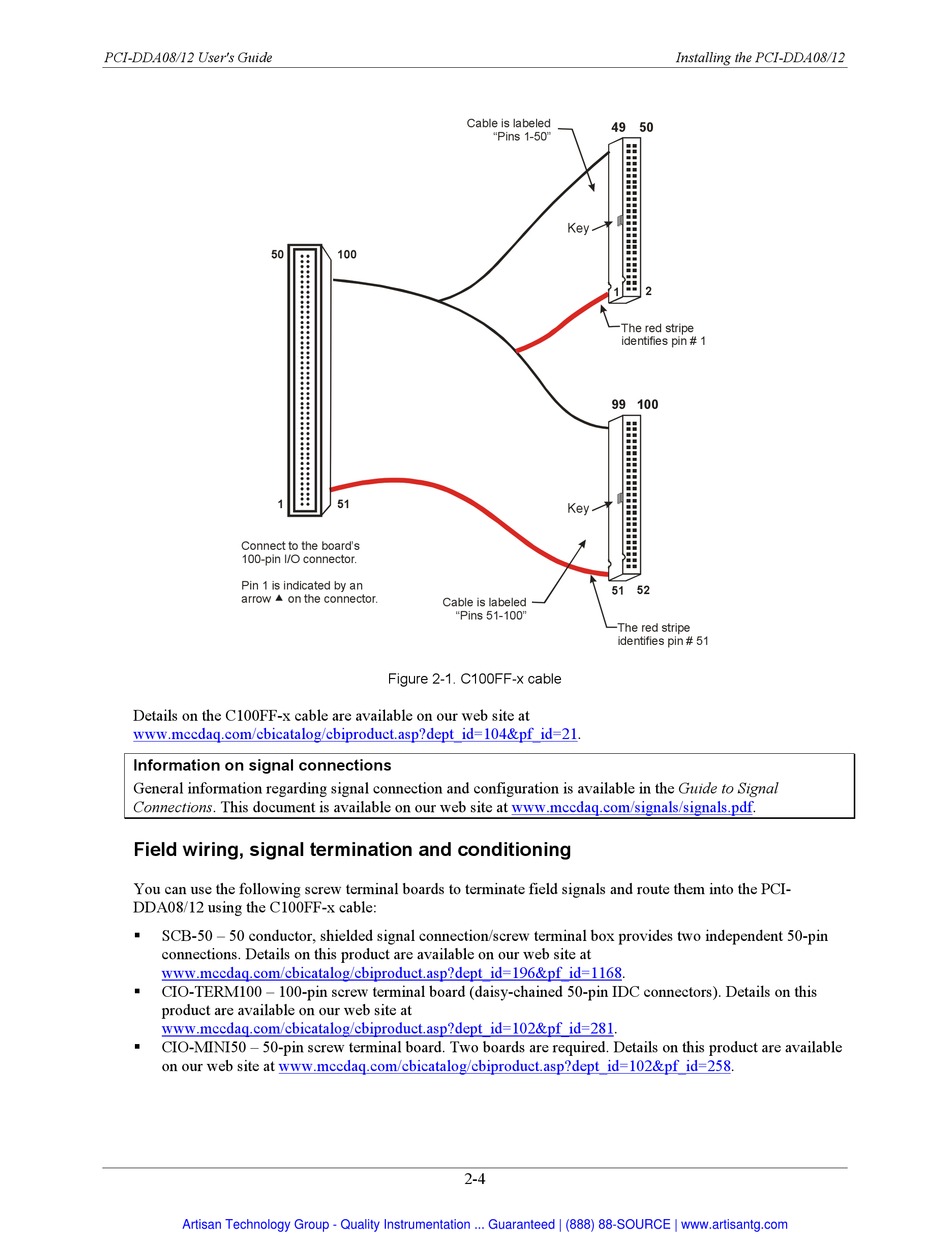

Figure 2-1. C100FF-x cable
2-4
49 50
"Pins 1-50"
Key
2
1
The red stripe
identifies pin # 1
99 100
Key
51 52
The red stripe
identifies pin # 51
Installing the PCI-DDA08/12
