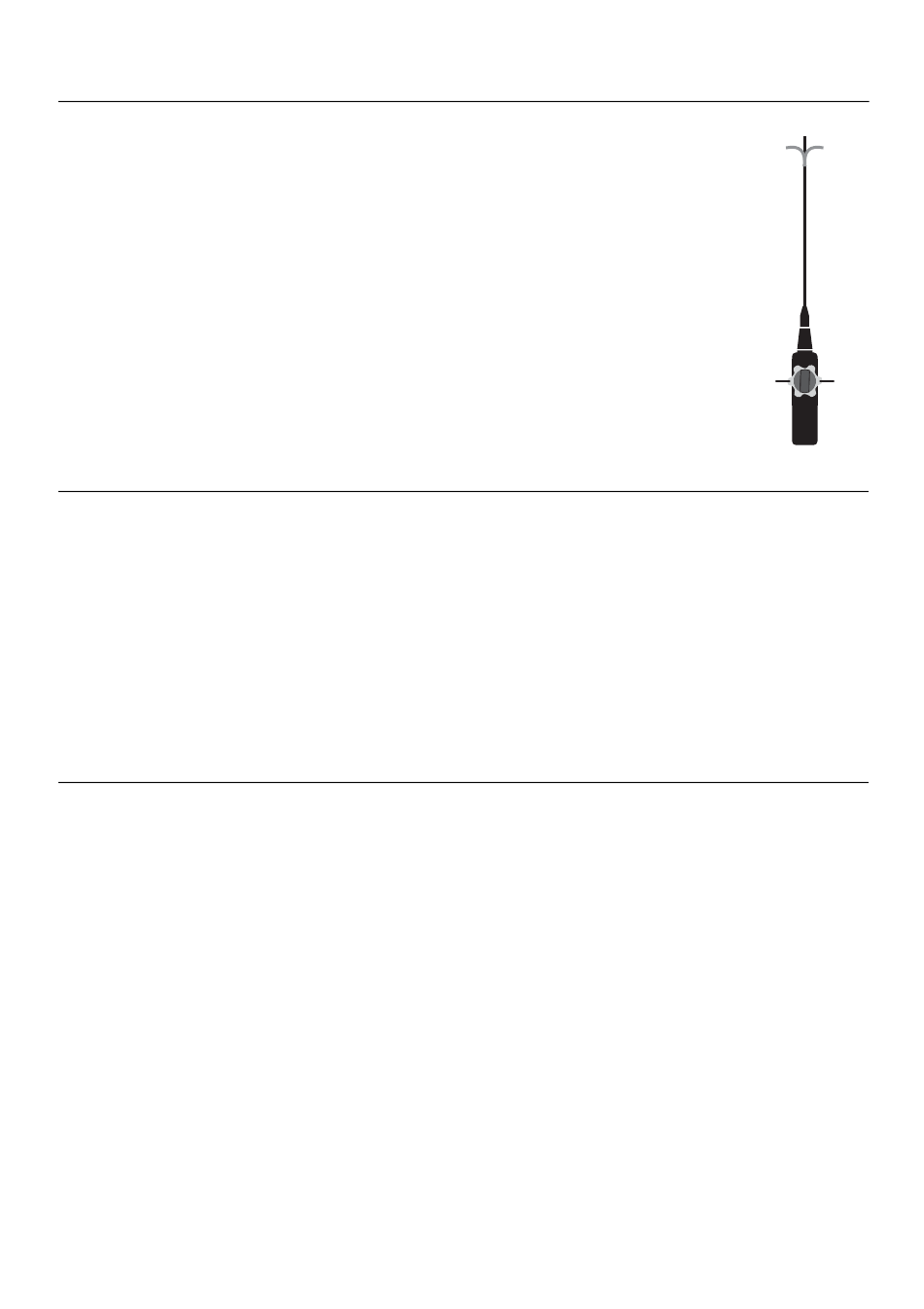

Articulation Setup and Orientation
The articulation direction and orientation may change if the probe is twisted and coiled during
use or when stored. To re‐orient the probe:
1. Place the extended probe on a flat surface
2. Set the tension "F" knob to the left or released position.
3. Set the articulation knob to the center position with the R Δ and Δ L
labels in the horizontal position.
4. Manually adjust the probe and camera to the zero degree position.
5. Rotate the articulation knob clockwise for a 90° bend.
6. If necessary, manually adjust the probe so that the camera lays flat on
the surface with a 90° articulation
7. Rotate the articulation knob counter‐clockwise and confirm proper
orientation.
Charging the Probe Battery
The probe battery can be charged in two ways:
1. Charge the probe with its own charging cable. The AC charger port and charging status LED
are located in the bottom access compartment. Connect the charger to the probe and
observe the color of the LED: Red indicates charging; Green indicates fully charged.
2. Charge the probe through the camera. Connect the camera to the probe via the extension
cable (bottom access compartment jack). Make sure that the charging cable is disconnected
from the probe and then connect a charging cable to the camera. Now while the camera is
charging, the probe will charge at the same time.
Note: The rechargeable battery is not user replaceable.
Specifications
Resolution
Length
Outer diameter (O.D.)
Battery
Focus distance
Housing
Field of View
Number of LEDs
Lamp Output
Operating Temperature
Storage Temperature
Warranty
nd Quality Products Online at:
640 x 480 pixels
2m (6.6')
6mm (0.24")
3.7V rechargeable Li‐Polymer
6cm to
Stainless Steel
60º
4
3500 Lux at 20mm (0.8")
‐20 to 70°C (‐4 to 158°F)
‐20 to 70°C (‐4 to 158°F)
1 year
