• The jacks will have to be bolted to the brackets using 1/2" diameter fasteners, min. grade 5.
• The jacks must be mounted to the chassis frame as close as allowable to the front and rear axles.

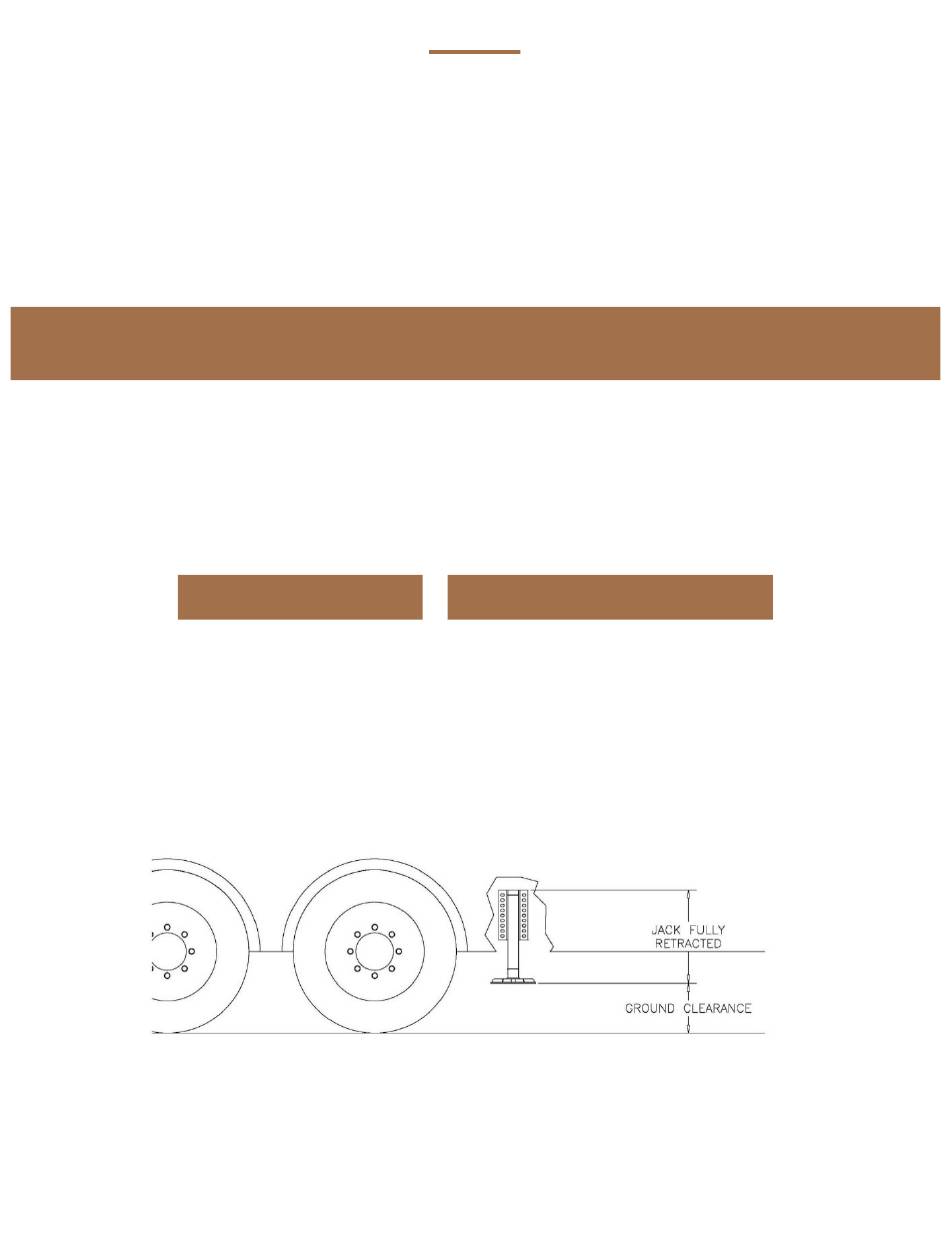

• The jacks must have a minimum of 6 inches from the ground with the foot pads no lower than
anything on the coach. Retract the jack fully, and determine the ground clearance by measuring to
the bottom of the jack foot.
• Make sure that the foot pads on the rear jacks are inside the angle of departure.
• The foot/pad must be mounted within range suggested (see chart below) for proper operation of
the system.
Due to variables with the different vehicles and jacks involved, the placement and process
(Bracket welding, Square Tube Welding) of the jack brackets likely will be on a case by case basis.
• For some they can be directly bolted to the existing mounting brackets or structure.
• For some the brackets may need to be welded to the frame, to which the jacks can be bolted.
• For some square tube jacks they may need to be welded directly to the frame or structure.
Reference Chart for Installing Jacks
SL-15
SL-16
SL-18
SL-24
If there are any questions, please call Equalizer Systems (800) 846-9659.
SL (round tube jacks)
8-10 inches
8-10 inches
10-12 inches
14-16 inches
Jacks
AJ/AM/CT/SM (square tube jacks)
Jack Travel
(Stroke)
16 inch
20 inch
24 inch
30 inch
36 inch
4
Rec. Ground
Clearance
8-10 inches
12-14 inches
14-16 inches
16-18 inches
18-20 inches
