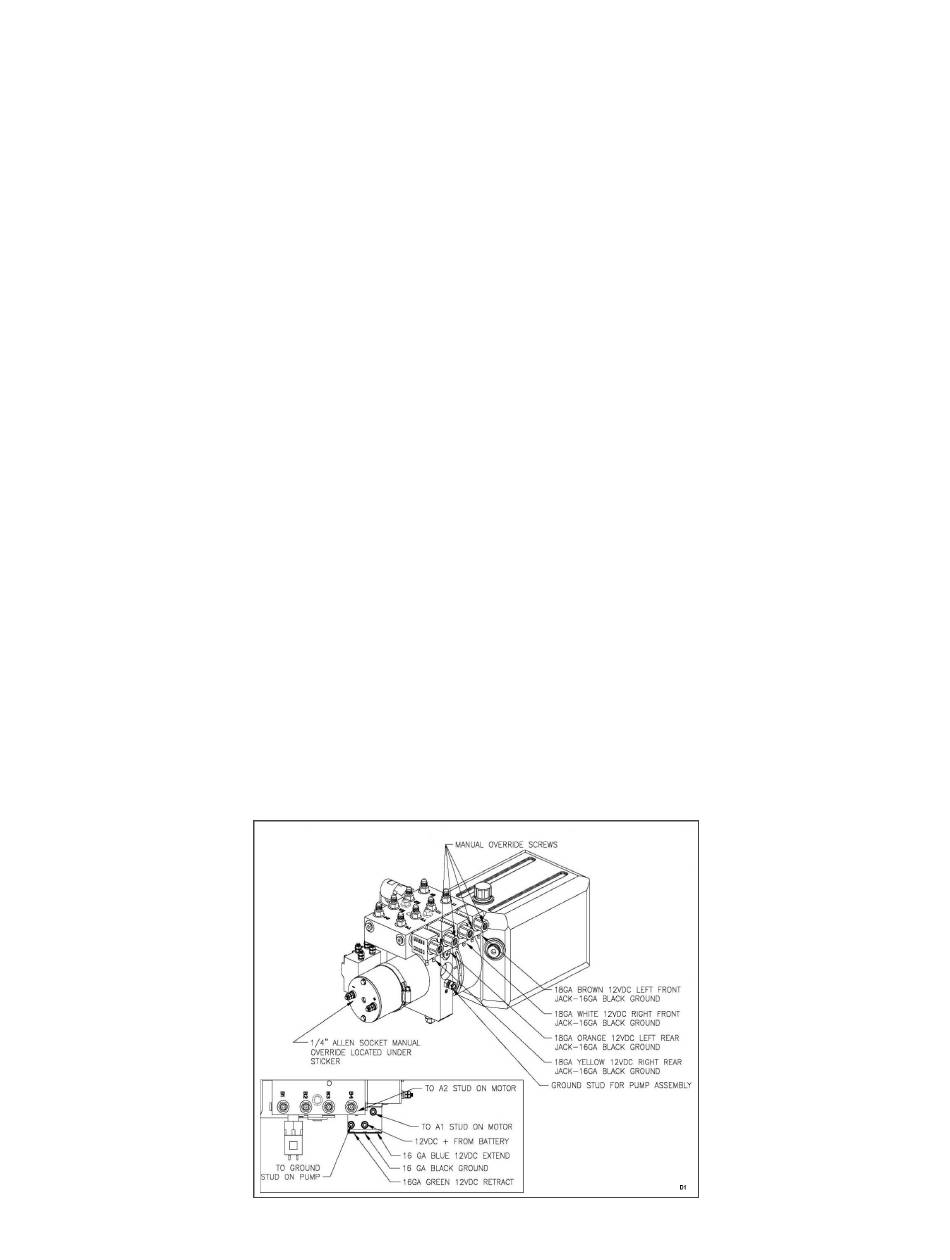

Power Connections for Pump # 3195KS
Attach a # 6 gauge wire (# 4 gauge if the run is over 12ft.) from the positive +12V terminal on the battery
to the + terminal on the motor solenoid. There will be a yellow fused wire on this terminal.
This supply may be fused at the source with 100-amp circuit breaker.
This +12v supply must be a dedicated and isolated circuit (not shared with other devices), and
must be constant, non-switched +12vdc.
Attach a # 6 gauge wire (# 4 gauge if the run is over 12ft.) between the negative -12v terminal on the
battery and the ground stud on the pump.
This is the preferred method of grounding. If grounding the pump to the chassis, the connection
must be sound, free of paint and not susceptible to corrosion.
The battery must be connected to the frame with # 4 gauge or larger wire. It is not acceptable to
allow the pump mounting bolts to be the sole grounding connection.
Power Connections for Pump # 2542KS
Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) from the positive +12V terminal on the battery
to the + terminal on the motor solenoid. There will be a yellow fused wire on this terminal.
This supply may be fused at the source with a 150-amp circuit breaker.
This +12v supply must be a dedicated and isolated circuit (not shared with other devices), and
must be constant, non-switched +12vdc.
Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) between the negative -12v terminal on the
battery and the ground stud on the pump.
This is the preferred method of grounding. If grounding the pump to the chassis, the connection
must be sound, free of paint and not susceptible to corrosion.
The battery must be connected to the frame with # 4 gauge or larger wire.
13
