Summary of Contents for Days EQUALIZER SYSTEMS EQ Smart-Level
- Page 1 EQ Smart-Level Motorized version Installation/Operation/Warranty Guide Effective April 2021 EQ021R3...
- Page 2 (800) 846-9659 equalizersystems.com EQ Smart-Level Motorized Version Installation/Operation/Warranty Guide Effective April 2021 Contents Required Tools & Parts Page 3 Installation Pages 3 - 18 Jacks Page 4 Foot Installation For SL Jack Leg Assemblies Pages 5 - 6 Pump/Fittings/Hoses Pages 7 - 8 Wire Harness/Install Control Panel/Pump Pages 9, 11 - 14 Chassis Interface Connection...
- Page 3 Required Tools and Parts Tools Required for Installation • Ratchet, sockets and wrench set • Wire cutters/crimpers • Electric drill/screw gun and bits • Welding equipment (if welding leg or bracket in place) Additional Items Required for Installation • Fasteners for mounting jacks to frame, minimum 1/2” diameter grade 5 •...
- Page 4 Jacks • The jacks will have to be bolted to the brackets using 1/2” diameter fasteners, min. grade 5. • The jacks must be mounted to the chassis frame as close as allowable to the front and rear axles. • The jacks must have a minimum of 6 inches from the ground with the foot pads no lower than anything on the coach.
- Page 5 Foot Installation for SL style jack Leg assemblies SL 18, SL 16 and SL 15 Leg Assemblies This assembly utilizes the 3/4” Flat Head Allen Bolt, 3/4” X 1 1/4” FHSCS - Equalizer part # 1383. Required for installation: • Brush and solvent to clean threads •...
- Page 6 SL 18, SL 16 & SL 15 SL 13 Leg Assembly This assembly uses the 3/4”-16 nylock jam nut. Required for installation: • 1/2” drive Impact wrench/gun • 1/2” drive X 1 1/16” socket (6 point preferred) Process 1. Check/verify that the threads on the end of the cylinder rod are clean and not damaged. Use the nylock nut to check that it will thread (start) on the end of the rod.
- Page 7 Pump Use the 3/8-16 threaded holes in the base of the pump assembly for mounting. When installing the pump on the coach the location should provide access to: • Route the hydraulic hoses to the manifold. Fill the reservoir and monitor the fill level. •...
- Page 8 Hose connections...
- Page 9 Wire harness Route the wire harness from the pump assembly to the area where the control panel is to be mounted. • The harness needs to be routed away from moving objects, sharp edges, and high heat sources. • Use wire ties and/or loom clamps to secure in place. •...
- Page 10 ChaSsis Interface Connections The below items are designed primarily for motorized vehicles. When installing on a trailer the Ignition disable is not required and the wiring may not be present in the supplied harness. • If the pink wire is present, just tape it back. •...

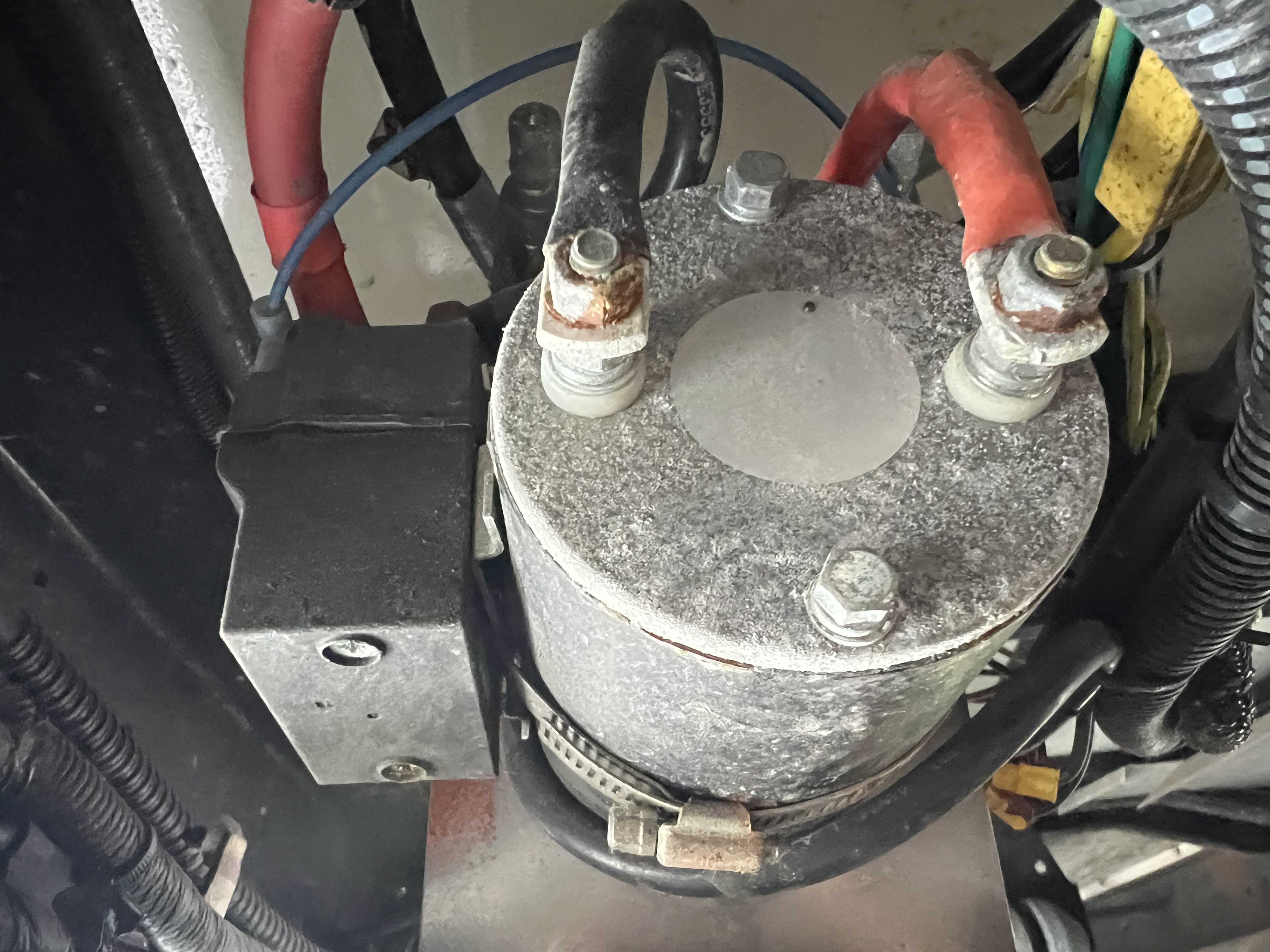

- Page 11 WirING Power Connections for Uni-Directional Motor Pump #’s 1551, 3218 Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) between the positive +12v terminal on the battery and the battery post at the motor solenoid on the pump. •...
- Page 12 Power Connections for Bi-Rotational Motor Pump #’s 2532, 2542 Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) between the positive +12v terminal on the battery and the lower terminal on either one of the two motor solenoids. These terminals will have a large gauge red cable connecting them together and one of them will have a small gauge fused yellow wire.
- Page 13 Power Connections for Pump # 3195KS Attach a # 6 gauge wire (# 4 gauge if the run is over 12ft.) from the positive +12V terminal on the battery to the + terminal on the motor solenoid. There will be a yellow fused wire on this terminal. •...
- Page 14 Note: All wire gauge sizes and breaker ratings noted are the recommended size. Larger gauge wiring and higher breaker rating may be used. There may be variances on specific systems supplied to OEM customers due to the exact makeup of the system. Additional information on Power Supply connections The below is just general information to be used as a guide.
- Page 15 Purging Uni-Directional Pump #’s 1551, 3218 The jacks are shipped in the fully retracted position. This procedure also outlines the steps taken if the jacks need to be purged of air following repairs, etc. Fill the reservoir with automatic transmission fluid. (Multi-purpose or any of the Dexron fluids) Retraction Purge: The retraction side of the cylinders is the first to be purged of air.
- Page 16 Purging Bi-Rotational Pump #’s 2532, 2542, 2542KS, 3195KS This procedure must be performed with the initial installation & running of the hydraulic system and following installation of the pump assembly and jack(s). This procedure applies only to systems that are equipped with the bi-rotational pump. All electrical and hose connections must be completed before the purging process.
- Page 17 EQ Smart-Level Control Panel Programing After the system is fully installed the control panel must be programed for operation. Failure to do this will result in a failed or improper Auto Level. There are two program settings that must be programed in the following order - 1) Orientation and 2) Null.
- Page 18 Step 2 - Setting the Null Null is the term used to indicate the levelness of the coach. A Null setting should have been performed by the installer. If the coach is not level following an attempt to Auto Level, you will need to level the coach and reset the null.
- Page 19 Operation Auto Level Operation Push and release the power button to engage power. The LED light next to the power button should be lit RED when power is on. You will need to have the ignition key in the off position to extend the jacks (most applications).
- Page 20 Helpful Hints Do not allow motion in the coach during the Auto Level operation (don’t move around in the • coach). This could cause the system to fault out or level/stabilize improperly. • The Auto-Level is a microprocessor-controlled system. Proper and adequate battery voltage and permanent chassis ground are essential.
- Page 21 EQ Smart-Level Bluetooth Operation • If the face of your keypad indicates that your controller is compatible with a Bluetooth device, download EQ Smart-Level in the Android or Apple App Store. When downloading the app, make sure your Bluetooth setting is turned on or the app will not connect to your coach. Once the app is downloaded please follow the instructions to level your coach.
- Page 22 Panel Indicator LED’s During typical operation, the LED’s on the bottom left hand corner of the keypad should NOT be illuminated. The only LED that should light is the OPERATING LED, which should flash during operation. ON Red when Power is ON Power LED OFF when power is OFF SLEEP MODE Flashes every 1 second...
- Page 23 Manual Override Operation The leveling system is equipped with the ability to override in the event of system failure. This will allow the jacks to be retracted so that the vehicle can be taken to a service/repair facility. The most common cause of system failure is weak/dead batteries, so it is best that the batteries be charged so that the jacks can be retracted in the normal manner.
- Page 24 If Equipped with Override Hex on Motor - Pump # 3218 • After the steps on page 23 on the valves, remove the black plastic cap from the end of the motor (Can use a small flat head screwdriver). • Place the drill with the 7/16”...
- Page 25 To Extend the Jack(s): • To extend the jack(s), follow all the above steps EXCEPT DO NOT Manually shift directional valve DV-1. • Following manual override operation, failure to return all valves to normal/original position may result in one or more jacks drifting/traveling down from their retracted (stowed) position. For cartridge valves, rotate the center 1/8”...
- Page 27 6. Claims will be denied if the date submitted is greater than 30 days from the repair date. 7. Prior authorization is required before parts may be sent back to Equalizer Systems. A Return Authorization Number is required for items to be accepted.
- Page 28 Replacement Parts: 1. Replacement parts are warranted under the same guidelines listed above for the remainder of the original warranty or 90 days, whichever is longer. Proof of warranty repair date and original vehicle purchase date are required. No additional warranties, expressed or implied, are authorized by Equalizer Systems.
