- Page 1 USER MANUAL V ERSION 03.03. 21 AN DROID 6.0 mPulse APP 2 . 2 .36...
- Page 2 Do not use this sauna to treat any health problems without consulting your health care practitioner. Sunlighten does not provide medical advice, education or treatment. Our information should not be relied on in making decisions about your health. Always consult your health care practitioner...
-
Page 3: Table Of Contents
CONTENTS PRE-INSTALLATION mPULSE 3-IN-1® SERIES SPECIFICATIONS PRE-INSTALLATION CHECKLIST ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS CONTROL SCREEN: INITIAL SETUP SAUNA SETTINGS WELLNESS PROGRAMS SCHEDULING SAUNA SESSIONS MEDIA APPS CHROMOTHERAPY WARM UP TIME & USAGE GUIDELINES SAUNA PROTOCOL HEALTH &SAFETY... -
Page 4: Pre-Installation
PRE-INSTALLATION mPulse 3-in-1® SERIES SPECIFICATION mPulse Aspire 110cm x 106cm x 200cm (W x L x H) DIMENSIONS 240V, 2160 watts. Dedicated 10A circuit and 10A power socket POWER protected by a 16A RCBO installed in the meter box. Minimum 1.5mm cable required for circuit; 2.5m cord exists from back left of base. -
Page 5: Pre-Installation Checklist
PRE-INSTALLATION PRE-INSTALLATION CHECKLIST Have a certified electrician install a dedicated outlet for the sauna. Failure to do so will affect the operating performance of the sauna. Remember your sauna should be assembled by 2 or more people. Do not place plumbing or plumbing fixtures in the sauna. Keep all liquids away from the heating panels and electronics. Install sauna on a level surface. Install sauna in an area that is dry and protected from the weather. -
Page 6: General Operating Instructions
THE SUNLIGHTEN APP VERSION 2.2.36 Welcome to the new Sunlighten App! This guide will take you through the registration and setup of your account and the most common and useful functions of your Android Control Pad in operating your mPulse sauna. - Page 7 GENERAL OPERATING INSTRUCTIONS:APP ACTIVATION SCREEN 1 On activating your Control Pad, you’ll be greeted by a screen with some basic controls at the bottom as illustrated below. Circled in green is your App Tray along the side. Decrease Go back Go to Swap app Increase...
- Page 8 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS ACTIVATION SCREEN 4 The first subsection of your settings you’ll see listed is Wi-Fi. Tap to navigate here and connect to your • wireless internet connection Tap the left-facing arrow to return to the • landing page. Tap the left-facing arrow once more to return •...
- Page 9 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SCREEN 7 Tap the phrase ‘Terms of Use’ to read them • Tap the box to agree to them • Tap Create Account to complete the process. • SCREEN 8 A verification code will be sent to the e-mail address you used for registration.
- Page 10 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS PROFILE SET UP SCREEN 10 Select your intended use from this screen, • either Residential or Commercial. SCREEN 11 You’ll be asked to provide some personalizing profile information for future customization use. Once you’ve completed this information entry, you’ll be asked if you’d like to update the time...
- Page 11 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SCREEN 13 Tap update model and an image of your • unit will appear. Tap the left-facing arrow to return to the • Home Screen. WELCOME SCREEN user icon SCREEN 14...
-
Page 12: Sauna Settings
ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 16 page is selected by tapping SAUNA SETTINGS Sauna Settings on the bottom-screen bar and is home to all of your sauna’s basic information and configuration. SCREEN 17 - 18.1 to 18.6... - Page 13 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS RELAXATION Far, mid, and near-infrared combination induces deep relaxation as it relieves muscle tension at a low,comfortable intensity promoting overall stress reduction. PAIN RELIEF A far and mid-infrared blend provides natural pain...
- Page 14 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 19 Creating a CUSTOM PROGRAM In addition to the pre-configured Wellness Pro- grams, you can also create your own Programs. Tap the plus icon to add a segment. • Craft your own session with dynamic features •...
- Page 15 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 22 The Customize Heaters screen allows you to determine the intensity of mid and far infrared on individually selected heaters during the duration of a program segment, represented by a slider bar that goes up to level 10.
-
Page 16: Scheduling Sauna Sessions
ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 24 SCHEDULE A SAUNA SESSION Tap on schedule icon in Sauna Settings to set • schedule your sauna session. SCREEN 25 Select the desired date from the calendar on •... - Page 17 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 27 Review your selection. • The sauna will be preheated and ready at • your selected start time. SCREEN 28 LIGHTING Tap to control your interior and exterior •...
- Page 18 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SAUNA SETTINGS SCREEN 29 Tap on the Support icon to access the • page. FREQUENTLY ASKED QUESTIONS (FAQs) SCREEN 30 Tap on the Question mark icon to see our FAQs •...
- Page 19 ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS SYSTEM UPDATE SCREEN 32-35 If not running the latest version of the system software, you may tap the user icon in the upper right corner of the screen: Select your user profile from the list of those • on the tablet.
-
Page 20: Media Apps
ANDROID CONTROL PAD & SUNLIGHTEN APP GENERAL OPERATING INSTRUCTIONS MEDIA AND APPLICATIONS SCREEN 36 APP REMOVAL From the App tray select the Gear icon • for Settings. Select the app to be removed from the list. • Tap uninstall. •... -
Page 22: Chromotherapy
OPERATING INSTRUCTIONS CHROMOTHERAPY Your mPulse sauna comes equipped with Chromotherapy lighting. Chromotherapy is the science of using colours to adjust body vibrations to frequencies that result in health and harmony. Each colour possesses frequencies of a specific vibration, and each vibration is related to different physical symptoms. An imbalance of any of those colours can manifest itself in physical and mental symptoms. Colour therapy works on various energy points to help balance your body via the full spectrum of visible light, each colour addressing a distinct need. - Page 23 OPERATING INSTRUCTIONS COLOUR GUIDE Activates & eliminates impurities from blood stream. Acts as a cleanser, strengthening the veins & arteries. Relaxes lymphatic system. Treats imflammation/urinary illness. Treats eye problems, cataracts, glaucoma, or nasal bleeds. Lubricates joints. Treats infections, stress & nervous tension. Stimulates muscle/skin cells, nerve &...
-
Page 24: Warm Up Time & Usage Guidelines
STEP 4: allow the heater to dissipate its heat. TIPS FOR OPTIMAL USE Sauna requires a dedicated circuit and outlet for optimal performance. • This should be installed by a certified electrician before assembling. Use our Tri-Nature Cleaning products for periodic cleaning. • Available at https://shop.sunlighten.com.au/collections/natural-sauna-cleaners Ensure you clean your floor heater every 6 months for residential use, and every • month for commercial use. To clean, remove floor grate and vacuum out heater area. -
Page 25: Sauna Protocol
Drink at least 750ml of water or electrolyte to rehydrate. • Dry off with Bamboo Carbon Towel. Cool down naturally or with a refreshing shower. • Every six months, clean wood and glass with our Tri-Nature Cleaning products. • Available at https://shop.sunlighten.com.au/collections/natural-sauna-cleaners... -
Page 26: Health &Safety
• Altering or tampering with any electrical connections on the power supply is • dangerous and will void the warranty. Do not attempt a repair without consulting Sunlighten first. Unauthorised repair • attempts will void the warranty. PRECAUTIONS If any of the below apply to you, consult your physician prior to sauna use:... - Page 27 OPERATING INSTRUCTIONS ALCOHOL & DRUG ABUSE Contrary to popular belief, it is not advisable to attempt to “sweat out” a hangover. Alcohol intoxication decreases a person’s judgment; therefore, he/she may not realize when the body has a negative reaction to high heat. Alcohol also increases the heart rate, which may be further increased by heat stress.
- Page 28 (30 days) and severe aortic stenosis. IN THE RARE EVENT THAT YOU EXPERIENCE PAIN OR DISCOMFORT, IMMEDIATELY DISCONTINUE SAUNA USE! For more information on saunas and contraindications, please contact Sunlighten Australia on 1800 786 544.
-
Page 29: Faqs
FAQS ASSEMBLY Can I assemble my sauna outdoors? Yes, if you protect it with a Sunlighten canvas, sauna cover. If you place your sauna The sauna covers outdoors without a Sunlighten cover, your warranty will be void. are custom made and may not arrive until after you receive your sauna. Do not install your sauna outdoors prior to receiving your cover. - Page 30 Are the EMF levels safe? Yes. Patented Solocarbon® panels are 100% quality controlled by Sunlighten to ensure the safety and effectiveness of each individual heater. What is the wattage, voltage, and amps of my sauna?
-
Page 31: Maintenance
Bamboo Carbon is anti-fungal and deodorizing, emits infrared rays and is highly absorbent. Use on the bench, floor and backrests for optimum comfort and cleanliness. Bamboo Carbon towels can be purchased at https://shop.sunlighten.com.au/collections/bamboo-carbon-towels MAINTENANCE What products should I use to clean my sauna? We recommend the Tri-Nature Cleaning products for use with your sauna which are available at out online store: https://shop.sunlighten.com.au/collections/natural-sauna-cleaners... - Page 32 FAQS INTERNAL TIMBER TREATMENT — OPTIONAL This treatment is highly recommended for and by . This lacquer COMMERCIAL CLIENTS treatment will stop sweat being absorbed into the internal timber so your sauna will remain in appearance and cut down on maintenance. Towels should still be AS NEW used on the bench.
- Page 33 Please avoid any treatment containing, benzene, or a high concentration of alcohol. However, if you detect major cracking or damage that jeopardizes the functionality of your sauna, please submit pictures to customerservice@sunlighten.com.au. Water-Resistant Cover The limited warranty covers the fabric becoming unserviceable because of loss of color or strength from normal usage and exposure conditions, including sunlight, mildew and atmospheric chemicals.
-
Page 34: Troubleshooting
TROUBLESHOOTING ISSUE SOLUTION Check all connections - see pg. 11. A newly assembled unit with a non- An electrical functioning electrical component (control panel, heater panels, lights,speakers) component is will most likely have a missed or loose connection. not working after assembling First, be sure to hold the Power button for 10 seconds to turn on. Confirm that Sauna does not... -
Page 35: Diagnostics
DIAGNOSTICS ERROR CODE CAUSE / SOLUTION The Control Panel cannot communicate with the Power Control Box. After unplugging your sauna, remake the connection of the computer cable (RS232) at the bottom of your front wall and the left side of the power box. If the issue persists you can check the connection at the back of the control panel. -
Page 36: Warranty
If the sauna is exposed a covering roof and a Sunlighten outdoor cover is required in order for the warranty to be maintained. The cover is designed to protect the sauna sides from light rain and sun only;... -
Page 37: Safety Certification
SAFETY CERTIFICATION These products have been tested, and fulfil the requirements of: IEC 60335-1:2010 A1:2013 A2:2016 with AS/NZS deviation AS/NZS 60335.1:2011 A1:2012 A2:2014 A3:2015 A4:2017 with IEC 60335-2-53-2011 A1:2017 with AS/NZS deviation AS/NZS 60335.2.53.2011 and found to comply with the standards’ requirements. - Page 38 NOTES...
- Page 39 NOTES...
- Page 40 USER MANUAL V ERSI O N 03.03. 21 A N D RO I D 6.0 A PP 2 . 2 . 36 359 Clarendon Street , South Melbourne VIC 3205 ph 1800 786 544 sunlighten.com.au...
Need help?
Do you have a question about the mPulse 3-in-1 Series and is the answer not in the manual?
Questions and answers

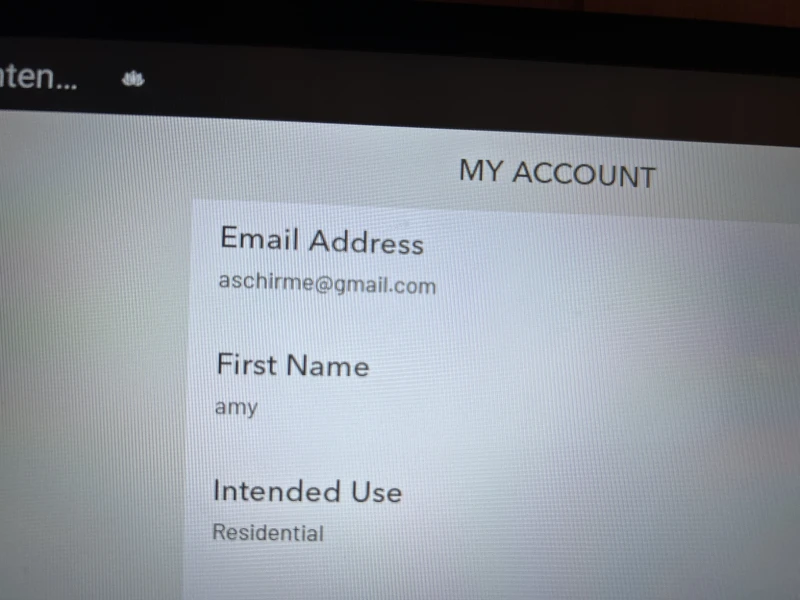

How do I delete all info for my account on my mpulse sauna and start over. I put in the wrong address associated with my account and now I can’t find where to open my apps or the App store
To delete your account information on the Sunlighten 3-in-1 Series mPulse sauna, follow these steps:
1. Go to the Health Tracking tab.
2. Select "Edit User."
3. Click the trash icon to remove the user.
This will delete the selected user profile and its associated data.
