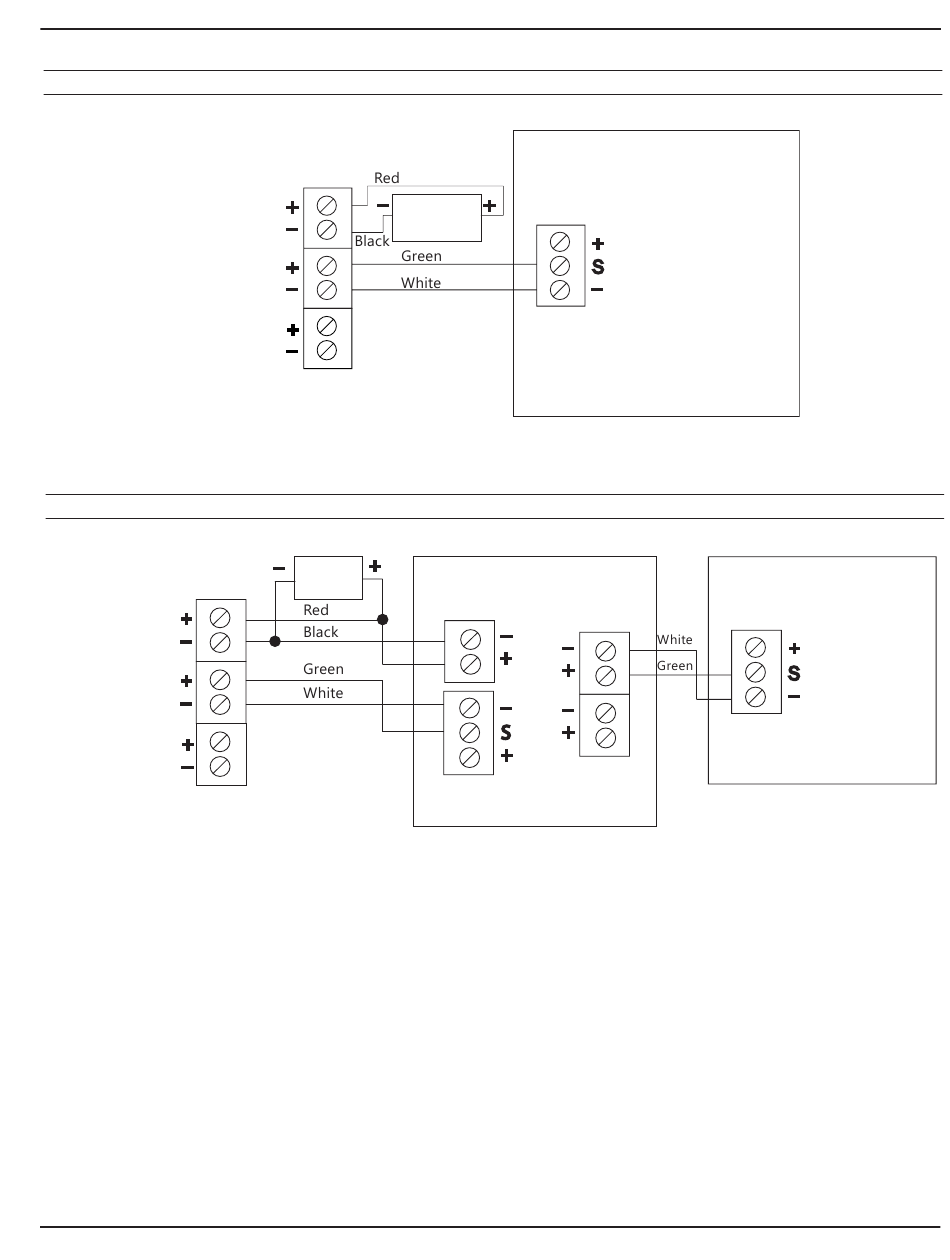

CONNECTIONS DIAGRAMS

DL76 Data Logger

Power
Forward Output
Reverse Output
(Option-15 only)
See Dual FT430/440 Diagram for an
example of bidirectional connections.
FT430/440 and DL76
EX - SERIES
+
Power
_
+
Forward Output
_
Reverse Output
+
(Option-15 only) _
See Dual 430/440 Diagram for an
example of bidirectional connections.
Seametrics • 253.872.0284
EX-SERIES
12-24 Vdc
Power
_
24 Vdc
+
Power
Power
Sensor
Sensor
Input
FT430/440*
(430 = Pass-Thru
440 = Scaled)
Pulse
Out 2
_
+
_
_
S
+
+
Pulse
Out 1
(Scaled)
Input
* Note on FT440
The FT440 has Scaled Pulse Output only –
6.5 pulses/second maximum. Pulse Output 1
or Pulse Output 2 can be used with DL76.
