Crestron UC-M130-Z Quick Start Manual

UC-M130-Z
Crestron Flex Tabletop UC Video Conference System for Zoom Rooms™ Software
The Crestron® Flex Tabletop UC Video Conference System for Zoom Rooms™ software (UC-M130-Z) delivers a powerful, professional solution for
knowledge workers who want the Zoom Rooms software experience in small to midsize meeting and conference rooms.
Minimum Requirements
• A video display, connected to the UC-ENGINE-SD-Z
• A Zoom Rooms account or activation code
• USB keyboard and mouse to configure the system*
• HDMI® cable to connect an HDMI source*
* Crestron recommends using Crestron cables only. For optimum performance, Crestron offers the UC-M-ACCY KIT which includes the
required hookup cables and a wireless keyboard with integrated touchpad.
Check the Boxes
Bracket Assembly Box
- UC-BRKT-100-Z-SD-ASSY
- Power Cord
- Mounting Hardware
Accessory Box
CCS-UCA-MEM-USB
CCS-CAM-USB-F-100
(P/N 6509548)
(P/N 6506442)

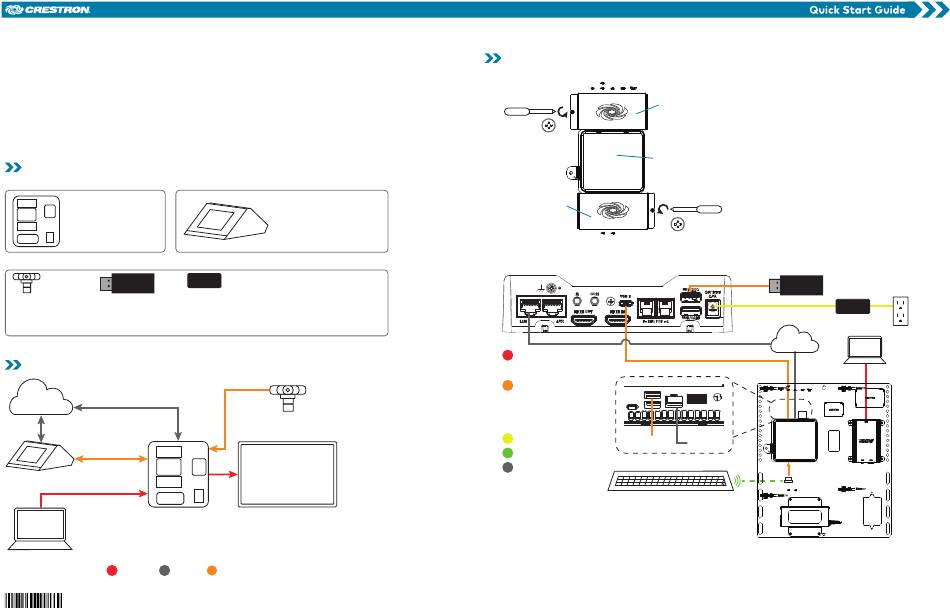

System Overview
LAN
CCS-UC-1
UC-BRKT-100-SD-Z-ASSY
Laptop
HDMI LAN
CCS-UC-1 Box
- CCS-UC-1
- Cable, USB 2.0
A - Micro B
6 ft (1.83 m) (P/N 2047803)
- Cable, CAT5e
RJ-45 Male - RJ-45 Male
12 ft (3.66 m) (P/N 2033988)
- Cable Management Hardware
- CBL-CAT5E-7 CAT5e cable
RJ-45-to-RJ-45, Black
7 ft (2.1 m) (P/N 6509924)
PW-2420RU
- CBL-USB-A-EXT-15 USB extension cable
(P/N 6500187)
Type A Male-to-Female
15 ft (4.57 m) (P/N 6508260)
- CBL-USBC-HD-9,
USB 3.0 to HDMI Converter cable
9 ft (2.7 m) (P/N 6510718)
CCS-CAM-USB-F-100
Display
USB
Connect the System
1. Remove connector covers to make connections.
Connector Cover
#1
UC-ENGINE-SD-Z
Connector Cover
2. Make connections to the TSW-1060 and UC-BRKT-100-SD-Z-ASSY as shown below.
CAUTION: The bracket assembly has cables and devices that are connected at the factory. DO NOT DISCONNECT ANY DEVICES OR CABLES
THAT ARE ALREADY CONNECTED.
CCS-UC-1
HDMI
CBL-HD-20 HDMI Cable
(sold separately)
USB
6 ft USB 2.0 A - Micro B plus
(optional use) 15 ft USB
extension cable
CCS-UCA-KB-USB Dongle
(sold separately)
Power
CCS-UC-1
RF Wireless
LAN
7 ft CBL-CAT5E-7 cable
12 ft CAT5e cable
CCS-UCA-KB-USB
#1
CCS-UCA-MEM-USB
PW-2420RU
LAN
Laptop
LAN
UC-BRKT-100-SD-Z-ASSY
