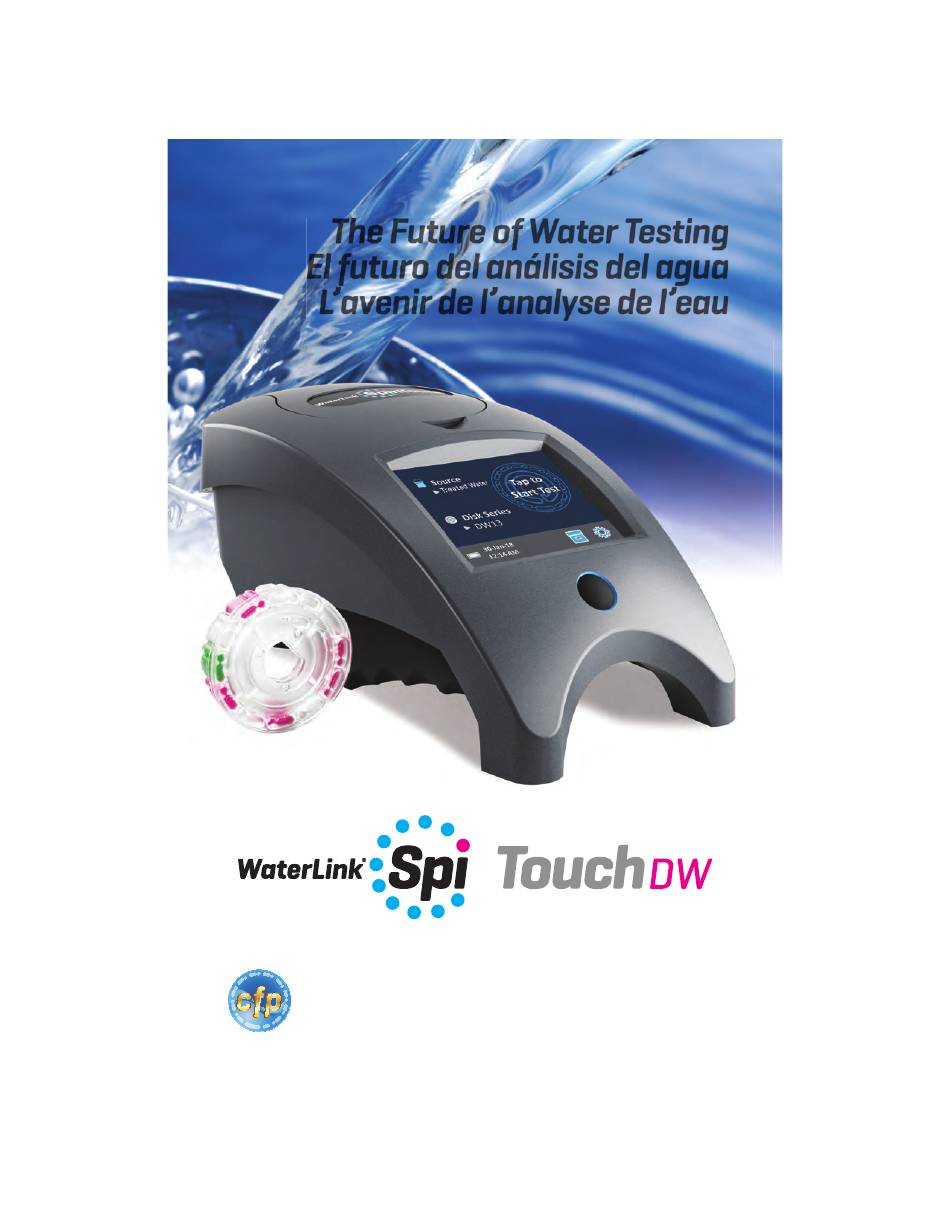

- Page 1 The Future of Water Testing El futuro del análisis del agua L’avenir de l’analyse de l’eau ® Centrifugal Fluidics Photometry Code / Código 3585 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Before First Use
PC via USB, the onboard touch screen controls will be disabled and operation of the meter is performed using the WaterLink ® Connect application. LaMotte off ers robust water analysis programs as well, such as WaterLink ® GlobalTestSupply www. -
Page 3: Connecting Via Bluetooth
Spin Touch is capable of connecting to a Bluetooth enabled device, such as a phone or tablet. The Spin Touch is also compatible with a LaMotte Bluetooth Printer [Code 5-0066]. Other Bluetooth printers are not supported. Transferring results over Bluetooth to a mobile device requires that a mobile app is installed on the device and an active account for the associated software program. - Page 4 The disk should be handled by the edges. 6. Disks should be fi lled and used within 10 minutes. They cannot be fi lled ahead of time. For fi lling and troubleshooting tips go to: www.lamotte.com/spin GlobalTestSupply www. .com Find Quality Products Online at:...
-
Page 5: General Operating Procedures
GENERAL OPERATING PROCEDURES METER When a fi lled disk is placed in the chamber and the lid is closed, the meter spins at high speed to distribute the sample to the test wells. Next the meter slows to maximize the pumping action of the stainless steel mixing beads as the reagents mix with the sample water. - Page 6 ¬ Do not place objects on the screen that will scratch or damage it. ¬ Avoid touching the screen with wet fi ngers. TESTING Source Tap to Treated Water Start Test Disk Series DW13 30-Jan-18 12:14 AM 1. Press and hold until the meter turns on. 2.
-
Page 7: Test Results
SAVE AND PRINT TEST RESULTS Test results can be saved and sent to the Mobile Bluetooth Printer (Code 5-0066). Test Results Test Time 05:30:06 30-Jan-2018 FCL 1.31 HARDgpg 29.2 TCL 1.31 T IRON 0.1 CCL 0.00 FERROUS 0.0 PH 7.8 FERRIC 0.1 ALK 100 Transfer... -
Page 8: Print Results
Logged results are viewed in Test History. Controls for viewing and managing single or multiple test records are located on the Test History screen. Tap the checkbox next to a test record to select it, then tap one of the buttons along the bottom to perform an action with the selected records. -
Page 9: Disk Storage
The disk is positioned in the chamber by aligning the D-shaped hole in the center of the disk over the D-shaped hub in the photometer chamber. The disk should be placed gently on the hub. There is no need to fi rmly press the disk down onto the hub. DISK STORAGE Disks are sensitive to moisture. - Page 10 will indicate when the battery charge is full, partial, low, empty or charging. The empty battery icon will fl ash to indicate that meter should be connected to AC power source. If the meter continues to be used at low battery power without connecting it an AC power source, the meter will go into an auto-shutdown mode.
-
Page 11: Other Settings
Other Settings Units allows the selection of units for the Hardness test results to be reported a gpg or ppm for the Drinking Water market. It also allows the selection of the Nitrate test results to be reported as ppm Nitrate ) or ppm Nitrate Nitrogen (NO -N). - Page 12 Meter is using the default blank Solution: Fill disk correctly (see on Test History due to under fi lled disk or air FILLING) screen bubble. Range Error Raw data out of range Contact Support Output Error Decreased light intensity. Clean lens (see CLEANING). Possibly dirty lens Follow Range Check Procedure.
-
Page 13: Alignment Procedure
Support.” will be displayed. 8. Tap to return to the Testing Menu and resume testing. email: softwaresupport@lamotte.com phone: 800-344-3100 option 3 | Mon-Fri 9am-5pm EST HELPFUL HINTS ¬ Do not touch top or bottom of disk. Handle disk by the edge. -
Page 14: Ranges And Specifications
¬ Empty syringe of old sample before fi lling with next sample. ¬ Remove fi lled disk from meter after testing. Do not travel with fi lled disks in meter. They may leak. RANGES AND SPECIFICATIONS Test Factor Range Display Abbreviation Alkalinity, Total 0–250 ppm Chlorine, Free... - Page 15 Operation Humidity Range 0- 90 % RH, non-condensing Communication USB-C, Bluetooth low energy technology (BLE) Calibration Factory set, fi eld calibration via internet connection Firmware Internet updateable (New Test, New Test Calibrations, etc.) Software Android & iOS Apps, WaterLink® Solutions, WaterLink® Connect Power Requirements USB wall adapter, USB computer connection or internal lithium ion rechargeable battery...
-
Page 16: Accessories And Replacement Parts
ACCESSORIES AND REPLACEMENT PARTS Description Code ® ® WaterLink Spin Touch DW Meter Water Sample Bottle (30 mL) 0689 Syringe with tips (3) 1189-3 Syringe tips (3) 1189-TIP Cleaning Tissues 0669 Meter Check Disk (North American) 1705 Meter Check Disk (Europe) 1705-EU Universal Disk Cover 1719... -
Page 17: Maintenance
Should it be necessary to return the meter for repair or servicing, pack the meter carefully in a suitable container with adequate packing material. A return authorization number must be obtained from LaMotte Company by calling 800- 344-3100, ext. 3 (US only) or 410-778-3100, ext. 3, faxing 410-778-6394, or emailing softwaresupport@lamotte. -
Page 18: General Information
Safety Data Sheets (SDS) can be found at www.lamotte.com. Additional emergency information for all LaMotte reagents is available 24 hours a day from the National Poison Control Center at 1-800-222-1222 or by contacting the 24 hour emergency line for ChemTel at 1-800-255-3924 (USA, Canada, Puerto Rico). -
Page 19: Warranty
¬ Consult the dealer or an experienced radio/TV technician for help. WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 2 years from the date of shipment. If it should become necessary to return the instrument for service during or beyond the warranty period, contact our Technical Service Department at 1-800-344-3100 or 1-410-778-3100, ext.
