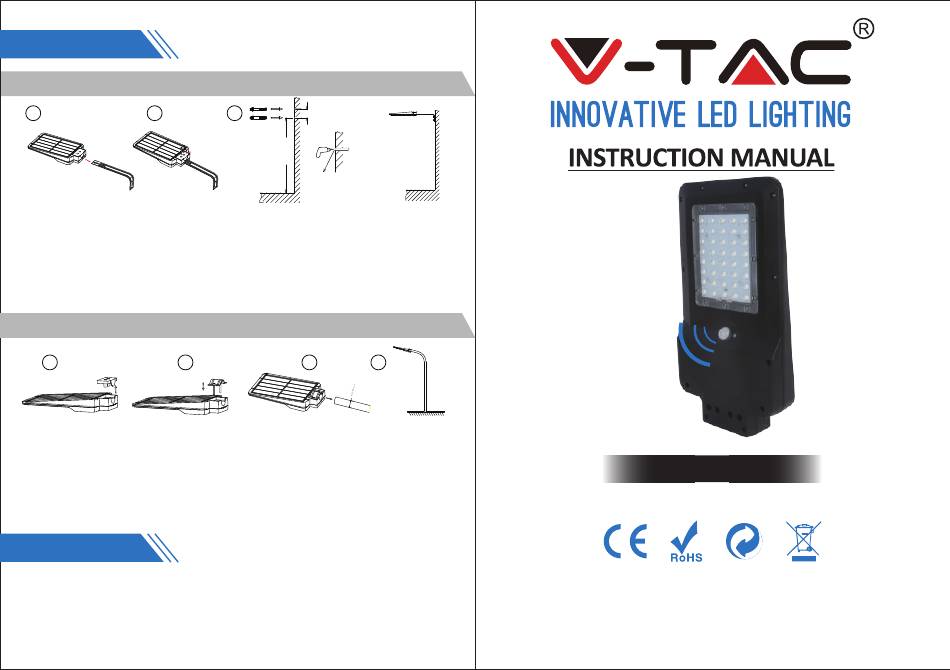

V-TAC VT-ST15 Instruction Manual

Installation
Installation A: Wall Mounted
1 2
1. Prepare lamp, accessories and tools well firstly.
2. Insert the L-shaped bracket into the socket. (Figure 1)
3. Use allen wrench to tighten the cap screws. (Figure 2)
4. According to demanded installation height, drill 2 holes of φ8mm with a
depth of at least 60mm on the wall, and fix the expansion screws into the
holes. Then use a wrench to fix the light fixture. (Figure 3)
Installation B: Lamp-post Mounted
1 2
1. Prepare lamp, accessories and tools well firstly.
2. Open the cover of lamp socket. (Figure 1)
3. Fix the lamp-post fixture onto the lamp socket (do not lock first). (Figure 2)
4. Set up the lamp onto the lamp-post. (Figure 3)
5. Adjust the lamp parallelly and lock the lamp-post fixture. (Figure 4)
Warning!
1. The lamp is equipped with an internal battery pack, which is replaceable.
If any need, please contact seller for correct new battery pack.
2. Non-professionals please do not disassemble the lamp.
3. Please do not dispose the battery with household garbage to avoid explosion.
3
52mm
Installation
Height: 3-5m
Depth of
Holing: 60mm
3 4
15W/1600LM
Model：VT-ST15
Please read and follow all instructions to operate.
Save this manual for future reference.
