5. See Figure 4-8. With connector installed,
tighten plastic fitting to secure Wi-Fi/Ether-
net unit until tight and device is secured to
end panel.
• Align antenna vertically.

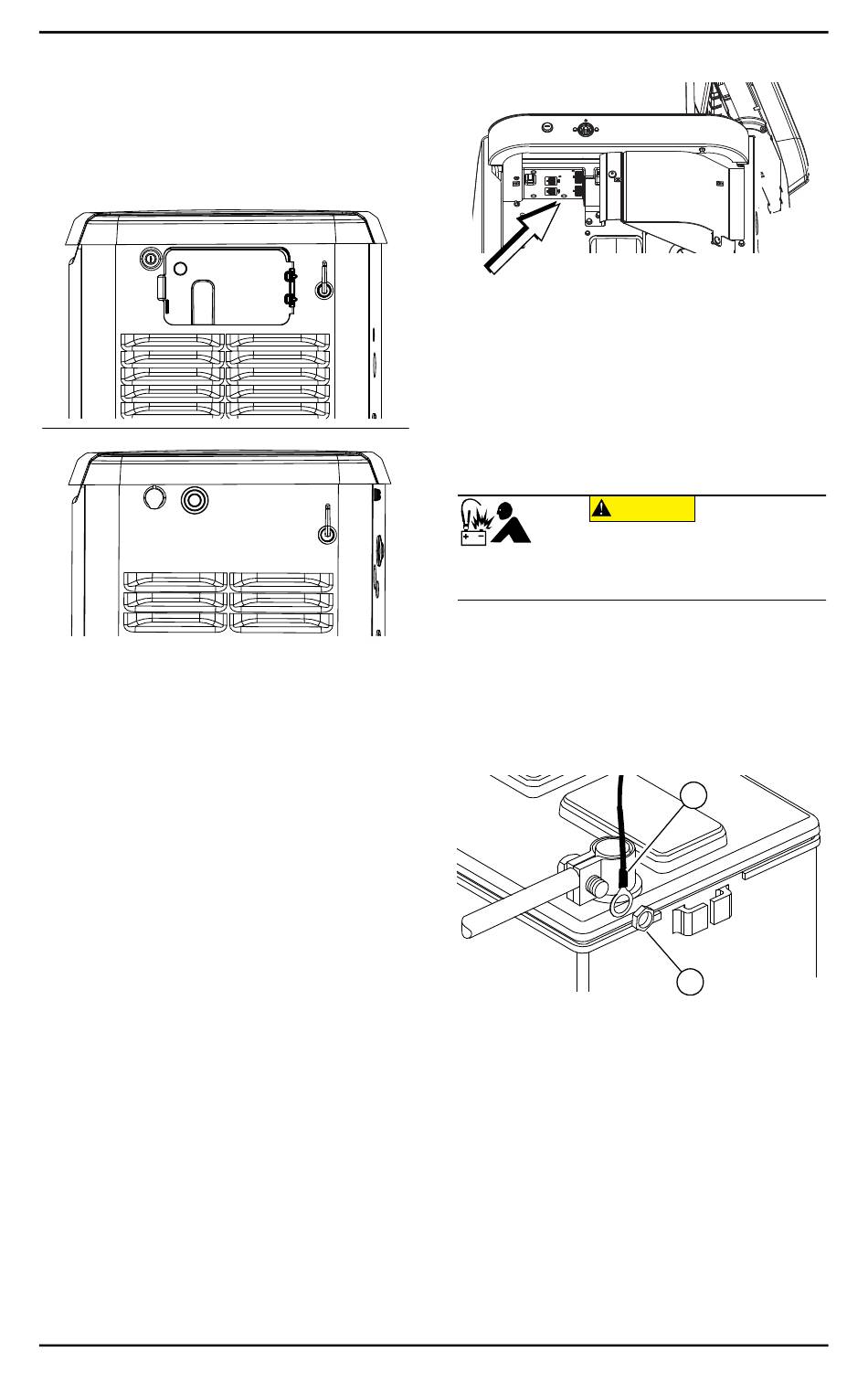

Figure 4-8. Mobile Link Wi-Fi/Ethernet
Device In Place
NOTE: Hold Mobile Link Wi-Fi/Ethernet
device firmly and tighten nut during installation
to avoid damage to unit wiring harness.
6. Route wire harness to back side of control-
ler. Wherever possible, bundle harness
with other wire looms to provide additional
support.
Continue Installation Process
• If this a new installation, proceed to Step 7.
• If this is a retrofit installation, proceed to
Complete Unit Installation (New and Retro-
fit).
7. (New installations only): Locate acces-
sory port. Accessory port is an eight-pin
connector on underside of controller.
• On models equipped with an external
breaker box, lift controller to gain
access to accessory plug location.
• See Figure 4-9. On models equipped
with an internal breaker mounted near
the controller, accessory port is visible
from battery compartment when end
panel is removed.
Installation and User's Manual for Mobile Link
Figure 4-9. Accessory Port (Internal
NOTE: If there is a decal labeled "Port 1" or
"Accessory Prt 1," remove decal to locate port.
8. Install eight pin connector harness into
open socket on controller.
NOTE: The connector will only fit one way. DO
NOT force.
Equipment damage. Do not make battery
connections in reverse. Doing so will result
in equipment damage.
9. For units equipped with Evolution 1.0
controllers or earlier: See
Loosen and remove nuts (A) from both
010612
positive (+) and negative (–) battery termi-
nal screws on battery cables. Slide har-
ness power wires (B) over battery terminal
screws and replace nuts. Tighten securely.
Figure 4-10. Attach Harness Power Wires
NOTE: Harness power wires consist of a
black negative (–) wire and a fused red posi-
tive (+) wire.
10. Connect battery cables. Connect positive
battery cable first, then negative battery
cable.
®
Installation and Operation
Breaker)
CAUTION
(000167a)
Figure
B
A
002733
4-10.
004942
11
