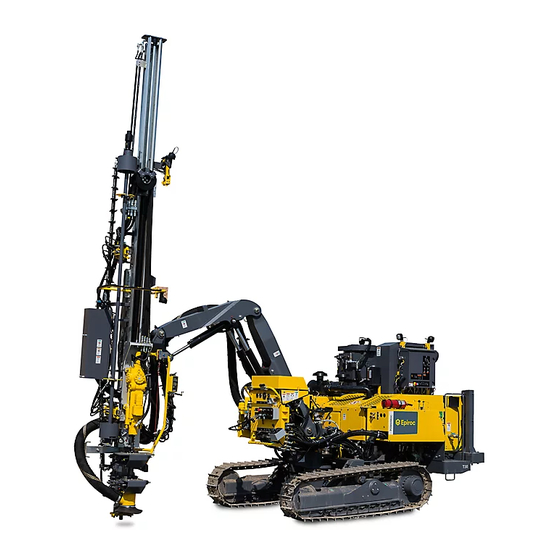

  • Page 1 Atlas Copco PowerROC T30 E Tier 4 Operator’s instructions PM No. 9852 3250 01 2013-10...
  • Page 2 © Copyright 2013, Atlas Copco Rock Drills AB, Sweden All product names in this publication are trademarks of Atlas Copco. Any unauthorized use or copying of the contents or any part thereof is prohibited. Illustrations and photos may show equipment with optional extras. No warranty is made regarding specifications or otherwise.
  • Page 3 Safety Safety Reference......................... 5...
  • Page 4 Safety...
  • Page 5 Safety Reference Note Always read the information in the Safety document before starting to use the rig or starting maintenance work. 1250 0099 89...
  • Page 6 Safety...

  • Page 7: Table Of Contents

    Electrical system ....................15 Hydraulic system ....................16 Air system......................18 Identification of the drill rig ................18 2. Technical data......................20 PowerROC T30 E....................20 Dimensions ......................22 Dimensions (-01) ....................22 Transport dimensions ................... 22 Service ranges ....................23 3.
  • Page 8 Operator’s instructions Controls ......................... 38 General......................38 Pressure gauges I ....................38 Pressure gauges II ..................... 40 Front control panel.................... 41 Electrical control box..................42 Control lever for rod handling ................44 Rear control panel ..................... 45 Diesel panel....................... 48 Other controls ......................
  • Page 9 Operator’s instructions Thread lubrication with brushes ............... 79 Function ....................... 79 Operation...................... 80 Adjusting...................... 81 Hole Quality System HQS 9.................. 81 General......................81 Specification ..................... 82 Assembly and basic setting................82 Application ....................... 83 Diagnostics ....................... 84 ROC-ANGIE ......................84 General......................
  • Page 10 Operator’s instructions...

  • Page 11: General

    See separate instructions for documentation on the rock drill/rotation unit, the diesel engine and certain other components. For other questions refer to the local Atlas Copco company office. Addresses and tel- ephone numbers are in the Maintenance instructions.

  • Page 12: Principal Components

    Operator’s instructions 1. General Principal components Figure: Principal components. Table: Principal components Position Component Position Component Feed cylinder Boom head Feeder Drill support Rock drill Track frame Front control panel Rear control panel Outer boom Power Pack Inner boom Operator platform...

  • Page 13: General System Description

    Operator’s instructions 1. General Position Component Position Component Fuel tank Diesel engine Electrical cabinet with control panel for Winch diesel engine Air filter Compressor Dust collector Note When the rig is equipped with rod handling (optional equipment) the front control panel is fitted on a separate swing arm.

  • Page 14: Wagon Frame With Track Frames

    Operator’s instructions 1. General Figure: General Description Position Component Starter relay Ignition relay K132 Safety relay Relay for hydraulic oil level Relay for compressor temperature Wagon frame with track frames The diesel engine, chassis, dust collector, hydraulic system, air system and boom sys- tem are mounted on the wagon frame.

  • Page 15: Power Pack

    Operator’s instructions 1. General The chassis frame comprises a frame with the operator's platform mounted on the left-hand side. Controls for tramming are installed on the operator's platform. The track frames are carried on journals in the wagon frame. When tramming on une- ven ground the drill rig is balanced by means of two compensating cylinders.

  • Page 16: Hydraulic System

    Operator’s instructions 1. General The emergency stop buttons/cables are connected in series with the diesel engine cut- out system. As soon as an emergency stop button/cable is activated, the diesel engine will be stopped immediately. Reset the emergency stop buttons before restarting the engine.
  • Page 17 Operator’s instructions 1. General 2. Traction motor 1. Traction motor left right 8. Rotation 10. Winch 9. DCT 3. Flow divider 20. Rotation 12. Positioning 11. Positioning No function regulator rear panel front panel 4. Rapid feed 13. Switch 13. Switch 5.

  • Page 18: Air System

    Pump configuration, see separate instructions Identification of the drill rig Data plates are affixed to the front part of the chassis frame and the right-hand side of the boom support. Table: Atlas Copco Rock Drills AB STOCKHOLM - SWEDEN Name Type Serial No.
  • Page 19 Operator’s instructions 1. General - CE marking if applicable...

  • Page 20: Technical Data

    Operator’s instructions 2. Technical data 2. Technical data PowerROC T30 E Weight (standard equipped without drill steel and optional equipment) PowerROC T30 E Weight with RHS and counterweights 11500 kg Winch 280 kg Performance Diesel engine, Cummins QSB 4.5 Tier 4...
  • Page 21 Operator’s instructions 2. Technical data Hydraulic systems Hydraulic oil cooler for max. ambient tempera- ture +50°C Electrical system Voltage 24 V Batteries Voltage 2 x 12 V/185 Ah Working lights Voltage 24 V/70W Alternator Voltage 28V/55Ah Air system Compressor: XA 70 Max.

  • Page 22: Dimensions

    Operator’s instructions 2. Technical data Dimensions Dimensions (-01) Transport dimensions Figure: Transport alternative 1 Figure: Transport alternative 2 Figure:...

  • Page 23: Service Ranges

    Operator’s instructions 2. Technical data Service ranges Figure:...
  • Page 24 Operator’s instructions 2. Technical data Figure:...
  • Page 25 Operator’s instructions 2. Technical data Figure: Figure:...
  • Page 26 Operator’s instructions 2. Technical data Figure:...

  • Page 27: Daily Checks

    Operator’s instructions 3. Daily checks 3. Daily checks Foreword This chapter provides instructions for daily inspection and maintenance to be carried out by the operator before each shift. Regarding weekly inspections ad other maintenance tasks, see separate instructions “ Maintenance schedules ". Extra safety check Safety DANGER...
  • Page 28 Operator’s instructions 3. Daily checks Before each shift starts an extra and thorough visual safety check should be carried out in order to detect: • Damage that could give rise to structural weakness or cracks. • Wear that could have the same consequences. •...

  • Page 29: Checklist

    Operator’s instructions 3. Daily checks Checklist Figure: Check points. Table: Checklist Position Component Position Component Cylinder mountings Track frames with attachments Feed wire with attachments Operator platform with attachments Rock drill with cradle Winch with brackets Feed holder with brackets Winch Boom Jack...

  • Page 30: Before Starting

    Operator’s instructions 3. Daily checks Position Component Position Component Boom bracket with pin All emergency stops Boom head Before Starting Safety WARNING • Danger of moving parts • Can cause serious personal injury • Set all levers and switches in NEUTRAL position before start-up preparations •...

  • Page 31: Hydraulic Oil

    Operator’s instructions 3. Daily checks Hydraulic oil Figure: Hydraulic oil reservoir Table: Hydraulic oil reservoir. Check point Inspection Instructions Hydraulic oil Oil level Top up as necessary. See Maintenance Instructions; Oils. Hydraulic oil Leakage Check leakage at the tank and pumps. Lubrication Figure: Lubricating oil tank.

  • Page 32: Engine Oil

    Operator’s instructions 3. Daily checks Engine oil Figure: Diesel engine. Table: Diesel engine. Check point Inspection Instructions Engine oil Oil level (A) Top up as necessary. See Maintenance Instructions; Oils. Engine oil Engine Check for leaks.

  • Page 33: Compressor Oil

    Operator’s instructions 3. Daily checks Compressor oil Figure: Compressor air tank. Table: Compressor. Check point Inspection Instructions Compressor oil Oil level Top up as necessary. See Maintenance Instructions; Oils. Functionality test after start Emergency stop Note The emergency stop buttons and the emergency stop bar must be checked before each shift and after tramming.
  • Page 34 Operator’s instructions 3. Daily checks Figure: Emergency stop Reset button and emergency stop cable on feeder Emergency stop button on front control panel Emergency stop button and reset button on diesel panel Emergency stop button on winch Table: Emergency stop. Check point Inspection Instructions...

  • Page 35: Function Test While Drilling

    Operator’s instructions 3. Daily checks Function test while drilling Limit sensors Figure: Limit sensors. Table: Limit sensors. Check point Inspection Instructions Limit position Function The cradle must stop level with the sensors (all) limit position sensor. Hydraulic hoses to rock drill Table: Hydraulic hoses.

  • Page 36: Rock Drill

    Operator’s instructions 3. Daily checks Rock drill Figure: Rock drill. Table: Rock drill. Check point Inspection Instructions Rock drill Visual check Make sure that oil trickles out between the front and the shank adapter. Diesel control panel Table: Diesel control panel. Check point Inspection Instructions...

  • Page 37: Drill Rig

    Operator’s instructions 3. Daily checks Drill rig Table: Drill rig. Check point Inspection Instructions Drill rig Visual check Look for any signs of leaks. -Hydraulic systems -Fuel system -Cooling system -Compressor Hydraulic oil filter Figure: Hydraulic oil filter and manometer. Table: Hydraulic oil filter.

  • Page 38: Control

    Operator’s instructions 4. Control 4. Control Controls General Table: Overview. Pressure gauges Front control panel Rear control panel Electrical cabinet with diesel panel Pressure gauges I Note The pressure gauges must be checked during drilling.
  • Page 39 Operator’s instructions 4. Control Figure: Pressure gauge panel Pump pressure, pump 1 (Percussion, traction motors, feeder and control pressure too high, and low speed to traction motor) Pump pressure, pump 2 (Rotation motor, panel selector and winch) Pump pressure, pump 3 (Dust collector motor, positioning cylinders and rod handling) Pump pressure, pump 4 (cooling fan) Hydraulic Oil Temp...

  • Page 40: Pressure Gauges Ii

    Operator’s instructions 4. Control Pressure gauges II x100kPa x100kPa Figure: Pressure gauge panel Regulation of high percussion pressure Regulation of low percussion pressure Feed pressure (only for COP 1640) Damper pressure (only for COP 1640)

  • Page 41: Front Control Panel

    Operator’s instructions 4. Control Front control panel x100kPa 12 13 14 15 16 17 18 19 Figure: Front control panel Table: Front control panel Pressure gauge, flushing air pressure Drill feed pressure gauge Percussion pressure gauge Rotation pressure gauge Pressure valve, low drill feed pressure LOWER (anticlockwise) RAISE (clockwise) Pressure valve, high drill feed pressure...

  • Page 42: Electrical Control Box

    Operator’s instructions 4. Control Rapid feed NEUTRAL DOWN Feed RETURN FEED NEUTRAL DRILL FEED Percussion mechanism HEATING (hydraulic oil) NEUTRAL PERCUSSION MECHANISM 10 Rotation BACKWARD ROTATION (clockwise) NEUTRAL DRILL ROTATION (anticlockwise) 11 Not used 12 Not used 13 Swing arm, front control panel (optional equipment with RAS) 14 Not used 15 Feed extension 16 Feed dump...
  • Page 43 Operator’s instructions 4. Control Figure: Electrical control box Table: Electrical control box Emergency stop Work lights Signal Horn Sleeve retainer, closing/opening Upper drill steel support, closing/opening (only with RAS) Switch, percussion pressure FULL PERCUSSION PRESSURE/DRILL FEED PRESSURE AUTOMATIC CONTROL OF PERCUSSION PRESSURE (normal drilling conditions) REDUCED PERCUSSION PRESSURE/DRILL FEED PRESSURE (used when collaring)

  • Page 44: Control Lever For Rod Handling

    Operator’s instructions 4. Control Lower drill steel support, closing/opening Control lever for rod handling The control lever is fitted on a separate box located on the right-hand side of the front control panel. Figure: Control lever for rod handling Table: Control lever for rod handling Lever positions Centre NEUTRAL POSITION/LOOSE GRIP...

  • Page 45: Rear Control Panel

    Operator’s instructions 4. Control Rear control panel Figure: Rear control panel, operating controls...
  • Page 46 Operator’s instructions 4. Control Table: Rear control panel, operating controls Knob, propulsion speed (changes volume to traction motors) clockwise=fast anticlockwise=slow Operating controls (left and right crawler tracks) FORWARD NEUTRAL REVERSE Winch controls WIND ON UNWIND Valve, winch pressure clockwise=pressure increase anticlockwise=pressure reduction Inclinometer Figure: Rear control panel, controls for track oscillation and positioning...
  • Page 47 Operator’s instructions 4. Control BOTH CYLINDERS CLOSED BOTH CYLINDERS OPEN BOTH CYLINDERS CLOSED LEFT CYLINDER OPEN Feed dump Feed tilt Boom extension Boom tilt Boom lift Jacks (optional equipment) Track oscillation...

  • Page 48: Diesel Panel

    Operator’s instructions 4. Control Diesel panel 14 15 16 17 a b c Figure: Diesel panel Note Pay attention to the diesel panel when in operation Table: EMC (Engine Monitoring System) VDO, tachometer with display. To scroll between the menus on the display, press button (2) on the VDO instrument.
  • Page 49 Operator’s instructions 4. Control Green indicator lamp for compressor. The lamp illuminates when the compressor is switched on. Red alarm lamp for compressor. High compressor temperature. Diesel engine is switched off. Yellow alarm lamp for compressor. Read the error message on the VDO instrument.
  • Page 50 Operator’s instructions 4. Control Symbol Description Symbol Description Tachometer Fuel level gauge Shows the current speed Shows the quantity of of the diesel engine. diesel available in the tank. The level is shown on the analogue instrument. A lamp starts to flash on the instrument when 75 litres remain.

  • Page 51: Other Controls

    Operator’s instructions 4. Control Other controls Electric cabinet Figure: Electric cabinet. Table: Hour meter for rock drill Potentiometer Lubricating oil pump (ECL) Potentiometer Screw-cutting oil (ECG) Voltage indicator Electrical socket 24V...

  • Page 52: Electrical Cabinet For Dust Collector

    Operator’s instructions 4. Control Electrical cabinet for dust collector Figure: Electrical cabinet for dust collector Table: Potentiometer Interval time Potentiometer Pulse time Potentiometer Total cleaning cycle...

  • Page 53: Operating

    Operator’s instructions 5. Operating 5. Operating Diesel engine starting N.B. Monitor pressure gauges and display for diesel engine when in operation. 1. Activate the drill rig's main power contactor (position a). Figure: Drill rig main power contactor. Note Note Always deactivate the drill rig's main power contactor after stopping the diesel engine.
  • Page 54 Operator’s instructions 5. Operating 2. Set the switch for Compressor charging/Positioning (13) to position (b) COM- PRESSOR OFF/POSITIONING REAR CONTROL PANEL. 14 15 16 17 a b c Figure: Diesel panel 3. Press the Reset button (19). 4. Turn the Ignition key (20) to PREHEATING position (c). •...

  • Page 55: Stopping The Diesel Engine

    Operator’s instructions 5. Operating Note Manual cold start: If cold start (optional equipment) is installed, the hydraulic pumps are disengaged when the engine is started. The hydraulic pumps are engaged when the engine speed reaches 1200 rpm. In very cold weather the engine may need to be warmed up for a longer time with disengaged pumps.
  • Page 56 Operator’s instructions 5. Operating 2. Set the switch for Compressor charging/Positioning (13) to position (b) COM- PRESSOR OFF/POSITIONING REAR CONTROL PANEL. 14 15 16 17 a b c Figure: Diesel panel 3. Set the Speed selection switch (16) in 1200 rpm(c) position. 4.
  • Page 57 Operator’s instructions 5. Operating 5. Deactivate the drill rig's main power contactor (position a). Figure: Drill rig main power contactor.

  • Page 58: Tramming

    Operator’s instructions 5. Operating Tramming WARNING • Risk of dumping • May cause severe personal injury and damage to property • Keep the feeder in tramming position and the boom inside the limits of the crawler tracks • Keep the track oscillation pedals open •...
  • Page 59 Operator’s instructions 5. Operating WARNING • Danger of accidental operation • May cause serious personal injury and damage to property • The operator must always have an overview of the drill rig and the remote control box • Always check that the controls are correctly adjusted before operating N.B.

  • Page 60: Checking After Tramming

    Operator’s instructions 5. Operating Checking after tramming All emergency stop cables and all emergency stops must be checked after tramming.

  • Page 61: Using The Winch When Tramming

    Operator’s instructions 5. Operating Using the winch when tramming WARNING • Risk from dumping and moving parts • May cause serious personal injury and damage to property • Ensure that unauthorised personnel are outside of the working area • Never use the winch with less than three turns remaining on the winch drum WARNING •...

  • Page 62: General

    Operator’s instructions 5. Operating WARNING • Danger of accidental operation • May cause serious personal injury and damage to property • The operator must always have an overview of the drill rig • Always check that the controls are correctly adjusted before operating General The winch can be used as an additional safety feature, either to provide extra thrust when tramming up or down a slippery slope, or as an extra brake when tramming...

  • Page 63: Preparation

    Operator’s instructions 5. Operating Preparation WARNING • Risk of dumping • May cause serious personal injury and damage to property • The angles for Downward/Upward/Lateral MUST NOT be combined with each other • Do not exceed the inclination angles, See technical data •...

  • Page 64: Tramming Up Inclines

    Operator’s instructions 5. Operating 1. Disengage the winch drum by pulling out and turning the disengagement lever (4) a quarter-turn to a locked position. 2. Pull out the wire and fasten the eye to the anchorage point. 3. Lift, turn back and press the disengagement lever. Check that drum is not disen- gaged by checking that the lever is fully depressed.

  • Page 65: Before Drilling

    Operator’s instructions 6. Before drilling 6. Before drilling Safety WARNING • May cause severe personal injury • Ensure that unauthorised personnel are not within the working area • Do not approach the area surrounding rod/pipe gripper or carousel • Always use lifting assistance when loading and unloading the carousel •...
  • Page 66 Operator’s instructions 6. Before drilling 8. Rapid feed the rock drill backwards until the drill rod is almost out of the upper drill steel support by moving the lever for rapid feed to UP position. Following which, reset the lever to NEUTRAL position. 9.

  • Page 67: Setting Up For Drilling

    Operator’s instructions 6. Before drilling Setting up for drilling WARNING • Risk of dumping • May cause severe personal injury and damage to property • Keep the track oscillation cylinders locked • Do not lower the hydraulic jack too much, the rear sections of the track frames must stand firmly against the ground •...
  • Page 68 Operator’s instructions 6. Before drilling Figure: Rear control panel 1. Unlock the track oscillation using the track oscillation lever (1). 2. Align the drill rig horizontally using the track oscillation lever (8). 3. Set the track oscillation lever to BOTH CYLINDERS CLOSED position. 4.

  • Page 69: Preparations For Drilling

    Operator’s instructions 6. Before drilling Preparations for drilling 1. Set the switch for Compressor charging/Positioning to COMPRESSOR ON/POSI- TIONING FRONT CONTROL PANEL position. 2. Set all controls for feed and drilling in NEUTRAL position. 3. Set the switch for Percussion pressure to REDUCED PERCUSSION PRESSURE/ DRILL FEED PRESSURE position.

  • Page 70: Drilling

    Operator’s instructions 7. Drilling 7. Drilling Start of drilling WARNING • Danger of moving and rotating parts • Can cause serious personal injury • Ensure that unauthorised personnel are outside of the working area • Stay away from the rotating drill rod 1.

  • Page 71: Checks During Drilling

    Operator’s instructions 7. Drilling 8. Continue drilling until the coupling sleeve has come half way into the drill steel support. Move the rotation and feed levers to NEUTRAL position at the same time. Checks during drilling Monitor drilling performance and pay particular attention to the points below: Should anything out of the ordinary occur, stop drilling and clear up the trouble or ask service personnel to investigate.

  • Page 72: Rod Adding

    Operator’s instructions 7. Drilling 3. Make sure that the switch for dust collector and flushing air is in ZERO position. Rod adding WARNING • Danger of accidental operation • May cause serious personal injury and damage to property • The operator must always control of the rig and the remote control box •...
  • Page 73 Operator’s instructions 7. Drilling 4. Move the rock drill up by setting the lever for rapid feed in UP position. Once the rock drill has reached its upper position, set the lever in NEUTRAL position. 5. Move in a new drill steel from the carousel to drill centre by moving the control lever for rod handling backwards.

  • Page 74: Continued Drilling

    Operator’s instructions 7. Drilling Continued drilling 1. Raise the cradle approx. 100mm by moving the Rotation/Feed lever to RETURN FEED position. 2. Percussion pressure must be low when starting drilling. Prepare by setting the switch for percussion pressure to REDUCED PERCUSSION PRESSURE posi- tion.

  • Page 75: Unthreading And Extracting With Rhs

    Operator’s instructions 7. Drilling 6. Unscrew the rod and put it to one side. 7. Lower the rock drill by holding the rapid feed lever in the DOWN position and then thread the shank adapter into the coupling sleeve that is fastened in the drill steel support by holding the rotation lever in DRILL ROTATION position.

  • Page 76: Changing Drill Bit

    Operator’s instructions 7. Drilling 12. Unscrew the shank adapter fully from the drill steel. Hold the rotation lever in BACKWARD ROTATION position. Move the lever back to NEUTRAL once the shank adapter has been unthreaded. 13. If a sleeve retainer is in use then it must now be opened. 14.

  • Page 77: Action In Case Of Drilling Problems

    Operator’s instructions 7. Drilling 3. Move the drill bit forward until it is pressed against the rock. 4. Switch on high percussion pressure for several seconds. 5. Switch off percussion pressure when the drill bit has loosened. If the percussion pressure is engaged for too long then the drill steel can detach from the shank adapter.

  • Page 78: Difficulties In Loosening The Coupling Sleeve

    Operator’s instructions 7. Drilling reduce rotation speed as much as possible without causing the drill string to rotate jerkily check the drill feed pressure and set it to the recommended value. Reduce percussion pressure to below the basic setting (5-10 bar). A reasonable reduction in penetration rate must be accepted.

  • Page 79: Options

    Operator’s instructions 8. Options 8. Options Thread lubrication Thread lubrication with brushes Function Drill steel threads are lubricated using two brushes (C) mounted on the RHS carousel lower bracket. Grease comes from a pump (B) located in a grease container (A) at the rear on the right-hand side of the rig.

  • Page 80: Operation

    Operator’s instructions 8. Options Figure: Brushes for thread lubrication. Operation During normal use, the system will operate automatically. The grease pump will then operate when the rod handling lever is in position to move a rod to the drill centre. This means that each time a rod is moved out from the carousel, a certain amount of grease will be pumped to the brushes that the rod threads subsequently pass.

  • Page 81: Adjusting

    The entire system can be turned off by stopping the supply of air with the cock (C). We recommend using Atlas Copco Secoroc thread grease A for lubrication of drill steel threads.

  • Page 82: Specification

    Operator’s instructions 8. Options Specification Power supply 12V - 28V DC Current usage 0.04A -20 - +50 °C Operating temperature Enclosing IP65 Angle measurement: Measurement range 2 * 20° Measurement accuracy 0.5° Assembly and basic setting Fit the instrument on the feeder so that it is easy to read the two displays and adjust the sight.

  • Page 83: Application

    Operator’s instructions 8. Options Align the boom straight forward. Then turn the sight so that it is parallel to the boom and drill rig. Reset the instrument by pressing the magnet to the // mark until both dis- plays are blank. Instrument is now ready for use.

  • Page 84: Diagnostics

    Operator’s instructions 8. Options Diagnostics Table: FAULT ACTION No angles are indicated and Check the voltage between 0 VCD and 12-28 there is no lighting in the VCD on the power supply cable's connection to displays the instrument. The voltage should be 12 to 28 V. If there is no voltage, check the fuse, the cable and the drill rig's electrical system.

  • Page 85: What Is Aiming

    Operator’s instructions 8. Options 3:1 = 18,4º 4:1 = 14,0º 5:1 = 11,3º 6:1 = 9,4º 7:1 = 8,1º 8:1 = 7,1º 9:1 = 6,3º 10:1 = 5,7º Figure: ROC-ANGIE What is aiming? If it were possible to align the drill rig in the same direction for each new hole it would not be necessary to aim ROC-ANGIE.

  • Page 86: Preparations For Assembly

    Operator’s instructions 8. Options Preparations for assembly 1. Set the feed in a vertical position with the aid of a spirit level. Adjust forward/rear- ward for a precise vertical reading. 2. Adjust left/right for a precise vertical reading. 3. Check that both left/right and forward/rearward are still vertical. Figure: Assembly 1.

  • Page 87: Adjust Roc-Angie To A Zero Reading

    Operator’s instructions 8. Options Adjust ROC-ANGIE to a zero reading 1. Loosen and retighten all bolts by hand. Look at the upper scale and adjust (a) the left/right bolts to an exact zero reading on the (b) upper scale. Tighten the left/ right bolts by hand.

  • Page 88: Installation

    Operator’s instructions 8. Options Installation 1. Choose an aiming point (the further away, the better). 2. Loosen the handle on the top of ROC-ANGIE. 3. Look through the aim and turn ROC-ANGIE around until the centre arrow in the aim is exactly in the middle of the tree and between the two outer arrows. If neces- sary, adjust the aim or move it to the other side by undoing the knob at the bottom of ROC-ANGIE.
  • Page 89 Operator’s instructions 8. Options Figure: Example 1 Bench Reference Point In the second example the aiming point is parallel with the bench. Which method to use? That will often depend on the nature of the terrain and the distance to the aiming point.

  • Page 90: Technical Data

    Operator’s instructions 8. Options Figure: Example 2 Stick in drill hole Bench Note The aiming point should be at a distance of at least 100 m. Technical data Measurement range 20° Precision 9.2° Weight, including bracket 5.0 kg Dimensions: Width 130 mm Height 230 mm...

  • Page 91: Electric Filler Pump

    Operator’s instructions 8. Options Electric filler pump Electric pump for filling fuel Figure: Electric filler pump The pump is used to fill fuel. 1. Make sure that the hose and the filter are clean. 2. Connect the attached hose to the fuel source. 3.
