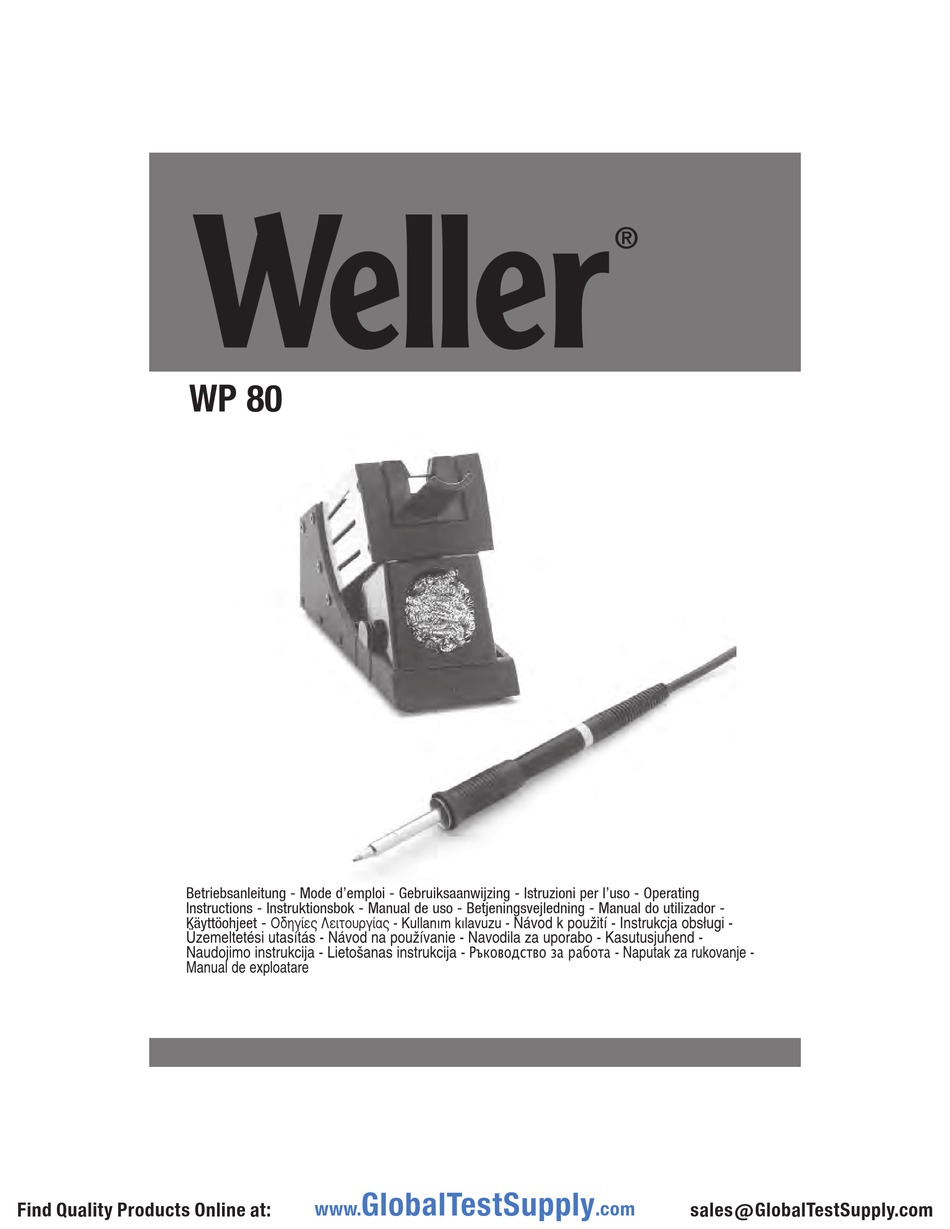

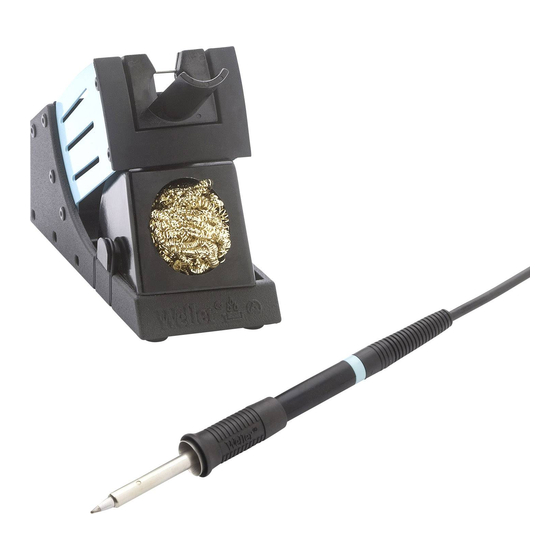

- Page 1 WP 80 Betriebsanleitung - Mode d’emploi - Gebruiksaanwijzing - Istruzioni per l’uso - Operating Instructions - Instruktionsbok - Manual de uso - Betjeningsvejledning - Manual do utilizador - Käyttöohjeet - √‰ËÁ›Â˜ §ÂÈÙÔ˘ÚÁ›·˜ - Kullan∂m k∂lavuzu - Návod k pouÏití - Instrukcja obs∏ugi - Üzemeltetési utasítás - Návod na pouÏívanie - Navodila za uporabo - Kasutusjuhend -...
- Page 2 Inhaltsverzeichnis Seite Indice Página 1. Achtung! 1. Atencion! 2. Beschreibung Technische Daten 2. Descripción Datos técnicos 3. Inbetriebnahme 3. Puesta en funcionamiento 4. Potentialausgleich 4. Compensación de potencial 5. Arbeitshinweise 5. Modo operativo 6. Zubehör 6. Accesorios Table des matières Page Indholdsfortegnelse Side...
- Page 3 1. Lötspitze (LT-Serie) 1. Soldering tip (LT series) 2. Spitzenhalter und Griffteil 2. Tip holder and grip area 3. Temperaturbeständige antistatische Silikonleitung 3. Temperature-resistant antistatic silicon cable 4 Verriegelbarer Anschlußstecker 4. Lockable connector plug 5. Hinteres Griffteil 5. Rear grip area 1.
-
Page 4: Installation
2. Description Keep the heating element and solderin tip heat transfer surfaces clean. The WP 80 soldering iron is characterised by fast and preci- se achievement of the soldering tip temperature. A particu- Anti-static plastics containing conducting fillers are used to larly powerful 80 W heating element guarantees excellent prevent static charge build-up. - Page 5 Soldering Tips LT- Spitzen für WP 80 Soldering Tips for WP 80 For more information about tip type series please visit Bestell-Nr. Modell Beschreibung Breite A Dicke B Länge C Order-No Model Description Width A Length B Length C T005 44 494 99 LT 1SC Meißelform...
- Page 6 Soldering Tips For more information about tip type series please visit Bestell-Nr. Modell Beschreibung Breite A Dicke B Länge C Order-No Model Description Width A Length B Length C T005 44 420 99 LT HX Meißelform gebogen 0,8 mm 0,4 mm 18,0 mm Chisel bent T005 44 443 00 LT ALX...
- Page 7 Soldering Tips LT- Spitzen für WP 80 Soldering Tips for WP 80 For more information about tip type series please visit Bestell-Nr. Modell Beschreibung Breite A Dicke B Länge C Order-No Model Description Width A Length B Length C T005 44 439 99 LT 4 Rundform abgeschrägt 45°...
- Page 8 Bestell-Nr. Beschreibung Order-No Description T005 87 448 45 Spitzenhülse kurz (40 mm) für WP 80 Barrel short (40 mm) for WP 80 T005 87 448 46 Spitzenhülse lang (55 mm) für WP 80 Barrel short (55 mm) for WP 80 GlobalTestSupply www.
- Page 9 Soldering Tips SMD Lötspitzen für WP 80 SMD Soldering Tips for WP 80 For more information about tip type series please visit Bestell-Nr. Modell Beschreibung Breite A Dicke B Länge C Order-No Model Description Width A Length B Length C T005 44 501 99 SMT01 für PAD-Reinigung...
- Page 10 Exploded Drawing GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
