AXIS Q17 Series
Additional settings

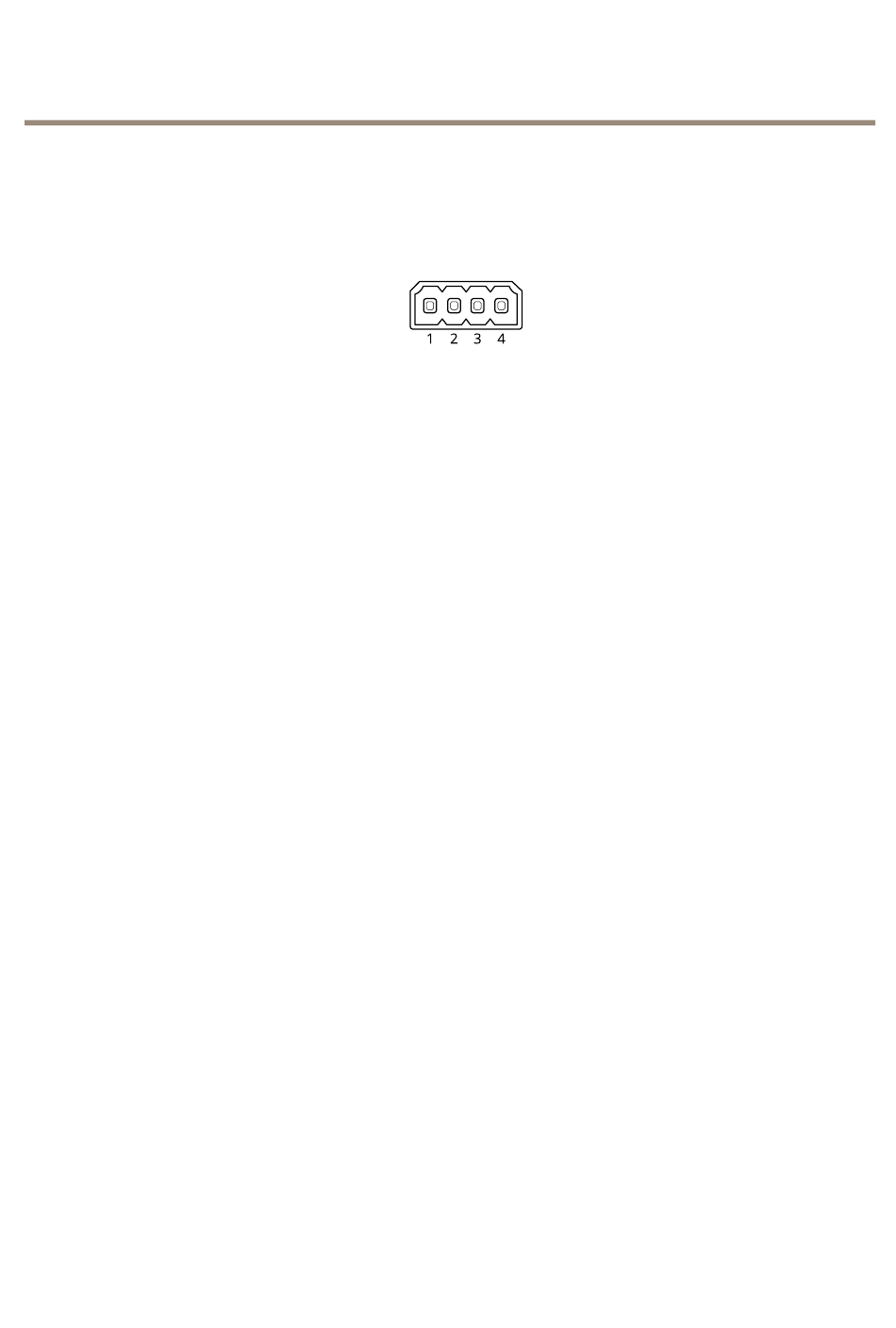

2. Connect the power wire to pin 2 (12V DC output).
3. Connect the I/O wire to pin 3 (I/O input).
Connect the wires to the PIR detector's I/O connector
1. Connect the other end of the ground wire to pin 1 (GND/-).
2. Connect the other end of the power wire to pin 2 (DC input/+).
3. Connect the other end of the I/O wire to pin 3 (I/O output).
Configure the I/O port in the camera's webpage
1. Go to Settings > System > I/O ports.
2. Select Input in the Port 1 drop-down list.
3. Give the input module a descriptive name.
4. To make the PIR detector send a signal to the camera when it senses motion, select Closed circuit in the drop-down list.
To trigger the camera to start recording when it receives a signal from the PIR detector, you need to create a rule in the camera's
webpage.
Zoom in on a specific area automatically with gatekeeper
This example explains how to use the gatekeeper functionality to make the camera zoom in automatically on the license plate of a
car that passes through a gate. When the car has passed, the camera zooms out to the home position.
Create the preset positions:
1. Go to Settings > PTZ > Preset positions.
2. Create the home position that includes the entrance of the gate.
3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate
will appear.
Create a motion detection profile:
1. Go to Settings > Apps and open AXIS Video Motion Detection.
2. Create a profile that covers the entrance of the gate and then save the profile.
Create a rule:
1. Go to Settings > System > Events and add a rule.
2. Name the rule "Gatekeeper".
3. In the list of conditions, under Application, select the motion detection profile.
4. In the list of actions, under Preset positions, select Go to preset position.
5. Select a Video channel.
6. Select the Preset position.
