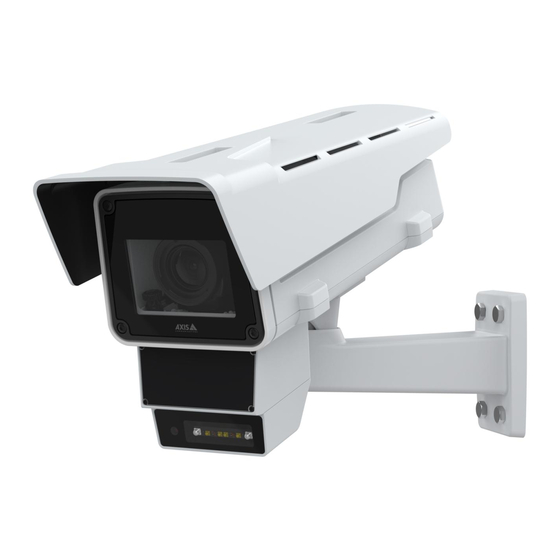

AXIS Q1656-DLE Radar-Video Fusion Camera
Repainting instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q1656-DLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis Q1656-DLE

Summary of Contents for Axis Q1656-DLE

  • Page 1 AXIS Q1656-DLE Radar-Video Fusion Camera Repainting instructions...
  • Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
  • Page 3 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil.
  • Page 4 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product Disassembly Disassemble the housing Screw T20 (4x) Bottom chassis Safety hook Top cover Illuminator sticker Front window sticker 1. Remove the screws and the safety hook. 2. Remove the bottom chassis from the top cover.
  • Page 5 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product Screw T20 (2x) Weathershield 4. Remove the screws and the weathershield. Disassemble the wall mount Screw Screw (4x) Bracket Ball...
  • Page 6 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product 1. Remove the torx screw at the bottom of the arm. 2. Remove the four screws from the bracket. 3. Remove the ball from the bracket. Masking Mask the bottom chassis Label...
  • Page 7 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product Mask the top cover and weathershield Vent membrane Inside of chassis Front window Mask the following parts of the top cover: 1. The vent membrane. 2. The inside of the chassis and the screw holes.
  • Page 8 AXIS Q1656-DLE Radar-Video Fusion Camera Repaint the product Mask the wall mount Recess Bracket inside Screw hole (4x) Mask the following parts of the wall mount: 1. The recess of the arm. 2. The inside of the bracket. 3. The four screw holes.
  • Page 9 4. To get a better coverage and clearer color, apply a second layer of spray paint. 5. When the paint is dry, reassemble the product. Reassembly Reassemble the product and reattach the stickers to the illuminator and front window. For more information, see the installation guide available at axis.com.
  • Page 10 Repainting instructions Ver. M1.5 AXIS Q1656-DLE Radar-Video Fusion Camera Date: January 2024 © Axis Communications AB, 2024 Part no. T10204088...
