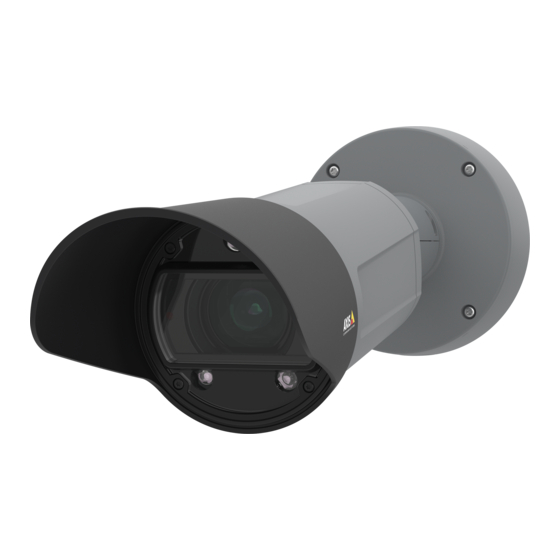

AXIS Q1700-LE License Plate Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis Q1700-LE

Summary of Contents for Axis Q1700-LE

  • Page 1 AXIS Q1700-LE License Plate Camera User manual...

  • Page 2: Table Of Contents

    AXIS Q1700-LE License Plate Camera Table of Contents Installation ..........

  • Page 3: Installation

    AXIS Q1700-LE License Plate Camera Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Web Interface Overview

    AXIS Q1700-LE License Plate Camera Get started The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations. To protect your data we strongly recommend that you: •...

  • Page 6: Configure Your Device

    AXIS Q1700-LE License Plate Camera Configure your device Configure your device Optimize the camera for licence plate capture Note This procedure requires both physical access to the camera and access to the camera’s web interface. 1. Go to the camera’s web interface.
  • Page 7 AXIS Q1700-LE License Plate Camera Configure your device • For environments with certain artificial light and bright light, for example outdoors with fluorescent lighting at night and sun during daytime, select Flicker-reduced. Select the same frequency as the power line frequency.
  • Page 8 2. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Stabilize a shaky image with electronic image stabilization (EIS) Electronic Image Stabilization (EIS) can be used in environments where the product is mounted in an exposed location and subject to vibrations, for example, wind or passing traffic.
  • Page 9 AXIS Q1700-LE License Plate Camera Configure your device ABC 123 1. Go to Video > Image. 2. Click 3. Click for Pixel counter. 4. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect license plates to appear.

  • Page 10: Set Up Rules For Events

    AXIS Q1700-LE License Plate Camera Configure your device 2. Select Image and click 3. Click Images. 4. Drag and drop an image. 5. Click Upload. 6. Click Manage overlay. 7. Select the image and a position. You can also drag the overlay image in the live view to change the position.
  • Page 11 AXIS Q1700-LE License Plate Camera Configure your device Create a rule: 1. Go to System > Events and add a rule. 2. Type a name for the rule. 3. In the list of actions, under Overlay text, select Use overlay text.

  • Page 12: Adjust The Camera View (Ptz)

    AXIS Q1700-LE License Plate Camera Configure your device 4. Type a name for the rule. 5. In the list of conditions, under Device status, select Shock detected. 6. Click + to add a second condition. 7. In the list of conditions, under Scheduled and recurring, select Schedule.

  • Page 13: Audio

    AXIS Q1700-LE License Plate Camera Configure your device Turn on Dynamic GOP and set a high Upper limit GOP length value. Set up network storage To store recordings on the network, you need to set up your network storage. 1. Go to System > Storage.
  • Page 14 AXIS Q1700-LE License Plate Camera Configure your device 5. Go to System > Stream profiles and select the stream profile. 6. Select Include audio and turn it on. 7. Click Save.

  • Page 15: The Web Interface

    AXIS Q1700-LE License Plate Camera The web interface The web interface To reach the device’s web interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.

  • Page 16: Video

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 17 AXIS Q1700-LE License Plate Camera The web interface Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 18 AXIS Q1700-LE License Plate Camera The web interface • Video format: Select the encoding format to use in the live view. • Client stream information: Turn on to show dynamic information about the video stream used by the browser that shows the live video stream.
  • Page 19 AXIS Q1700-LE License Plate Camera The web interface Important We recommend you not to use multiple image correction features at the same time, since it can lead to performance issues. Barrel distortion correction (BDC) : Turn on to get a straighter image if it suffers from barrel distortion. Barrel distortion is a lens effect that makes the image appear curved and bent outwards.
  • Page 20 AXIS Q1700-LE License Plate Camera The web interface Image Appearance Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 21 AXIS Q1700-LE License Plate Camera The web interface : Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 22 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 23 AXIS Q1700-LE License Plate Camera The web interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 24 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 25 AXIS Q1700-LE License Plate Camera The web interface Optimize for storage: Turn on to minimize the bitrate while maintaining quality. The optimization does not apply to the stream shown in the web client. This can only be used if your VMS supports B-frames. Turning on Optimize for storage also turns on Dynamic GOP.

  • Page 26: Ptz

    AXIS Q1700-LE License Plate Camera The web interface Overlays : Click to add an overlay. Select the type of overlay from the dropdown list: • Text: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.
  • Page 27 AXIS Q1700-LE License Plate Camera The web interface Create preset position: Create a new preset position based on the current position of your camera. • Thumbnail: Turn on to add a thumbnail image for the preset position. • Name: Enter a name for the preset position.
  • Page 28 AXIS Q1700-LE License Plate Camera The web interface Limits To narrow down the area under surveillance, you can limit the PTZ movements. Save as Pan 0: Click to set the current position as zero-point for pan coordinates. Set pan-tilt limits: Turn on to set pan-tilt limits for PTZ movements. The camera uses the coordinates of the center of the image when you set pan-tilt limits.

  • Page 29: Audio

    • PTZ control queue: Turn on to place PTZ control requests in a queue. This displays the users status and position in the queue. To use the PTZ controls in AXIS Camera Station, turn off this setting. Enter queue: Click to add your request for PTZ control to the queue.

  • Page 30: Recordings

    AXIS Q1700-LE License Plate Camera The web interface Automatic gain control : Turn on to dynamically adapt the gain to changes in the sound. Gain: Use the slider to change the gain. Click the microphone icon to mute or unmute.

  • Page 31: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 32 AXIS Q1700-LE License Plate Camera The web interface Synchronization: Select an option for the device’s date and time synchronization. • Automatic date and time (manual NTS KE servers): Synchronize with the secure NTP key establishment servers connected to the DHCP server.
  • Page 33 WS-Discovery: Turn on to allow automatic discovery on the network. One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services.
  • Page 34 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 35 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 36 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 37 AXIS Q1700-LE License Plate Camera The web interface Watch and export recordings. Pan, tilt, and zoom; with PTZ user access. The context menu contains: Update account: Edit the account properties. Delete account: Delete the account. You can’t delete the root account.
  • Page 38 AXIS Q1700-LE License Plate Camera The web interface Add a rule: Create a rule. Name: Enter a name for the rule. Wait between actions: Enter the minimum time (hh:mm:ss) that must pass between rule activations. It is useful if the rule is activated by, for example, day-night mode conditions, to avoid that small light changes during sunrise and sunset activate the rule repeatedly.
  • Page 39 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 40 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 41 AXIS Q1700-LE License Plate Camera The web interface Connect: Turn on or off the MQTT client. Status: Shows the current status of the MQTT client. Broker Host: Enter the hostname or IP address of the MQTT server. Protocol: Select which protocol to use.
  • Page 42 AXIS Q1700-LE License Plate Camera The web interface Payload: Enter the content for the default message. Retain: Select to keep the state of client on this Topic QoS: Change the QoS layer for the packet flow. MQTT publication Use default topic prefix: Select to use the default topic prefix, that is defined in the device topic prefix in the MQTT client tab.
  • Page 43 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 44 AXIS Q1700-LE License Plate Camera The web interface Tools • Check: Check for errors on the SD card. This only works for the ext4 file system. • Repair: Repair errors in the ext4 file system. To repair an SD card with the VFAT file system, eject the SD card, insert it in a computer, and perform a disk repair.
  • Page 45 When you create an ONVIF account, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 46 AXIS Q1700-LE License Plate Camera The web interface Analytics metadata Metadata producers Metadata producers lists the apps that stream metadata and the channels they use. Producer: The app that produces the metadata. Below the app is a list of the types of metadata the app streams from the device.
  • Page 47 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.
  • Page 48 AXIS Q1700-LE License Plate Camera The web interface Address: Enter host name or IP address to the network speaker. Username: Enter username. Password: Enter password for the user. Speaker pairing: Select to pair a network speaker. Microphone pairing: Select to pair a microphone.

  • Page 49: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 50 AXIS Q1700-LE License Plate Camera The web interface • Factory default: Upgrade and return all settings to the factory default values. When you choose this option, you can’t revert to the previous firmware version after the upgrade. • Autorollback: Upgrade and confirm the upgrade within the set time. If you don’t confirm, the device reverts to the previous firmware version.

  • Page 51: Learn More

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that covers a part of the monitored area. In the video stream, privacy masks appear either as blocks of solid color or with a mosaic pattern.
  • Page 52 H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 53 AXIS Q1700-LE License Plate Camera Learn more Maximum bitrate (MBR) Maximum bitrate lets you set a target bitrate to handle bitrate limitations in your system. You might see a decline in image quality or frame rate as the instantaneous bitrate is kept below the specified target bitrate. You can choose to prioritize either image quality or frame rate.

  • Page 54: Applications

    Applications With applications, you can get more out of your Axis device. AXIS Camera Application Platform (ACAP) is an open platform that makes it possible for third parties to develop analytics and other applications for Axis devices. Applications can be preinstalled on the device, available for download for free, or for a license fee.

  • Page 55: Specifications

    AXIS Q1700-LE License Plate Camera Specifications Specifications Solution overview This camera is optimized to get clear images of the number plates of passing cars. With additional third party applications you can use these images to: • Perform license plate recognition •...

  • Page 56: Led Indicators

    AXIS Q1700-LE License Plate Camera Specifications IDC network connector Foot Grounding screw Mounting plate LED Indicators Note • The Status LED can be configured to be unlit during normal operation. To configure, go to Settings > System > Plain config.

  • Page 57: Buttons

    AXIS Q1700-LE License Plate Camera Specifications For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 58 AXIS Q1700-LE License Plate Camera Specifications Orange and white Green and white Orange Green Green and white Orange and white Green Orange Brown and white Brown and white Brown Brown Audio connector • Audio in – 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal).
  • Page 59 AXIS Q1700-LE License Plate Camera Specifications DC ground DC output 12 V, max 50mA I/O configured as input I/O configured as output Power connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either...

  • Page 60: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 61: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 62 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 63: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 64 User manual Ver. M5.2 AXIS Q1700-LE License Plate Camera Date: September 2023 © Axis Communications AB, 2019 - 2023 Part no. T10138414...
