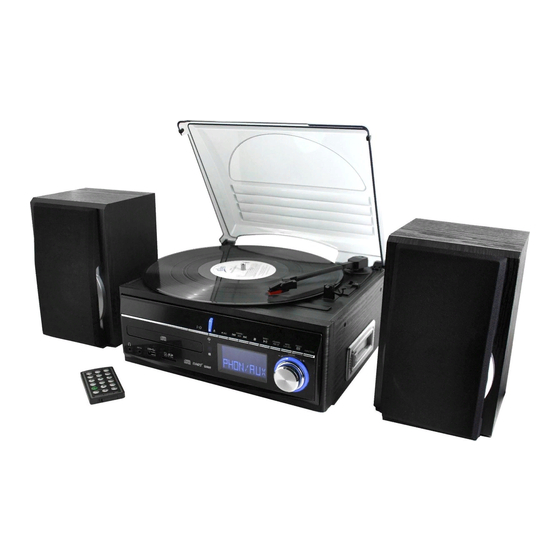

SOUNDMASTER MCD1700 Instruction Manual
Hide thumbs Also See for MCD1700:

Advertisement

Quick Links

The materials are reusable according to their markings. By reusing, recycling or
other forms of utilization of old devices you make an important contribution to
the protection of our environment.
Please contact your local authorities for details about collection points.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
WARNING
Risk of electric shock
Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There
are no user serviceable parts inside. Refer servicing to qualified service personnel.
Safety, Environmental and Setup Instructions
Use the device in dry indoor environments only.
Protect the device from humidity.
Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with
the specifications on the rating plate.
Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
A damaged mains cable or plug must immediately be replaced by an authorized service center.
In case of lightning, immediately disconnect the device from the mains supply.
Children should be supervised by parents when using the device.
Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
Do not expose the device to direct sunlight or other heat sources.
Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
Do not cover the ventilation openings!
Install the device at a safe and vibration-free location.
Install the device as far away as possible from computers and microwave units; otherwise radio reception may be
disturbed.
Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized
service/ customer center.
The device is equipped with a "Class 1 Laser". Avoid exposure to the laser beam as this could cause eye injuries.
Only use mercury and cadmium-free batteries.
Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Return the batteries to your
dealer or to collection points in your community.
Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was
swallowed.
Check your batteries regularly to avoid battery leakage.
Return batteries free of charge to public collection points in your
community or to shops selling batteries of the respective kind.
Only return fully discharged batteries.
*) marked Cd = cadmium, Hg = mercury, Pb = lead
ENVIRONMENTAL PROTECTION
Do not dispose of this product with the normal household waste at the end
of its life cycle. Return it to a collection point for the recycling of electrical
and electronic devices. This is indicated by the symbol on the product,
user manual or packaging.
CAUTION - INVISIBLE LASER RADIATION WHEN OPENING
THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID
EXPOSURE TO THE LASER BEAM.
Used batteries are hazardous waste and NOT to be disposed
of with the household waste! As a consumer you are legally
obligated to return all batteries for environmentally responsible
recycling – no matter whether or not the batteries contain harmful
substances*).
This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
This symbol indicates the presence of important
operating and maintenance instructions for the
device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SOUNDMASTER MCD1700

  • Page 1 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
  • Page 2: Battery Replacement

    MCD1700 / English instruction manual BATTERY REPLACEMENT The battery compartment is located on the back of the remote control. Remove the battery compartment door by pressing in on the tab and lifting it off. Insert one (1) CR2032 size batteries into the battery compartment following the polarity markings inside the battery compartment.
  • Page 3 MCD1700 / English instruction manual LOCATION OF CONTROLS 1) DUST COVER 2) TUNING/SKIP UP DOWN BUTTON RECORD BUTTON 4) CD DOOR OPEN/CLOSE BUTTON 5) POWER LED INDICATOR 6) POWER ON/STANDBY BUTTON 7) STANDBY LED INDICATOR 8) CD DOOR 9) REMOTE SENSOR 10) 3.5MM HEADPHONE JACK...
  • Page 4: Setting The Clock

    MCD1700 / English instruction manual SETTING THE CLOCK SET UNIT IN STANDBY MODE. PRESS & HOLD THE “MEM/CLK-ADJ” BUTTON (17), THE LCD DISPLAY (5) WILL SHOW “ SET CLOCK “ AND THEN DISPLAY “ 12HR OR 24 HR “ PRESS SKIP...
  • Page 5 MCD1700 / English instruction manual HINTS FOR BEST RECEPTION:- AM : THE RECEIVER HAS A BUILD-IN AM BAR ANTENNA. IF AM RECEPTION IS WEAK, SLIGHT ROTATE OR RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION. FM : THE RECEIVER HAS A BUILD-IN FM WIRE ANTENNA (28) HANGING AT THE REAR CABINET. THIS WIRE SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR THE BEST RECEPTION.
  • Page 6: Random Play

    MCD1700 / English instruction manual SONG TITLE/FOLDER NAME SEARCH FUNCTION (BY REMOTE HANDSET) YOU CAN SEARCH THE TRACK BY THE TITLE/FOLDER NAME IN DISC DURING STOP OR PLAYBACK MODE:- PRESS THE “ FIND “ BUTTON ONCE, THEN PRESS THE “SKIP UP ”...
  • Page 7 MCD1700 / English instruction manual CD / MP3 DISC PROGRAMMING UP TO 40 TACKS CAN BE PROGRAMMED FOR DISC PLAY IN ANY ORDER. BEFORE USE, BE SURE TO PRESS STOP THE “ “ BUTTON (14) SET IN CD MODE & STOP THE PLAYBACK.
  • Page 8 MCD1700 / English instruction manual ENCODING OF CD/PHONO INTO MP3 FILE TO USB MEMORY THE SYSTEM IS ABLE TO ENCODE NORMAL CD OR TURNTABLE TO MP3 FORMAT AND RECORDING AT MEMORY MEDIA WITH USB CONNECTING PORT (OR SM/MMC CARD SLOT). BEFORE STARTING THE ENCODING, PLEASE INSERT THE MEMORY MEDIA (USB PEN DRIVE OR SD/MMC CARD) TO THE SYSTEM &...
  • Page 9 MCD1700 / English instruction manual B) PHONO ENCODING SELECT “ PHON/AUX “ MODE AND THEN PRESS THE “ REC “ BUTTON (3) DIRECTLY. THE LCD DISPLAY (21) WITH SHOW “ “ & “ “ AND FLASHING AFTER FEW SECONDS. NOW THE SYSTEM IS STARTING THE ENCODING MODE.
  • Page 10 MCD1700 / English instruction manual ENCODING BITRATE (BY REMOTE HANDSET) YOU CAN SELECT THE DESIRED BITRATE DURING ENCODING FROM CD/TAPE/PHONO/RADIO AND AUX-1 IN TO USB OR SD, THE SELECTABLE RANGE FROM 32 / 64 /96 /128 / 192 / 256 KBPS.
  • Page 11 MCD1700 / English instruction manual REMARK MAKE SURE THE DIRECTION IS CORRECT WHEN INSERTING THE TAPE INTO THE SYSTEM. THERE IS SOME SEARCHING NOISE CAN BE HEARD AND THE SYSTEM CANNOT PERFORM NORMAL PLAYBACK FUNCTION DURING FAST FORWARD MODE. THIS IS RECOMMENDED TO TAKE OUT THE CASSETTE TAPE FROM THE SYSTEM EVERY TIMES AFTER LISTENING AND DON’T LEAVE THE CASSETTE TAPE INSIDE THE SYSTEM WHEN NOT UNDER...
  • Page 12: Line Out Connection

    MCD1700 / English instruction manual REMARK THE UNIT WILL SWITCH OFF AUTOMATICALLY AFTER SETTING THE ALARM. THE WAKE UP VOLUME IS PRESET AT LEVEL 20. IF THERE IS NO MUSIC SOURCE BEING DETECTED (SUCH AS USB/SD/CD) WHEN THE PRESET TIME IS REACHED, SYSTEM WILL DEFAULT TO TUNER MODE AUTOMATICALLY.
  • Page 13 MCD1700 / English instruction manual REMOTE CONTROL TRANSMITTER BUTTON DESCRIPTION BATTERY INSTALLATION (BATTERY NOT PROVIDED) THE INFRA-RED TRANSMITTER REQUIRE 1 PC LITHIUM BATTERY TYPE “ CR2032 “ FOR OPERATION BUTTON DESCRIPTION ON/STANDBY PRESS TO SWITCH ON/STANDBY THE SYSTEM FUNCTION PRESS TO SELECT THE FUNCTIONS (TUNER/CDUSB/SD/TAPE/ PHON/AUX)
  • Page 14: Important Note

    MCD1700 / English instruction manual PRESS TO ACTIVE ENCODING/MP3 FILE COPY FUNCTION DEL/INFO IN USB/SD MODE : PRESS TO DELETE THE FILE IN THE USB/SD MEMORY IN MP3 PLAYBACK MODE : PRESS TO ACTIVE ID3 FUNCTION VOLUME -/+ PRESS TO ADJUST VOLUME LEVEL UP/ DOWN...
