H E AT S E T T I N G S
The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking. Experiment with the hob to find the
settings that best suit you.
H E AT S E T T I N G S U I TA B I L I T Y
» Delicate warming for small amounts of food
» Melting chocolate, butter, and foods that burn quickly
1 - 2
» Gentle simmering
» Slow warming
» Reheating
3 - 4 » Rapid simmering
» Cooking rice
5 - 6 » Pancakes
» Sautéing
7 - 8
» Pasta
» Stir-frying
» Searing
9
» Bringing soup to the boil
» Boiling water
18 Instruction manual C809C
Please keep this instruction manual for future reference

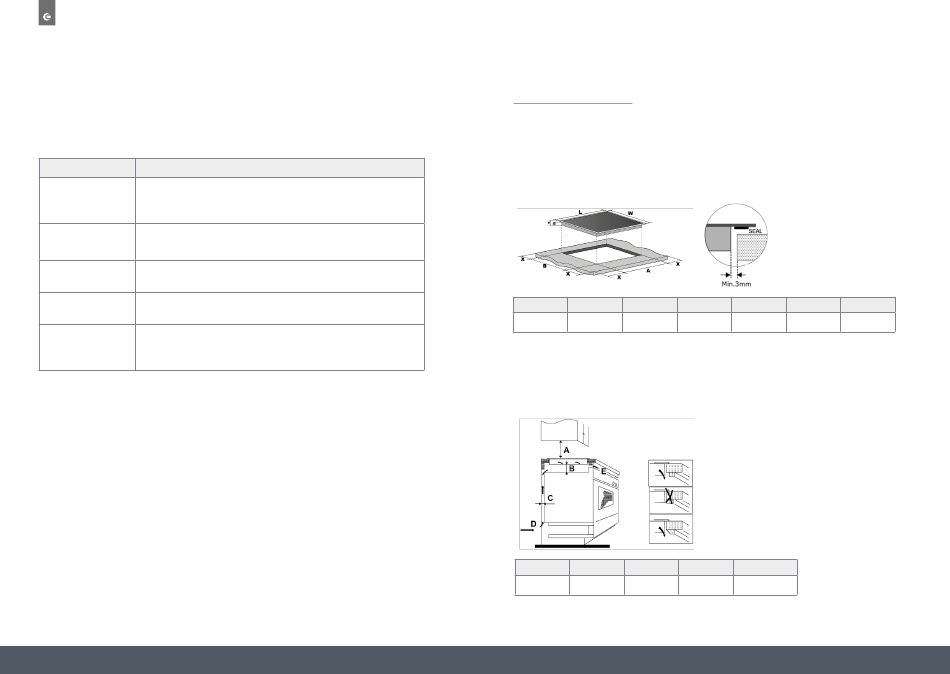

I N S T A L L A T I O N
Cut out the work surface according to the sizes shown in the drawing. For the purpose of
installation and use, a minimum of 50mm space must be left around the hole. Be sure the
thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid deformation caused by the heat radiation from the hob.
See below:
L ( M M ) W ( M M ) H ( M M ) D ( M M )
590 520 55 51
W A R N I N G :
Always ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the
ceramic hob is in good working order.
See below:
A ( M M ) B ( M M ) C ( M M ) D
760 50 Min 20 Min Air intake
N OT E :
For safety the distance between the hob and the cupboard above should be at least 760mm.
Please keep this instruction manual for future reference
A ( M M ) B ( M M ) X ( M M )
564 494 50 Min
E
Air exit (5mm)
Instruction manual C809C 19
