Introduction
The sensor can detect the door or window opening. When the door or window is open, an alarm will be triggered and it will be sent to the alarm center or mobile client
via security control panel.
Door Magnetic Sensor Alarm: When the distance between the sensor and the magnetic stick is longer than 3 cm, an alarm will be triggered. The indicator will flash once.
Tamper Alarm: When removing the sensor, an alarm will be triggered.
2
Appearance
2
3
4
1
5
7

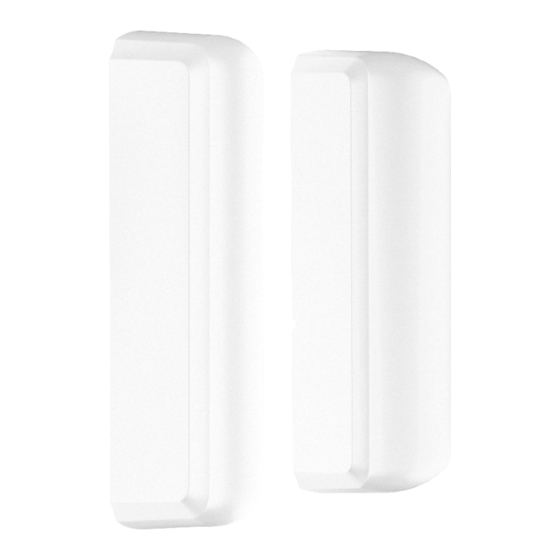

1 Magnetic Stick
2 Sensor
3
Battery
4 Power Switch
5 Tamper Button
Tampering Alarm: If the detector is disassembled, an alarm will be triggered.
Formatting: Restore the device to default settings.
Indicator
6
Alarm Detection: Red LED flashes.
Detector Formatted: Red LED flashes 3 times.
7
External Input
8
Rear Tamper Sheet
7
Positioning Line
1. Magnetic Stick 2. Sensor 3. Battery 4. Power Switch
6. Indicator 7. External Input 8. Rear Tamper Sheet
8
6
9
5. Tamper Button
9. Positioning Mark
