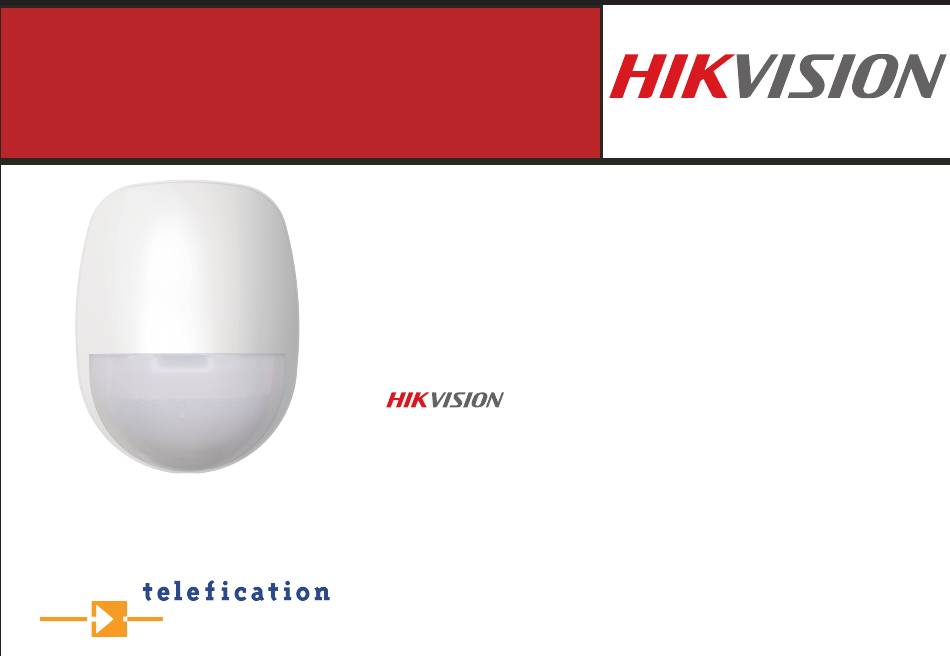

DS-PDP18-EG2
18m Digital PIR Detector
(16m EN and INCERT compliant, 10m Pet Tolerance)
EN50131-2-2:2017
EN50131-1:2006+A1:2009+A2:2017
Security Grade (SG) 2
Environmental Class (EC) II
Certified by Telefication
COPYRIGHT ©2020 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
About this Manual
The Manual includes instructions for using and managing the
Product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the latest version of
this Manual at the Hikvision website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of
professionals trained in supporting the Product.
and other Hikvision's trademarks and logos are the
properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their
respective owners.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-PDP18-EG2 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-PDP18-EG2

Summary of Contents for HIKVISION DS-PDP18-EG2

  • Page 1 DS-PDP18-EG2 18m Digital PIR Detector (16m EN and INCERT compliant, 10m Pet Tolerance) COPYRIGHT ©2020 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only.
  • Page 2 1 Disassembling the Detector (d) PCB (a) Lens (b) LED Light Pipe (e) Nut (c) Lens Holder (f) Casing Screw...
  • Page 3 2 The Printed Circuit Board（PCB） (b) Tamper Resistor Headers 5K6, 4K7, 2K2, 1K (c) Terminals (d) Alarm (a) PIR Sensor Resistor Headers 1K, 2K2, 4K7, 5K6, 8K2 (e) Tamper Spring (f) LED ON/OFF (g) Sensitivity Settings LED ON AUTO (Default) LED OFF HIGH...
  • Page 4 Installation Method - Detector Backplane Installation Screw Model number PA_3.5 ×25...
  • Page 5 Installation Method - Bracket Installation (1) Ceiling Bracket Fitting (Non EN compliant) Note: Brackets are optional. (2) Wall Bracket Fitting...

  • Page 6: Installation Hints

    5 Installation Hints...
  • Page 7 6 The 18 m Lens To use the pet immunity function, please install a pet mask. (a) Detection Range 85.9° 52 zones 4 planes PET Table Sensitivity mode High Auto Weight 5 kg 10 kg 15 kg 1m 2m 10m 12m 14m 16m 18m (b) Mounting Height 2.4m...
  • Page 8 7 Resistor Wiring The detector has two method for resistor wiring: (1) Using headers to select the End of Line resistance (Control panel dependent) on the ALARM/TAMPER header pins. (2) Select an resistance (Control panel dependent), and add the resistor to ALARM/TAMPER wiring ports of the detector. Note: If EOL (End of Line) wiring is not used, leave the headers OFF.
  • Page 9 8 Choose the Connection Type (1) Normally Closed a. Alarm Control Panel TAMPER ALARM TAMPER ALARM b. Detector...
  • Page 10 (2) Single End of Line Wiring a. Alarm Control Panel The connection shows the example: 1. Normal: 1K 2. Alarm: Infinite 3. Tamper: 0 K TAMPER ALARM TAMPER ALARM b. Detector...
  • Page 11 (3) Double End of Line Wiring a. Alarm Control Panel The connection shows the example: 1. Normal: 1K 2. Alarm: 2K 3. Tamper: 0 K or infinite TAMPER ALARM TAMPER ALARM b. Detector...
  • Page 12 (4) Two Double End of Line Detectors to One Input a. Alarm Control Panel TAMPER ALARM TAMPER ALARM TAMPER ALARM TAMPER ALARM b1. Detector 1 b2. Detector 2...
  • Page 13 Powering up After powering on, the indicator flashes rapidly. Once the detector self test is completed, the LED indicator will go out until the detector detects movement. NOT READY READY...

  • Page 14: Dimension And Weight

    10 Dimension and Weight 86.8 mm 45.5 mm 65.4 mm 68 g (2.4 oz)

  • Page 15: Technical Specification

    11 Technical Specification Detection range 18m, 85.9° Detection speed 0.3 ~ 2 m/s Sensitivity High, Auto, Low Auto sensitivity Onboard EOL Digital temperature compensation Yes Technology Digital microprocessor based Sealed optics Creep zone protection Tamper protection Front LED indicator Blue (alarm) Pet immunity See PET Table above Power supply...
  • Page 16 DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 17 IC Information CLASS B: CAN ICES-3 (B)/NMB-3(B) Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 18 FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
