Summary of Contents for Rane Zonetech

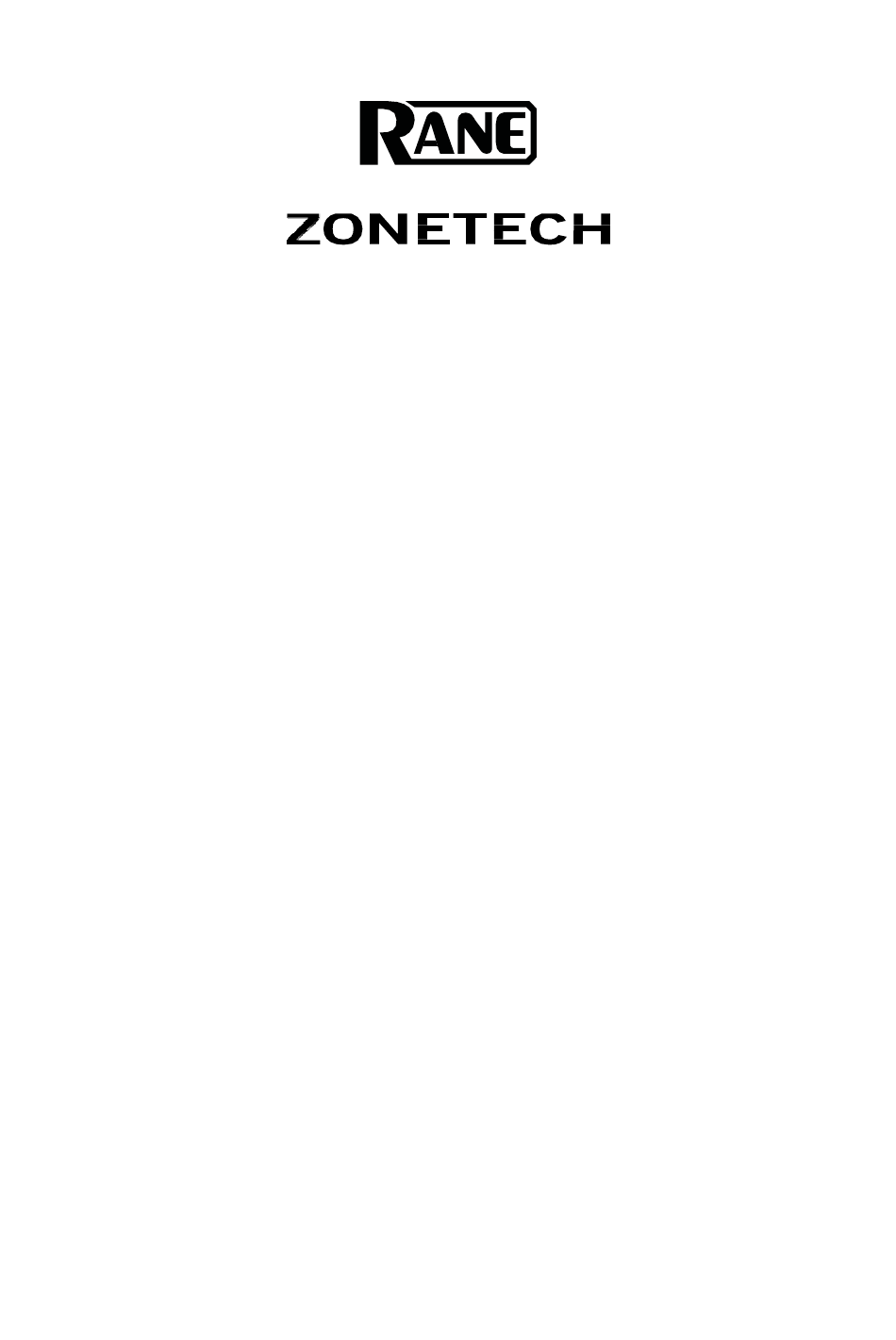

  • Page 1 UserGuide English(3–25) Appendix English(26–27)
  • Page 3 UserGuide(English) Introduction Thank you for purchasing the Zonetech. At Rane, performance and reliability mean as much to us as they do to you. That’s why we design our equipment with only one thing in mind—to make your performance the best it canbe.
  • Page 4 Remotes Ports, and Pager Port on the rearpanel. Attach the Bluetooth antenna (included) to the Bluetooth antenna connector on the rear panel. For best results, place Zonetech and the Bluetooth antenna so that it is not obstructed by walls, furniture,etc.
  • Page 5 (powered on). You can then use the computer to control Zonetech remotely using a web-basedinterace. Bluetooth Light: This light will flash when Zonetech is in Pairing Mode. It will be lit solidly when Zonetech is paired with an active Bluetooth device. When paired, you can then send the device’s audio signal to Zonetechwirelessly.
  • Page 6 10. Computer Ethernet Port (Ethernet): Connect a computer to this port during setup. After Note: If you do not need the pager function, you can connect an optional Rane DR6 to this port instead. This will provide the same functions as a DR6 connected to the Master Remote port (see #8above).
  • Page 7 Operation Editing InputSettings You can use Zonetech’s display, Info knob, and Left/Right (/) buttons to edit the settings of eachinput. To select an input to edit, press the corresponding Input button (1–6) or the Bluetooth button. The display will indicate which input is selected: Input 1–6 or Stream.
  • Page 8 Input Type (???) Stream Source (???) (Inputs 5 and 6 only) This is the type of device connected to Input This is the source from which Zonetech will play streamed audio: None (off), 5 and Input 6: Dynamic (microphone), Condenser (Microphone), Unbalanced Bluetooth, AirPlay, UPnP/DLNA.
  • Page 9 EditingOutput(Zone)Settings You can use Zonetech’s display, Info knob, and Left/Right (/) buttons to edit the settings of each output(zone): To select a zone to edit, press the corresponding Zone button (1–6). The display will indicate which zone is selected: Zone 1–6.
  • Page 10 PEQ Level PEQ Frequency (PEQ Freq) This is the amount of “boost” (increase) or This is the center frequency of the mid- “cut” (decrease) of the mid-range parametric range parametric equalization band: 40 Hz equalization band: -15.0 to +8.0 dB. –...
  • Page 11 Note: If a device (e.g., a power amplifier) Tip: If you are using a subwoofer and main later in the signal path than Zonetech is loudspeaker with this zone, use the mono using a limiter, the limiter with a lower setting, and use the X-Over Freq, Low threshold will determine the maximum level.
  • Page 12 Paging You can use Zonetech’s display, Info knob, and Left/Right (/) buttons to edit the paging settings. To view Paging settings, press the Page button. To edit the Paging settings, use the Left/Right (/) buttons to show the previous or next setting (respectively).
  • Page 13 High Shelf Level (HS Level) High Shelf Frequency (HS Freq) This is the amount of “boost” (increase) or This is the frequency of the high-frequency “cut” (decrease) of the high-frequency shelving filter: 630 Hz – 16 kHz (default: shelving filter: -15.0 to +8.0 dB. 630 Hz).
  • Page 14  If your device requires a passcode or PIN, enter 0000.  If your Bluetooth device is not able to connect to Zonetech, press Zonetech’s Bluetooth button to disconnect previous Bluetooth connections, and try the above steps again.  If you experience trouble connecting or playing music, make sure your Bluetooth device’s operating system is up to date.
  • Page 15 In Windows Media Player, right-click the track you would like to play. Navigate to PlayTo and select Rane Zonetech. Note: If Zonetech does not appear in your list of devices, make sure your PC has been set to allow media streaming access forZonetech.
  • Page 16 Info You can use Zonetech’s display to view additional Zonetech system settings. Press the Info knob to cycle through the following information pages. These are the viewable Info settings. Meters Device/Port Status This view shows multicolor level meters for This view shows information about the all inputs and zones.
  • Page 17 Wired Wireless Network Settings. Network Settings. Zonetech Device Information This view shows information about Zonetech: the name of the location (Venue name), the current firmware version (Firmware Version), and serial number of the unit (Serial Number).
  • Page 18 Computer You can use a web-based interface on your computer to control Zonetech remotely. To set up Zonetech for use with its web interface, do one of the following:  Use standard Ethernet cables to connect Zonetech’s Computer Ethernet port to a router or similar access point, and then connect your computer to that router or access point (wired orwirelessly).
  • Page 19 General Level: This is the volume level at the input Stream Source (Stream Tab): This is the stage. source from which Zonetech will play streamed audio. InputType(Input5and6Tabs):Thisisthe type of device connected to Input 5 and Input6. Pairing and Status (Stream Tab): Click the Pairing checkbox to enter Pairing mode and connect your Bluetooth device.
  • Page 20 Input 1–6, Stream, and Page (continued) Low Shelf Parametric EQ (PEQ) Level: This is the amount of “boost” Level: This is the amount of “boost” (increase) or “cut” (decrease) of the low- (increase) or “cut” (decrease) of the mid- frequency shelving filter. range parametric equalization band.
  • Page 21 Zones (Outputs) General Level: This is the output volume level. Input Source: This is the audio source of the zone. Priority Source: This is the audio source that will play automatically when an incoming signal is detected. Priority Hold Time: This determines how long it will take (in seconds) for the output to switch back to the original audio source after the priority source signal falls below the threshold.
  • Page 22 Zones (continued) Stereo/X-Over (Zone 6 only) Limiter Output Mode This determines whether Zone 6’s Threshold: The limiter ensures the output signal is stereo (left and right) (Stereo) or output audio signal does not exceed this volume level. mono with two-way crossover (X-Over). X-Over Frequency: This determines the frequency at which the low frequencies and high frequencies are split between the subwoofer and main...
  • Page 23 DHCP, if supported by your network. Static IP and Subnet Mask: This is the manually assigned IP address and subnet mask of the connected wireless network. MAC Address: This displays the unique MAC address of your Zonetech device.
  • Page 24 DR6 and the Halogen system to for additionalinformation. To set up Zonetech for use with a DR6, use a shielded Cat5e or Cat6 Ethernet cable to connect the DR6 to the Master Remote port on Zonetech. You can also connect a second DR6 to the Paging port if it is not in use.

  • Page 25: Troubleshooting

    Make sure you are using Zonetech as described in this userguide.  Make sure your other devices or media are workingproperly.  If you believe Zonetech is not working properly, check the following table for your problem andsolution. Problem: Solution: Pleasesee: Power does notturnon.
  • Page 26 Appendix(English) TechnicalSpecifications Audio Inputs Connectors (1) 6-pin 3.8 mm Euroblockinputs (balanced mic/line level, green) (4) RCA stereo output pairs MaximumInputLevel +20 dBu Audio Outputs Connectors (3) 6-pin 3.8 mm Euroblock outputs (Zones 1–4 & 6, balanced line level, orange) (1) 3-pin 3.8 mm Euroblock outputs (Zone 5, balanced line level, orange) 200 Ω, each leg toground Impedance...
  • Page 27 Trademarks &Licenses Rane is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rane is under license.
