Rane Zonetech User Manual page 5

Features

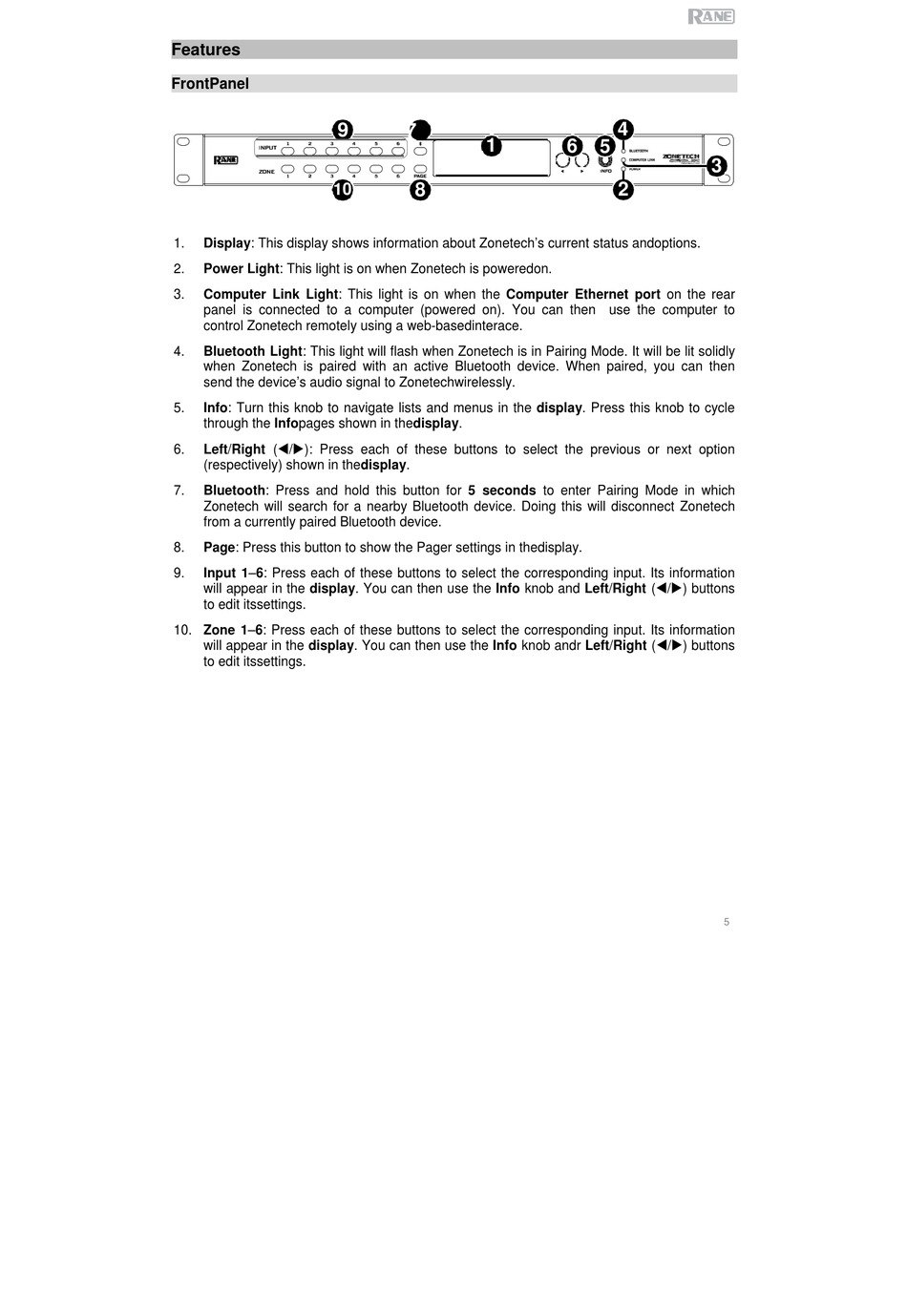

FrontPanel
9
10
1. Display: This display shows information about Zonetech's current status andoptions.
2. Power Light: This light is on when Zonetech is poweredon.
3. Computer Link Light: This light is on when the Computer Ethernet port on the rear
panel is connected to a computer (powered on). You can then use the computer to
control Zonetech remotely using a web-basedinterace.
4. Bluetooth Light: This light will flash when Zonetech is in Pairing Mode. It will be lit solidly
when Zonetech is paired with an active Bluetooth device. When paired, you can then
send the device's audio signal to Zonetechwirelessly.
5. Info: Turn this knob to navigate lists and menus in the display. Press this knob to cycle
through the Infopages shown in thedisplay.
6. Left/Right (/): Press each of these buttons to select the previous or next option
(respectively) shown in thedisplay.
7. Bluetooth: Press and hold this button for 5 seconds to enter Pairing Mode in which
Zonetech will search for a nearby Bluetooth device. Doing this will disconnect Zonetech
from a currently paired Bluetooth device.
8. Page: Press this button to show the Pager settings in thedisplay.
9. Input 1–6: Press each of these buttons to select the corresponding input. Its information
will appear in the display. You can then use the Info knob and Left/Right (/) buttons
to edit itssettings.
10. Zone 1–6: Press each of these buttons to select the corresponding input. Its information
will appear in the display. You can then use the Info knob andr Left/Right (/) buttons
to edit itssettings.
7
1
6
8
4
5
3
2
5
