The SM 26B Swiss Army Mixer
• 6 In, 2 Out Mixer
• 2 In, 6 Out Splitter
• 6 In, 6 Out Buffer Amplifier
• 4 Channel Stereo Splitter
• Other Applications
Dennis Bohn
Rane Corporation
RaneNote 108
© 1983 Rane Corporation
SM 26B SWISS ARMY MIXER
Introduction
Everyone needs a line level mixer. Even my mother. It
has to be small, and cheap, and versatile. It has to be
able to mix split, distribute, level match, amplify, at‑
tenuate and pan—all without adding any distortion or
noise whatsoever. The mind reels...

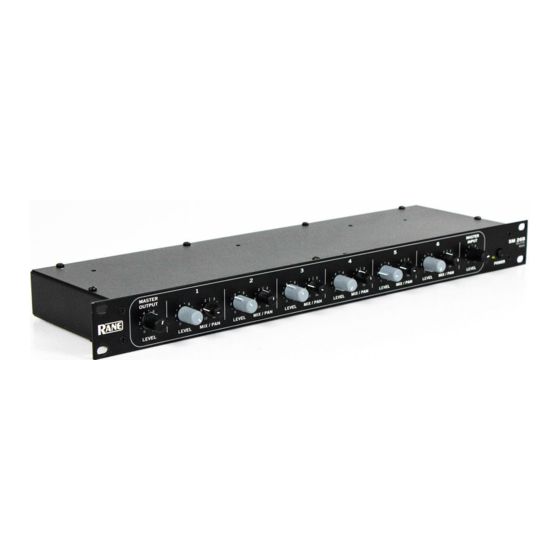

And recovers, and discovers the Rane SM 26B Split‑
ter Mixer. It is small (1 rack space), extremely versatile,
and affordable. It is a 6 in / 2 out mixer, a 2 in / 6 out
splitter/distribution amplifier, and a 6 in / 6 out buffer
amplifier. It has 12 dB of gain and better than 80 dB
of attenuation. The distortion products are less than
.009% and the noise floor is a trifle 35 microvolts.
Inside this RaneNote is found a gruelingly complete
description of the innards of an SM 26B and a patheti‑
cally skimpy introduction to the many possible ap‑
plications of same. Such is my belief that you are the
best judge of how to apply the SM 26B once you really
understand its workings.
RaneNote
Swiss Army Mixer-

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWISS ARMY SM 26B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rane SWISS ARMY SM 26B

Summary of Contents for Rane SWISS ARMY SM 26B

  • Page 1 • 2 In, 6 Out Splitter noise whatsoever. The mind reels... And recovers, and discovers the Rane SM 26B Split‑ • 6 In, 6 Out Buffer Amplifier ter Mixer. It is small (1 rack space), extremely versatile, and affordable.

  • Page 2: Block Diagram

    Block Diagram A complete block diagram of the SM 26B appears as switching contact associated with the MONO IN jack. Figure 1. (Get your eyeglasses, you may need them.) (The jacks are drawn in their open, i.e., unused state. Stereo input pairs are accommodated by the individual Inserting a plug into the MONO IN jack causes the LEFT and RIGHT INPUT jacks.
  • Page 3 LEFT EXPAND OUTPUT LEFT LEFT MIX MASTER OUTPUT INPUT MASTER MASTER INPUT OUTPUT RIGHT LEVEL LEVEL EXPAND OUTPUT RIGHT RIGHT MIX MASTER OUTPUT INPUT 6+ In / 2 Out Mixer Figure 2 diagrams the SM 26B signal path when configured as a 6+ In/2 Out mixer.
  • Page 4 MONO MONO 0 dB FILTER INPUT 1 OUT 1 CH. 1 LEVEL 6 In / 6 Out Buffer Amplifier MONO MONO 0 dB FILTER Figure 4 shows how the SM 26B can be used INPUT 2 OUT 2 as a “straight through” line buffer amplifier. In‑ CH.
  • Page 5 LEFT RIGHT RIGHT INPUT EXPAND OUT RIGHT INPUT EXPAND OUT 2 x 6 SM 26B Expansion Expanding the input and output capacity of the SM 26B Splitter Mixer is quite easy. Figure 5 shows the 2 x 12 RIGHT INPUT procedure for splitter mode expansion.
  • Page 6 Applications Zone Amplifier Level Controls Adding individual remote level controls to the MA 3 The SM 26B is unusually versatile in its applications. Multichannel Amplifier is easy with the SM 26B as dia‑ With the capability to mix 6 Mono Inputs down to one grammed in Figure 7.

  • Page 7: Mix Outputs

    LEFT MIX OUTPUT LEFT INPUT RIGHT MIX OUTPUT RIGHT INPUT MA 3 6-to-1-to-6 Mixer Splitter SM 26B SM 26B Figure 9 shows how to use two SM 26B’s to create a 6‑to‑1 mix then a 1‑to‑6 split‑ MA 3 ter, to drive the six channels of two MA 3 amplifiers.
  • Page 8 SM 26B goes on and on. PAN R Experiment and have fun! Figure 14. DJ Mixer Effects Loop Mixer ©Rane Corporation 00 th Ave. W., Mukilteo WA 9-09 USA TEL --000 FAX -- WEB www.rane.com Swiss Army Mixer- DOC 103062 6‑06...
