Bluetooth Low Energy Radios; Console Port; Ethernet Ports - Aruba AP-505H Installation Manual

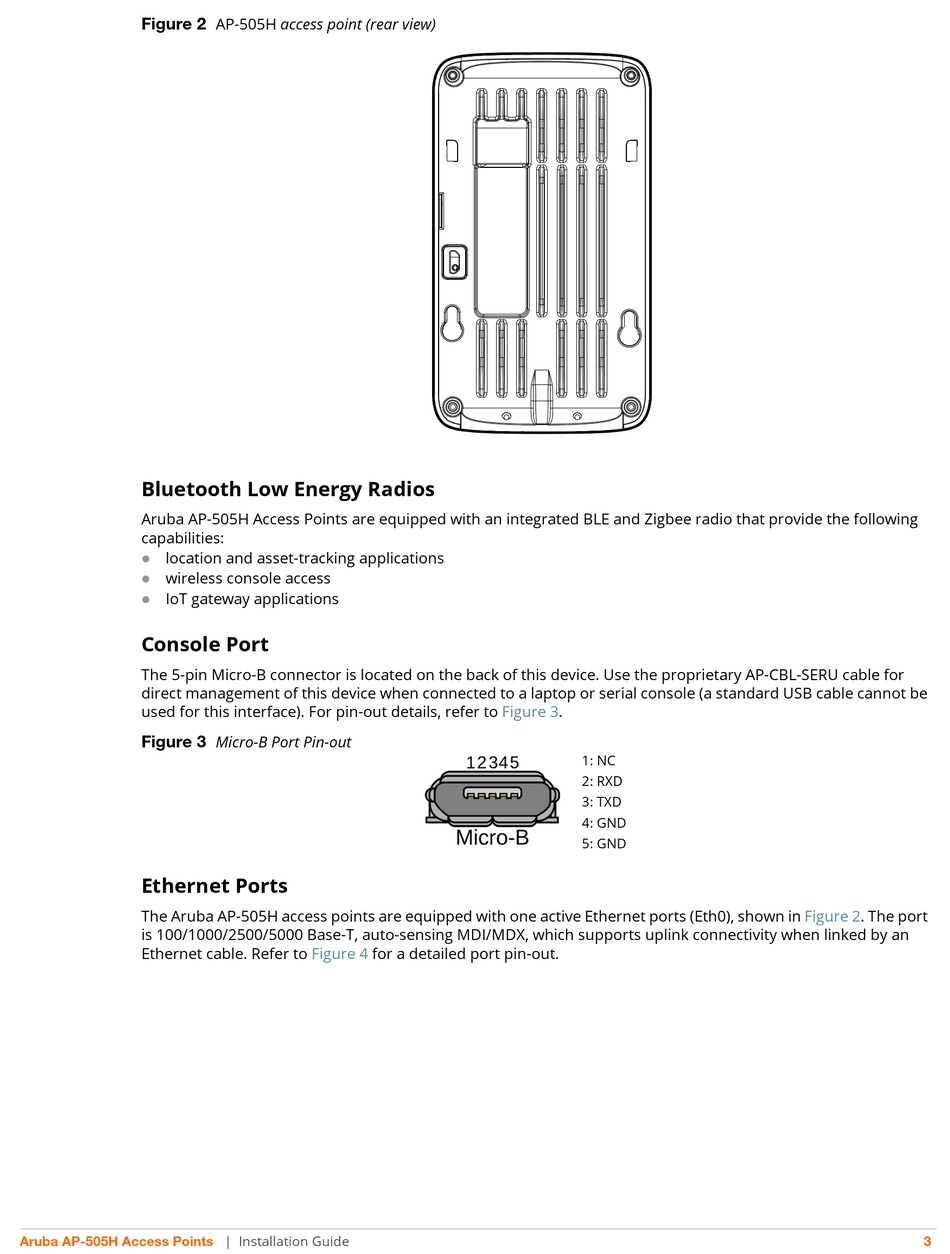

Figure 2

Bluetooth Low Energy Radios

Aruba AP-505H Access Points are equipped with an integrated BLE and Zigbee radio that provide the following
capabilities:
location and asset-tracking applications

wireless console access

IoT gateway applications


Console Port

The 5-pin Micro-B connector is located on the back of this device. Use the proprietary AP-CBL-SERU cable for
direct management of this device when connected to a laptop or serial console (a standard USB cable cannot be
used for this interface). For pin-out details, refer to
Figure 3

Ethernet Ports

The Aruba AP-505H access points are equipped with one active Ethernet ports (Eth0), shown in
is 100/1000/2500/5000 Base-T, auto-sensing MDI/MDX, which supports uplink connectivity when linked by an
Ethernet cable. Refer to
Aruba AP-505H Access Points
AP-505H access point (rear view)
Micro-B Port Pin-out
Figure 4 for a detailed port pin-out.
| Installation Guide
Figure 3.
1: NC
2: RXD
3: TXD
4: GND
5: GND
