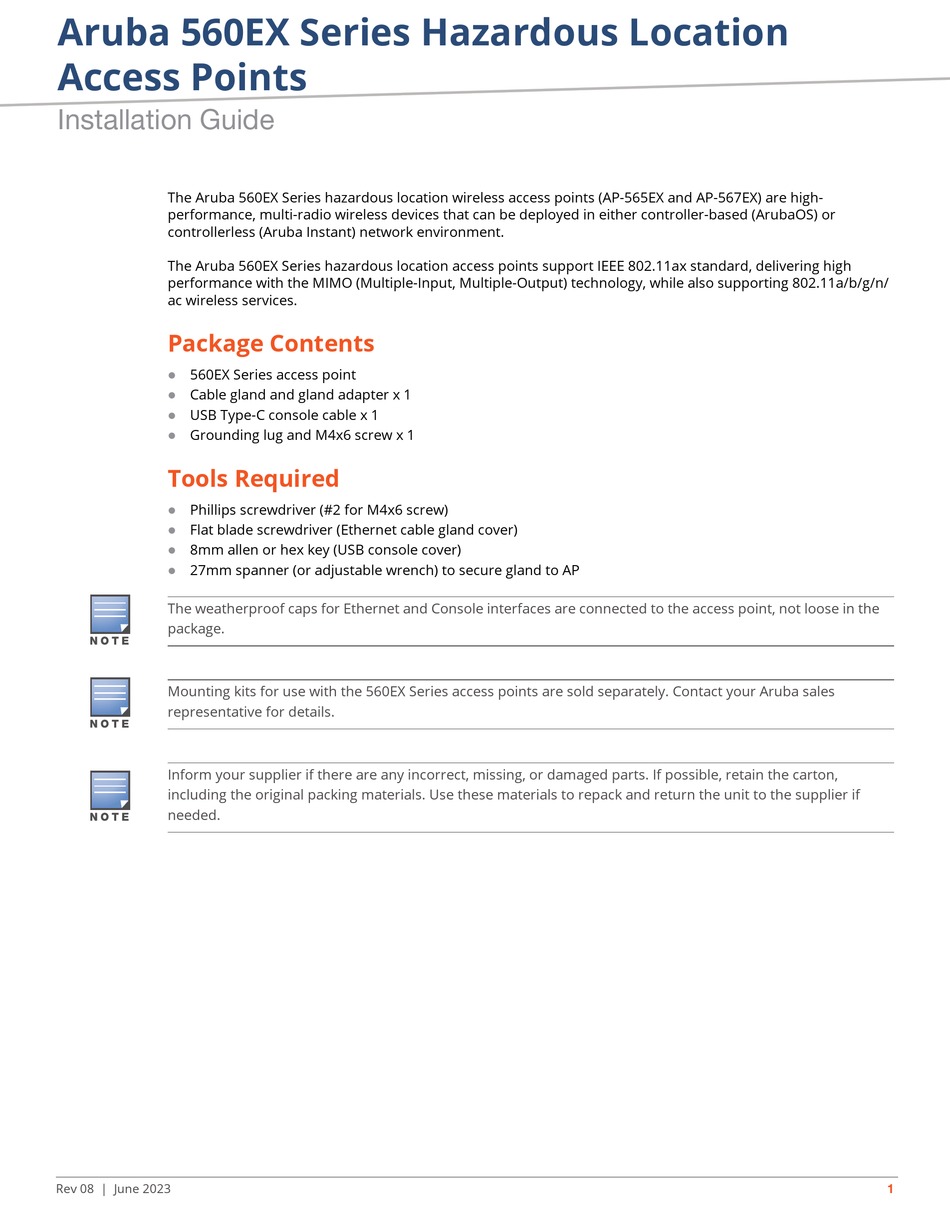

Aruba 560EX Series Hazardous Location
Access Points
Installation Guide
The Aruba 560EX Series hazardous location wireless access points (AP-565EX and AP-567EX) are high-
performance, multi-radio wireless devices that can be deployed in either controller-based (ArubaOS) or
controllerless (Aruba Instant) network environment.
The Aruba 560EX Series hazardous location access points support IEEE 802.11ax standard, delivering high
performance with the MIMO (Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g/n/
ac wireless services.
Package Contents
560EX Series access point

Cable gland and gland adapter x 1

USB Type-C console cable x 1

Grounding lug and M4x6 screw x 1

Tools Required
Phillips screwdriver (#2 for M4x6 screw)

Flat blade screwdriver (Ethernet cable gland cover)

8mm allen or hex key (USB console cover)

27mm spanner (or adjustable wrench) to secure gland to AP

The weatherproof caps for Ethernet and Console interfaces are connected to the access point, not loose in the
package.
Mounting kits for use with the 560EX Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
