Summary of Contents for Dogtra iQ VIBE

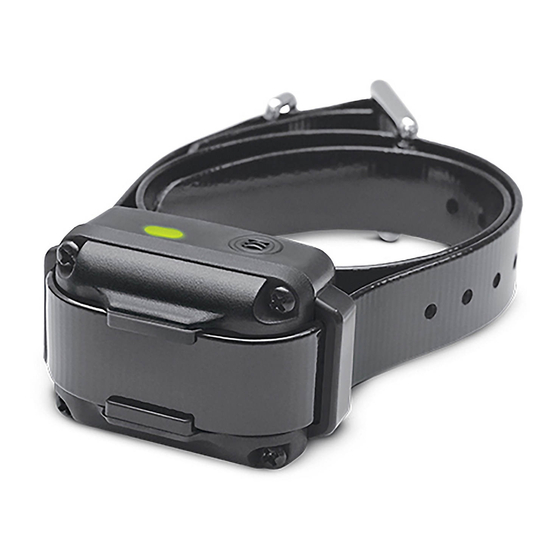

- Page 1 VIBE NO BARK COLLAR Owner's Manual Please read this manual thoroughly before operating the iQ VIBE.
- Page 2 Please read all safety and product information below before using your Dogtra product. Failure to follow these safety instructions could result in injury to you, your dog and others, or it could result in damage to your Dogtra product or other property. PRODUCT SAFETY...
- Page 3 Consult your physician or medical device maker before using your medical device with a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product.
- Page 4 UNAUTHORIZED USE Your Dogtra product should be used only in a humane manner to train and educate your dog. Dogtra products are not intended for use in any other manner nor are they intended for use with other animals or with humans.
-
Page 5: Table Of Contents
CONTENTS AT A GLANCE ..............MAIN FEATURES ............OVERVIEW ............... TURNING THE iQ VIBE ON/OFF ....... TESTING THE iQ VIBE ..........OPERATING MODES ............LED INDICATOR .............. RECEIVER FITTING ............FINDING THE RIGHT LEVEL ........CHARGING THE BATTERY .......... MAINTENANCE ............... -
Page 6: At A Glance
AT A GLANCE iQ VIBE Battery Owner's No Bark Collar Charger Manual MAIN FEATURES • Ultra-compact receiver • 3-level High Performance Pager (HPP) vibration • Fully waterproof • 2-hour rapid charge batteries • Sound Recognition Sensor • For dogs as small as 10 pounds... -
Page 7: Overview
OVERVIEW Collar Strap Vibration Battery Charging Receptacle & Rubber Plug On/Off & Vibration Intensity Button LED Indicator Light Sound Recognition Sensor... -
Page 8: Turning The Iq Vibe On/Off
TURNING THE iQ VIBE ON/OFF On: Press the on/off button on the receiver until the LED illuminates green. Off: Press the on/off button on the receiver for 2 seconds until the LED illuminates red. -
Page 9: Testing The Iq Vibe
TESTING THE iQ VIBE Mic Sensor 1. Make sure the iQ VIBE is turned off. 2. Hold the on/off button down for 4 seconds. 3. Release the on/off button when the green LED light blinks rapidly. 4. Blow into the Mic Sensor. The receiver will emit a High Performance Pager (HPP) vibration three times if operating correctly. -
Page 10: Operating Modes
The iQ VIBE has three High Performance Pager (HPP) vibration levels. With the iQ VIBE on, briefly press the on/ off button to increase the level. When the iQ VIBE is turned off, the last level that the system was on will be saved. If the incorrect level is selected, you can press the on/off button to start over. -
Page 11: Led Indicator
Red = Needs charge 3. Standby: The LED will blink every 4 seconds when the iQ VIBE is turned on. The number of flashes will indicate what level the receiver is set on. LOW HPP LEVEL: LED blinks one time... -
Page 12: Receiver Fitting
RECEIVER FITTING Proper Fit The receiver should be fitted so that it has close contact with your dog's neck to ensure proper vibration. You should be able to fit two fingers underneath the collar strap. The best location is on either side of the dog’s windpipe. -
Page 13: Finding The Right Level
Attention! Leaving the receiver in the same location on the dog’s neck for an extended period of time can cause skin irritation due to sensitivity. If the dog is to wear the receiver for long periods, occasionally reposition the receiver every few hours to a different location on the dog’s neck and remove the receiver after eight hours of usage. -
Page 14: Charging The Battery
NOTE 2: The unit has a partial charge when it leaves the Dogtra facility. Upon receipt of the system, be sure to give it a full 2-hour initial charge before the first use away from any flammable substances. - Page 15 1. Plug the charger into the receiver, as shown. 2. Plug the charger into a 120 volt wall outlet or, if using the auto charger, plug into a cigarette lighter for lithium polymer batteries. All indicator lights should glow red when properly plugged in and the unit will automatically shut off during the charging process.
-
Page 16: Maintenance
Storage Maintenance The iQ VIBE should be fully charged before storing for extended periods. While in storage, the unit should be given a full charge once a month and before the first use. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. How do I charge and maintain my product? - The iQ VIBE can be fully charged in 2-3 hours. - The LED will show red when charging and turn green when the charging is complete. - Depending on the frequency of usage, it is recommended to charge the system once every two weeks. -
Page 18: Warranty And Repair Information
One-Year Warranty Except as otherwise provided below, Dogtra warrants to the original retail purchaser (“You”) that its Dogtra products shall be free of defects in materials and workmanship for a period of one (1) year from the date of purchase (“Warranty”). - Page 19 PURPOSE. Limitation of Remedies Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under Warranty. Any claim or action to enforce the Warranty must be commenced within thirty (30) days of the Warranty’s expiration for your product.
- Page 20 Upon approval of your warranty work, Dogtra will repair or replace (at Dogtra’s election) your product without charge for labor or parts. You are responsible for shipping, including cost, of your product to Dogtra for warranty service. Dogtra will handle shipping, including cost, of the repaired or replaced product back to customers in the USA.
