Dogtra 2500 T&B Owner's Manual

Remote controlled dog training collars
Hide thumbs Also See for Dogtra 2500 T&B:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Enlarged version
22912 Lockness Avenue
Torrance, CA 90501
U.S.A.
telephone (310) 534 - 0101
fax
toll free
Copyright c 2007 Dogtra Company
(310) 534 - 9111
1- 888 -811- 9111
2007-
REMOTE CONTROLLED
DOG TRAINING COLLARS
www.dogtra.com
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Dogtra Dogtra 2500 T&B

Summary of Contents for Dogtra Dogtra 2500 T&B

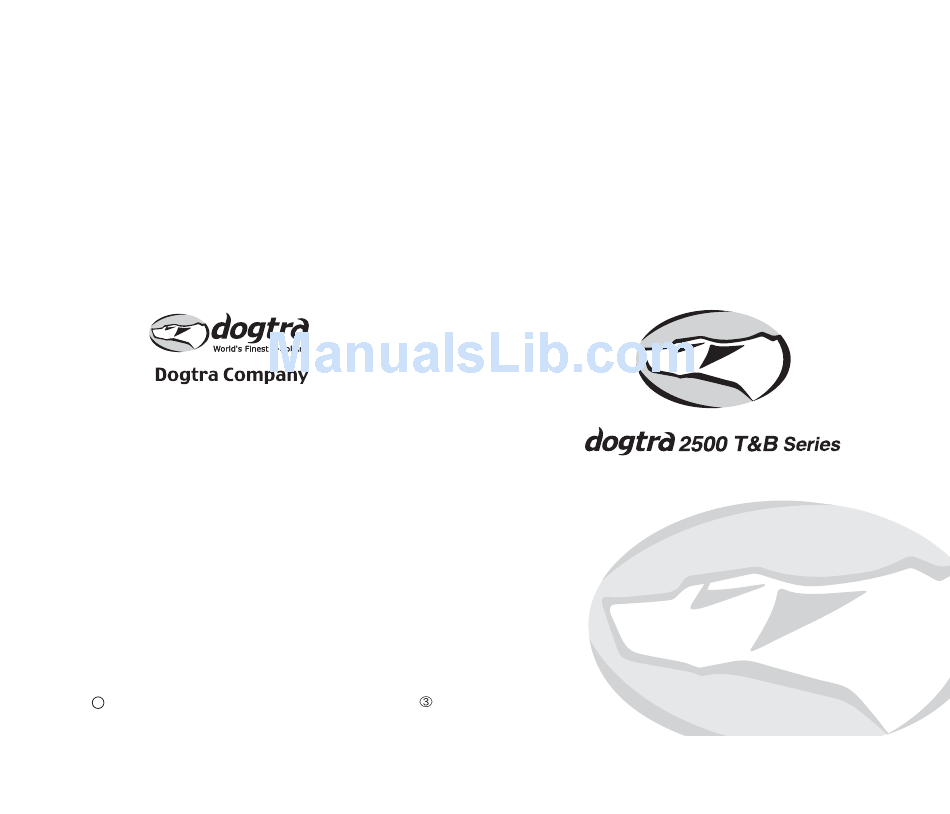

  • Page 1 REMOTE CONTROLLED DOG TRAINING COLLARS OWNER’S MANUAL 22912 Lockness Avenue Torrance, CA 90501 U.S.A. telephone (310) 534 - 0101 (310) 534 - 9111 toll free 1- 888 -811- 9111 Copyright c 2007 Dogtra Company 2007- www.dogtra.com...

  • Page 2: Table Of Contents

    CONTENTS OVERVIEW MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF COLLAR/RECEIVER PARTS DESCRIPTION OF BATTERY CHARGER TESTING YOUR TESTING YOUR FITTING THE COLLAR ON THE DOG CHARGING THE BATTERIES RECEPTION ACCESSORIES BASIC MAINTENANCE TROUBLESHOOTING GUIDE WARRANTY AND REPAIR INFORMATION...

  • Page 3: Overview

    The receiver/collar’s LED window will blink green every 5 seconds to show that the unit is on The Dogtra training & beeper collars are and fully charged. waterproof, lightweight, and reliable. They are built to withstand the most rugged conditions...

  • Page 4: Main Features

    OVERVIEW MAIN FEATURES it double beeps every 2 seconds. By pushing the MAIN FEATURES MODE button a second time, the unit will go into the Point-Only mode. While the dog is moving, the Easy-to-use, ergonomically fitted transmitter. unit will not beep, (you can use the Locate mode for locating your dog).

  • Page 5: Product Safety And Health Statements

    Dogtra Company does not assume any liability for Over 8000 different identity codes to prevent the improper use of the Dogtra e-collars.

  • Page 6: Package Contents

    PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS COLLAR DESCRIPTION OF PACKAGE CONTENTS TRANSMITTER PARTS transmitter (1-dog) Transmitter Receiver (two collar/receivers for two-dog models) Lithium Polymer Battery charger Antenna and splitter cable Rheostat On/Off Magnatic Test light Beeper Sound Intensity Dial Red Dot Toggle Switch Owner’s manual ON/OFF...
  • Page 7 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS transmitter (2-dog) 3.2 Antenna Antenna Transmitter Antenna Dog Collar On/Off Magnatic Rheostat Toggle Switch Red Dot Intensity Dial A 3.2” antenna is supplied with the ON/OFF Switch Indicator Light (LED Window) The antenna must be fastened to the transmitter before using the unit.
  • Page 8 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Beeper Sound Dog Collar Toggle Switch Toggle Switch Beeper Sound Toggle Switch Dog Collar Toggle Switch on the One-Dog Models on the Two-Dog Models The one-dog model has a Beeper Sound The two-dog model has a toggle switch on toggle switch on the face of the transmitter the face of the transmitter located above the located above the “Nick”...
  • Page 9 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Rheostat Intensity Dial LCD Screen The Rheostat Intensity Dial is located on The LCD screen indicates the stimulation level the top of the transmitter: (0) being the lowest on the screen ranging from (0-127). The battery life indicator shows: 3 bars = full charge, 2 bars = level and (127) being the highest.
  • Page 10 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Care for LCD Transmitters in Cold Temperature In cold temperatures (10 degrees F or below), the LCD on your transmitter may be dim or slow to respond. Wait until the display becomes visible before selecting any training level.

  • Page 11: Button Function

    DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS BUTTON FUNCTION Beeper Sound Toggle Switch Nick Lccate Constant Mode ON/OFF Switch Transmitter Battery Charging Receptacle & Rubber Plug The transmitter for the Located on the backside of the transmitter, has five buttons (two on the face of the the charging receptacle is covered by a rubber transmitter, two on the left side, and one on the plug.
  • Page 12 Run/Point mode or Point-only mode. If the toggle Your Dogtra 2500T&B has three different switch is set on the High tone, a single beep will modes. Locate, Run/Point, and Point-Only. The sound when using Run/Point or Point-Only mode.
  • Page 13 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Beeper Volume Adjustment Initial Beeper Mode Action Sound The Beeper Volume level for the Run/Point mode and Point-Only mode can be increased or -Dog running: Double decreased by holding the LOCATE button down beep every 7 Run/ while briefly pushing the MODE button.

  • Page 14: Description Of Collar/Receiver Parts

    DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF COLLAR / RECEIVER PARTS Transmitter Power ON/OFF DESCRIPTION OF COLLAR / RECEIVER PARTS The button on the right side of the transmitter is the “ON/OFF” button that activates the transmitter only and LCD screen. To turn the transmitter ON, press the “ON/OFF”...
  • Page 15 Receiver Indicator Light (LED window) (To Activate the Receiver) Located on the front of the receiver/collar, To activate the Dogtra 2500 T&B Series, the indicator light comes on and blinks once place the red dot on the back of the transmitter every 4 seconds after the collar is turned on.

  • Page 16: Description Of Battery Charger

    NOTE : Only use Dogtra-approved Lithium-Polymer Battery Chargers for your Dogtra e-collar. This will prevent any damage that can be incurred from attempting to use a different charger.

  • Page 17: Testing Your

    TESTING TESTING 3. Turn the transmitter on by pressing the blue TESTING YOUR button on the right side of the transmitter. The LCD screen shows the amount of battery COLLAR life remaining and the LED blinks once every 4 seconds. (The battery needs charging, if the color of the LED is red or the LCD battery icon shows 1 bar.) 4.
  • Page 18 (or place (High/Low) toggle switch. The two-dog model: your hand over the horn). The sound may be Dogtra 2502 T&B has a fixed beeper sound extremely loud and may cause discomfort to based on the color of the collar.

  • Page 19: Testing Your

    TESTING YOUR FITTING THE COLLAR ON THE DOG The Dogtra 2502 T&B two-dog unit operates just like the Dogtra 2500 T&B single-dog unit. The difference between the one-dog and two-dog collar is noticeable on the transmitter where a toggle switch allows you to select either collar.

  • Page 20: Charging The Batteries

    FITTING THE COLLAR ON THE DOG CHARGING THE BATTERIES CHARGING THE BATTERIES ATTENTION! Avoid having the dog wear the collar with the contact points in the same place for more than 8 hours out of every 24-hour period. Leaving the points on the same spot for extended periods of time can cause skin irritation.
  • Page 21 Battery Charging Procedure transmitter and receiver. Note : The unit has a partial charge when it leaves the Dogtra facility, upon receipt of NOTE : Only use Dogtra-approved batteries, the collar, be sure to give it a full 2-hour chargers, and accessories for your initial charge before the first use.

  • Page 22: Reception

    (888) 811-9111. You may also browse the selection at www.dogtra.com. Hold the transmitter away from your body and avoid touching the antenna, to get the greatest range.

  • Page 23: Basic Maintenance

    If you suspect your unit is malfunctioning please refer to the “Troubleshooting Guide” before you send your unit in for service. If you have any questions or concerns, you may direct your inquiries to info@dogtra.com or call (888) 811-9111.
  • Page 24 - The antenna(s) may be damaged. To order and charging port with clean water. - For Dogtra units over two years old from parts please contact Customer Service at purchase date, batteries may be replaced (888) 811-9111.

  • Page 25: Warranty And Repair Information

    Dogtra Co. within the continental become void and all repairs will be subject to applicable labor fees. Dogtra does not provide United States. Any expedited shipping service replacement on defective units or provide will be at the owner’s expense. Dogtra is not...
  • Page 26 WARRANTY AND REPAIR INFORMATION responsible for loss of training time or inconvenience while the unit is in our warehouse for repair work. Dogtra does not provide loaner units or any form of compensation during the repair period. A copy of the sales receipt showing purchase date is required before warranty work is begun.
