Main Components 2.3.A Control Center - Autopilot Pool Pilot Professional PPP-2 Owners & Installation Manual

The chlorine output for each of the Pool Pilot
on a 24 hour chlorinator / pump run time and a salt concentration of 3,500 ppm (mg/L), is listed
here.
Model (w / Mfld Assy & PPC5 Cell)
®
Pool Pilot Professional PPP-2
®
Pool Pilot Professional PPP-3
®
Pool Pilot Professional PPP-4
®
Pool Pilot Professional PPP-5
®
Pool Pilot Professional PPP-6
Model (w / PPC5 Convection Cell)
®
Pool Pilot Professional PPP-2-CONV
®
Pool Pilot Professional PPP-3-CONV
®
Pool Pilot Professional PPP-4-CONV
®
Pool Pilot Professional PPP-5-CONV
®
Pool Pilot Professional PPP-6-CONV
2.3 Main Components
2.3.a Control Center
®
The Pool Pilot Professional Control Center converts incoming AC power to low voltage DC
power, which energizes the cells. The power modules that energize the cells are mounted
vertically inside the control center.
Page - 2
®
Professional chlorinator models, which is based
Chlorine Output lbs. (kg) Per 24 Hours
Chlorine Output lbs. (kg) Per 24 Hours
®
Pool Pilot Professional
5.24 lbs. (2.05 kg)
7.86 lbs. (3.08 kg)
10.48 lbs. (4.11 kg)
13.10 lbs. (5.14 kg)
15.72 lbs. (6.16 kg)
4.53 lbs. (2.05 kg)
6.79 lbs. (3.08 kg)
9.06 lbs. (4.11 kg)
11.32 lbs. (5.14 kg)
13.59 lbs. (6.16 kg)

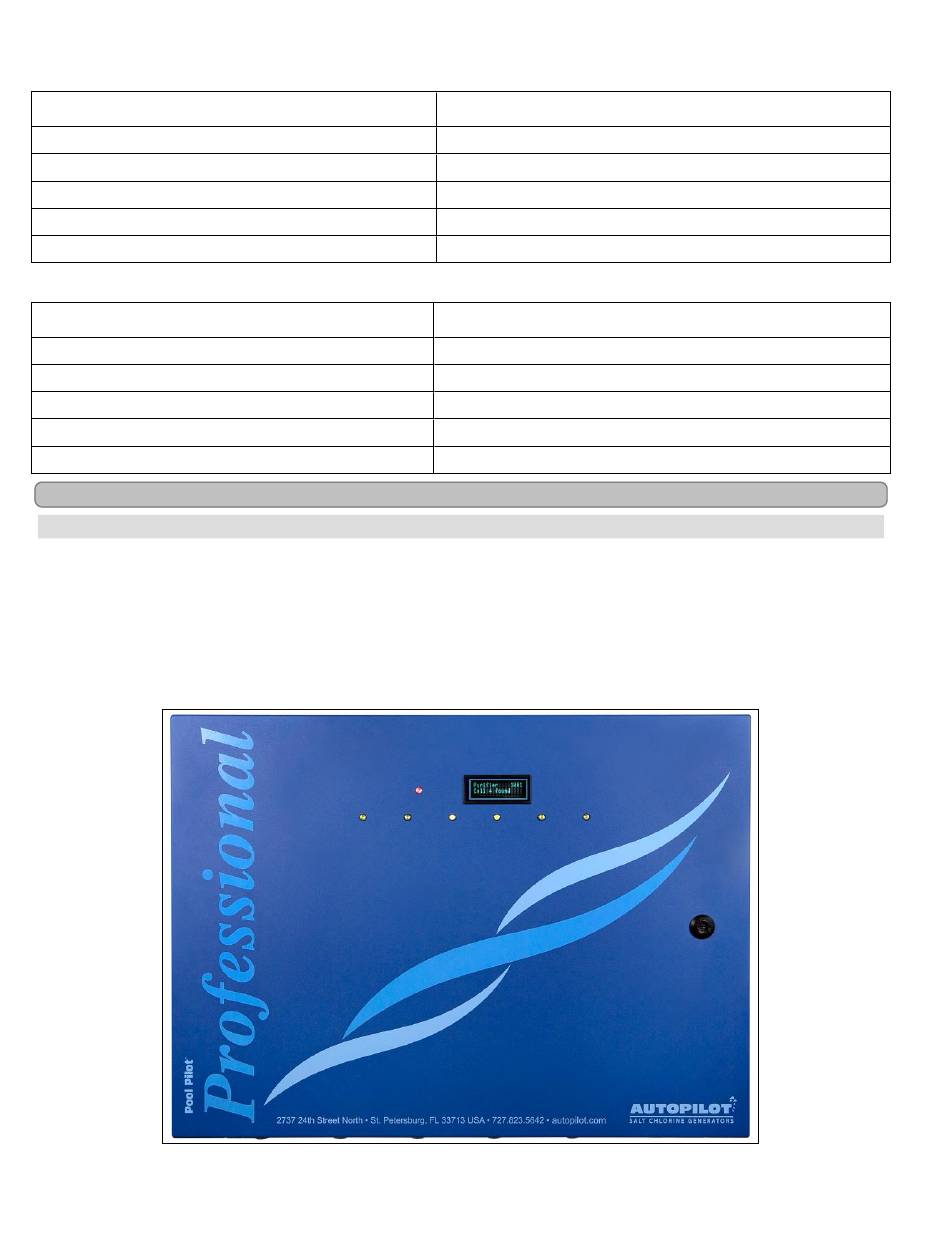

Figure 1
