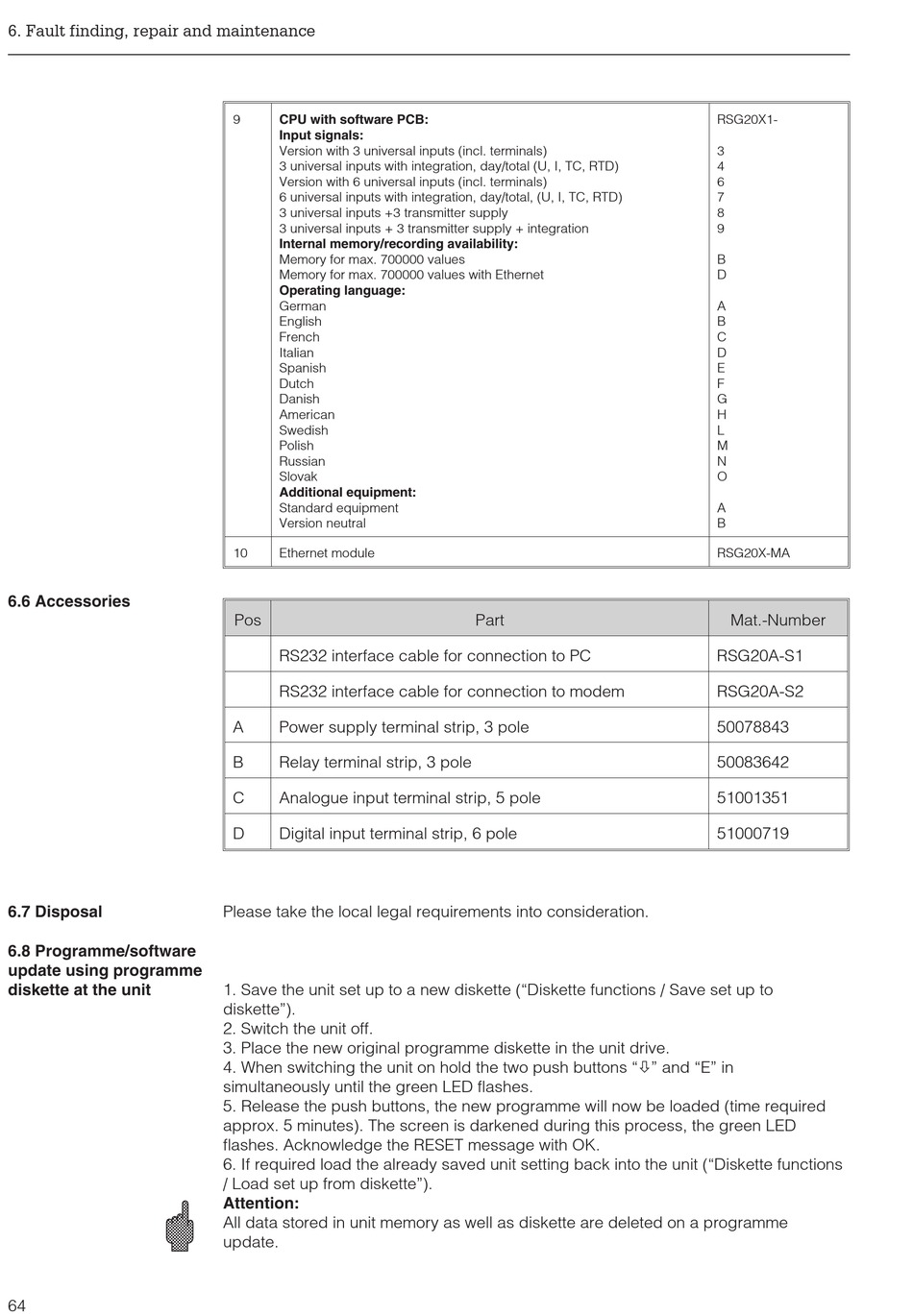

6. Fault finding, repair and maintenance

6.6 Accessories

6.7 Disposal

6.8 Programme/software
update using programme
diskette at the unit
64
9 CPU with software PCB:
Input signals:
Version with 3 universal inputs (incl. terminals)
3 universal inputs with integration, day/total (U, I, TC, RTD)
Version with 6 universal inputs (incl. terminals)
6 universal inputs with integration, day/total, (U, I, TC, RTD)
3 universal inputs +3 transmitter supply
3 universal inputs + 3 transmitter supply + integration
Internal memory/recording availability:
Memory for max. 700000 values
Memory for max. 700000 values with Ethernet
Operating language:
German
English
French
Italian
Spanish
Dutch
Danish
American
Swedish
Polish
Russian
Slovak
Additional equipment:
Standard equipment
Version neutral
10 Ethernet module
Pos
RS232 interface cable for connection to PC
RS232 interface cable for connection to modem
A Power supply terminal strip, 3 pole
B Relay terminal strip, 3 pole
C Analogue input terminal strip, 5 pole
D Digital input terminal strip, 6 pole
Please take the local legal requirements into consideration.
1. Save the unit set up to a new diskette ("Diskette functions / Save set up to
diskette").
2. Switch the unit off.
3. Place the new original programme diskette in the unit drive.
4. When switching the unit on hold the two push buttons "ò" and "E" in
simultaneously until the green LED flashes.
5. Release the push buttons, the new programme will now be loaded (time required
approx. 5 minutes). The screen is darkened during this process, the green LED
flashes. Acknowledge the RESET message with OK.
6. If required load the already saved unit setting back into the unit ("Diskette functions
/ Load set up from diskette").
Attention:
All data stored in unit memory as well as diskette are deleted on a programme
update.
Part
RSG20X1-
3
4
6
7
8
9
B
D
A
B
C
D
E
F
G
H
L
M
N
O
A
B
RSG20X-MA
Mat.-Number
RSG20A-S1
RSG20A-S2
50078843
50083642
51001351
51000719
