Additional Usb Port Headers - Abit AW8 User Manual

2-14
(8).

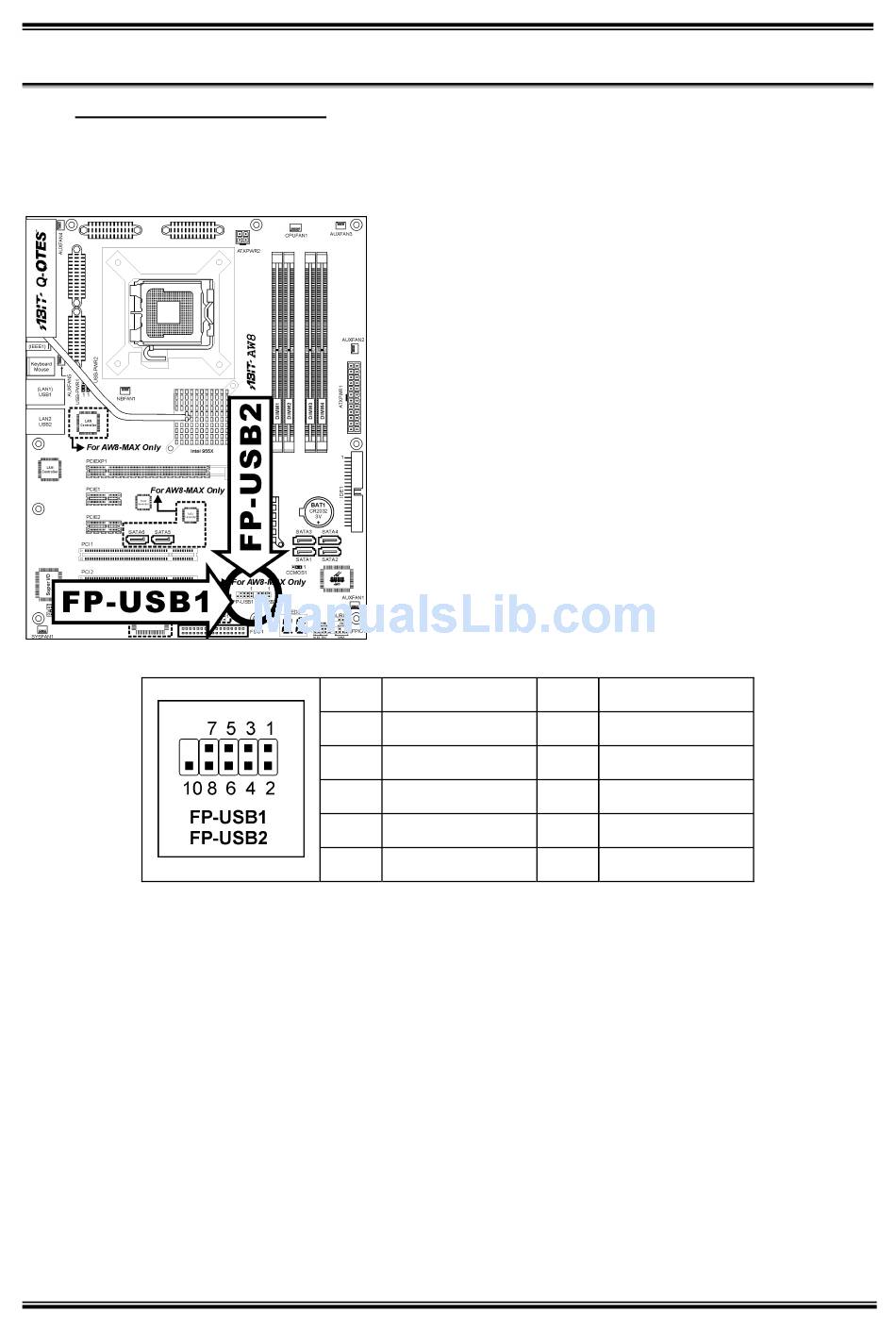

Additional USB Port Headers

These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
AW8 Series
Pin Pin Assignment
1 VCC
3 Data0 -
5 Data0 +
7 Ground
9 NC
Pin Pin Assignment
2 VCC
4 Data1 -
6 Data1 +
8 Ground
10 NC
Chapter 2
