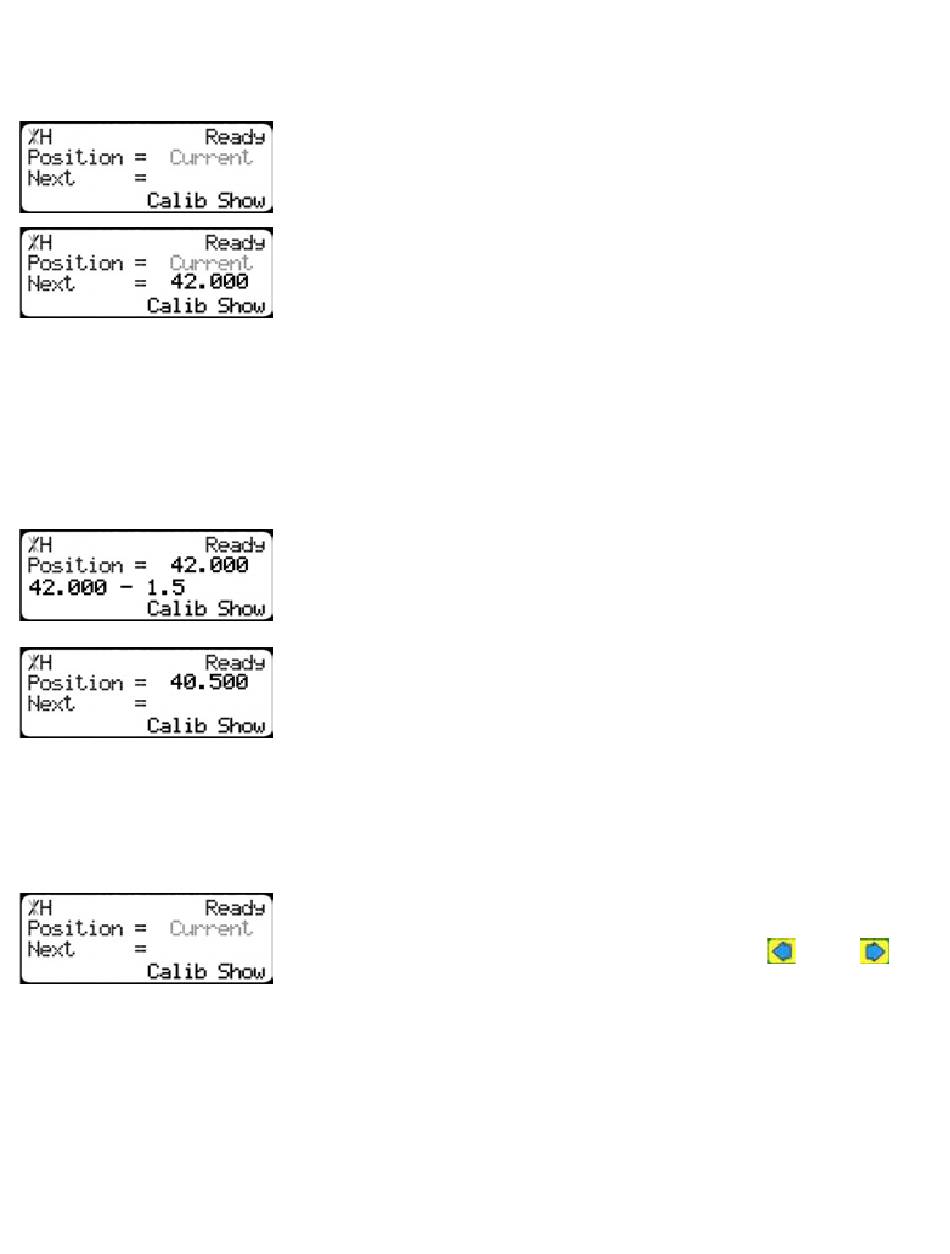

Calculator Mode

TigerRack has a calculator function that can be used to do simple math problems.
Press [1] [2] [+] [3] [0] [=].
The answer will appear in the 'Next' field.
3. Press [Start] and TigerRack will move to the calculated position.
You can also do math functions on the current position.
Example: I want to subtract 1.5 inches from my current position of 42 inches.

Jog

TigerRack can be manually jogged in or out. When activated, TigerRack will move until you let go of
the jog button. It will then glide to a gentle stop.
24
1. Start at the Ready Screen.
2. Just like a normal calculator, you can use the math function keys to
enter math problems.
Example: I want to add 12 inches to 30 inches.
1. Press [-] [1] [.] [5] [=].
The answer will appear in the 'Next' field.
2. Press [Start] and TigerRack will move.
1. Start at the Ready Screen.
2. At the top of the TigerRack controller, you have a
jog, press and hold one of these buttons.
Note: If the jog buttons move TigerRack in the wrong direction, you can use the 'Jog
Reverse' setting in the 'Setup' menu to reverse the movement.
and a . To
