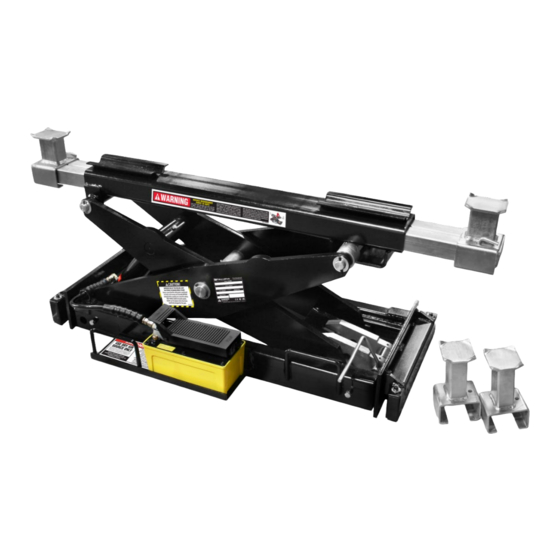

BendPak RBJ15000 Installation And Operation Manual

Rolling bridge jacks
Hide thumbs Also See for RBJ15000:
Table of Contents

Advertisement

Quick Links

Download this manual

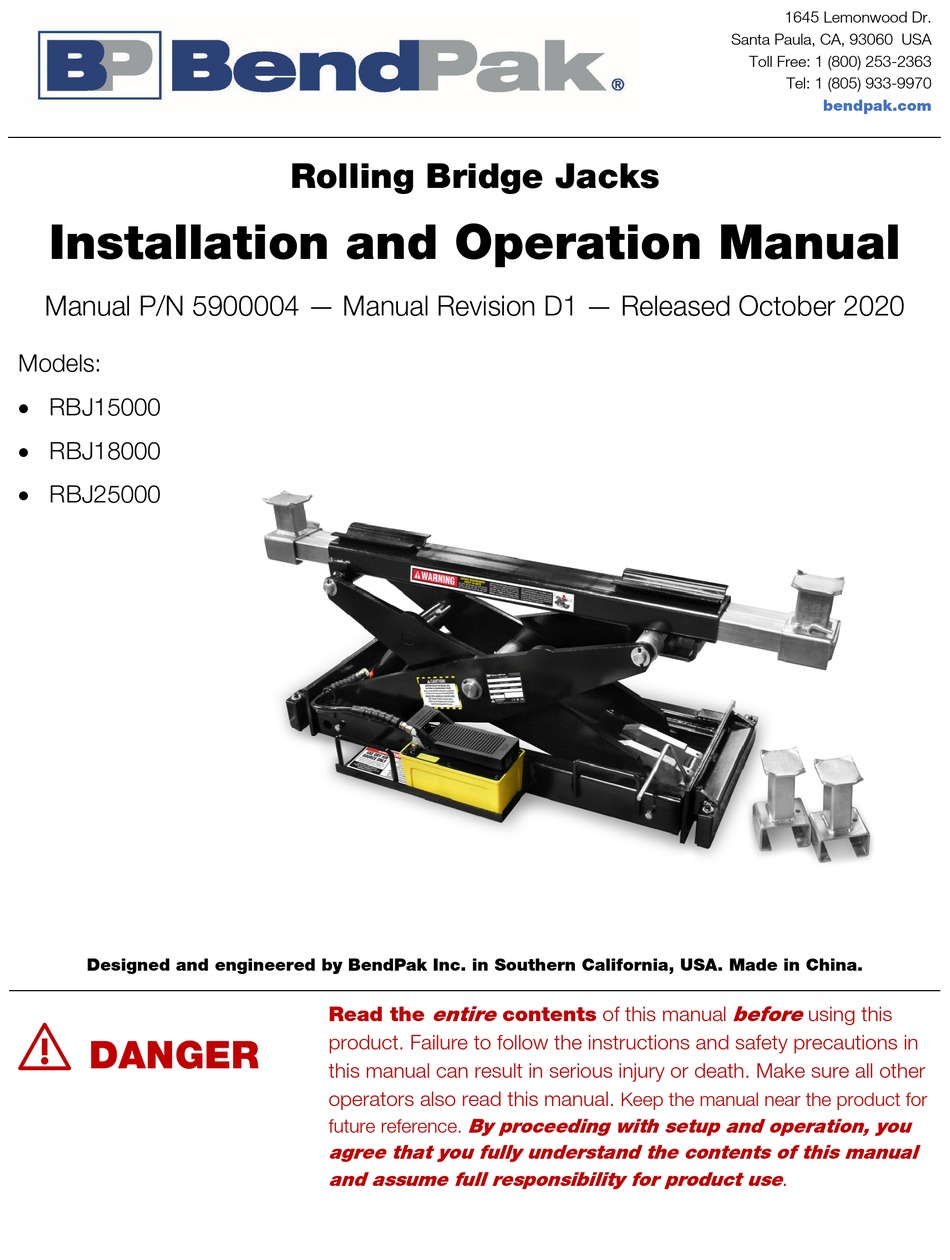

Installation and Operation Manual
Manual P/N 5900004 — Manual Revision D1 — Released October 2020
Models:
• RBJ15000
• RBJ18000
• RBJ25000
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠
DANGER
Rolling Bridge Jacks
entire
Read the
product. Failure to follow the instructions and safety precautions in
this manual can result in serious injury or death. Make sure all other
operators also read this manual.
future reference.
By proceeding with setup and operation, you
agree that you fully understand the contents of this manual
and assume full responsibility for product use .
contents of this manual
Keep the manual near the product for
1645 Lemonwood Dr.
Santa Paula, CA, 93060 USA
Toll Free: 1 (800) 253-2363
Tel: 1 (805) 933-9970
bendpak.com
before
using this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBJ15000 and is the answer not in the manual?

Questions and answers

Related Manuals for BendPak RBJ15000

Summary of Contents for BendPak RBJ15000

  • Page 1 Manual P/N 5900004 — Manual Revision D1 — Released October 2020 Models: • RBJ15000 • RBJ18000 • RBJ25000 Designed and engineered by BendPak Inc. in Southern California, USA. Made in China. ⚠ entire contents of this manual before using this Read the product.
  • Page 2 Copyright. Copyright © 2020 by BendPak Inc. All rights reserved. You may make copies of this document if you agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain any rights to this content, and you will not use the copies for commercial purposes.

  • Page 3: Table Of Contents

    This manual covers the following RBJ models: RBJ15000: Raises up to 15,000 lbs / 6,804 kg. For BendPak HDS-27 and HDS-27X Lifts. • RBJ18000: Raises up to 18,000 lbs / 8,165 kg. For BendPak HDS-35 and HDS-35X Lifts.

  • Page 4: Shipping Information

    Make a visual inspection of the product before using it every time. Check for missing or damaged parts. Do not use the product if you find any of these issues. Instead, take the Jack out of service, then contact an authorized repair facility, your distributor, or BendPak at (800) 253-2363. •...
  • Page 5 BendPak assumes no liability for damages resulting from: • Use of the equipment for purposes other than those described in this manual. • Modifications to the equipment without prior, written permission from BendPak. • Injury or death caused by modifying, disabling, overriding, or removing safety features. •...

  • Page 6: Components

    Channel Rollers. Located on the ends of the Bases, the Channel Rollers sit in the Utility Rail Channel and let you move the Rolling Bridge Jack along the Utility Rail. • Adjustment Bolts. RBJ15000 only. A safety feature, they hold the Extendable Bases in place. Installation is mandatory Installed after the RBJ15000 is moved into place.
  • Page 7 Model RBJ15000 shown. Not necessarily to scale. Not all components shown. Only the RBJ15000 has Extendable Bases and Adjustment Bolts; the RBJ18000 and RBJ25000 do not. RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...

  • Page 8: Faq

    Lifts, raised Vehicles, and Rolling Bridge Jacks. Q: Are the bases of my Rolling Bridge Jack extendable? A: If it is an RBJ15000, then Yes. The bases for the RBJ18000 and the RBJ25000, however, are extendable.

  • Page 9: Specifications

    Specifications are subject to change without notice. About Vehicle Wheelbases Lift A BendPak four-post supports less weight than its rated capacity when the wheelbase of the Vehicle on the Lift is shorter. This is because the wheels of these shorter wheelbase Vehicles are closer to the middle of the Runways, where there is less strength.

  • Page 10: Setup

    Do not set up or use a Rolling Bridge Jack if the Lift is not the model for which the WARNING Rolling Bridge Jack was designed or the Lift was improperly installed. Instead, contact the manufacturer of the Lift or BendPak Customer Service at (800) 253- 2363 for instructions. •...
  • Page 11 • You can only use the Rolling Bridge Jack in certain locations on the Lift. This is because the strength of the Lift is less in the middle, so raising a Vehicle in the middle could permanently damage the Lift’s Runways. In the vast majority of cases, this unusable area in the middle of the Lift will not impact your use of your Rolling Bridge Jacks, as the length of the wheelbases of the Vehicles you are raising will put the Rolling Bridge Jacks in the usable area.
  • Page 12 must • The Lift Runways be parallel. Make sure the Lift Runways were installed parallel to each other. The distance between the Lift Runways must be equal along the entire length of the Lift. must In the following drawing, the distance between the Runways at Points A, B, and C be the same.
  • Page 13 • Orient the Air-Operated Hydraulic Pump correctly. You need to orient each Rolling Bridge Jack such that the Air-Operated Hydraulic Pump is facing the Lift’s Crosstube, the outside of the Lift. This makes it easier to route the integrated air lines and access the pump. When using two Rolling Bridge Jacks on a Lift, orient both pumps towards the outside of the Lift.
  • Page 14 Measure the distance between the two Runways to make sure they are ~47 inches / ~1,199 mm apart. 3. If you are installing an RBJ15000, set the Lift’s Runways to the desired distance apart, from ~45.75 inches / 1,163 mm to ~58.5 inches / 1,489 mm.
  • Page 15 7. If you are installing an RBJ15000, adjust the Extendable Bases so the Channel Rollers are directly above the Channels on the Utility Rails. RBJ15000 The following drawing shows the Channel Roller of an being extended so that it is directly over the Utility Rail Channel.
  • Page 16 Setting Up the Air-Operated Hydraulic Pump Your Rolling Bridge Jack comes with an Air-Operated Hydraulic Pump, which provides air pressure so you can raise and lower the Jack. It is your responsibility to supply air pressure to the Pump The Air-Operated Hydraulic Pump comes from the factory with Hydraulic Fluid. You do not need to add any at this point, unless the Hydraulic Fluid has leaked out.
  • Page 17 Preparing for Operation To prepare the Rolling Bridge Jack for normal operation, you need to: • Check the fluid reservoir on the Air-Operated Hydraulic Pump; it should come full from the factory, but occasionally the fluid can leak. • Perform an operational test to make sure the Jack is working normally. The fluid reservoir of your Rolling Bridge Jack was filled at the factory.
  • Page 18 3. Press and hold the RELEASE end to lower the Jack down onto the closest Safety Lock. 4. Release the RELEASE end of the Pump when the Safety Lock engages on the Safety Lock Pin. This drawing shows, on the Left, the Jack between the two Safety Lock positions; the Safety Lock engaged on the Safety Lock Pin.

  • Page 19: Operation

    Use care when using your Rolling Bridge Jack. If it falls when the Lift is raised, it can damage the Jack, the ground underneath, or cause significant injury to anyone underneath it. BendPak strongly recommends no one, ever, walk underneath your Rolling Bridge Jack when the Lift is raised.
  • Page 20 Raising and Lowering This section describes how to raise and lower your Rolling Bridge Jack. To raise a Vehicle: 1. Drive the Vehicle onto the Lift. ⚠ WARNING Make sure the Jack is fully lowered and the Pads are removed; you do not want them to hit the underside of the Vehicle as it is driven onto the Lift.
  • Page 21 7. Press and hold the PUMP end of the pedal to begin raising the Rolling Bridge Jack. 8. When the Rolling Bridge Jack reaches the desired height, release the PUMP end, then press and hold the RELEASE end to engage the Rolling Bridge Jack on the nearest Safety Locks. 9.
  • Page 22 The safest way to move a Rolling Jack is when the Lift is fully lowered and no Vehicle is on the Rolling Jack or on the Lift. BendPak strongly recommends always moving your Rolling Jack with the Lift fully lowered.

  • Page 23: Maintenance

    Daily: Make sure the Safety Locks are in good operating condition. Do not use your Rolling Bridge Jack if the Safety Locks are damaged or excessively worn. • Daily: Inspect Pads for damage or excessive wear. Replace as required with BendPak parts. • Weekly: Lubricate all Rollers with general purpose oil or WD-40.

  • Page 24: Troubleshooting

    Jack is engaged on its Safety Locks. Make sure the Rolling Bridge Jack is not leaking Hydraulic Fluid. If you continue to have an issue, contact your dealer or BendPak at (800) 253-2363. RBJ Series of Rolling Jacks...

  • Page 25: Accessories

    Accessories Optional AK-14 Integrated Rolling Bridge Air Line Kit Mounts and secures your air line to your Lift's Runways, creating a handy air line solution for your Rolling Bridge Jacks. Visit the website page for the Air Line Kit for more information. RBJ Series of Rolling Jacks P/N 5900004 —...

  • Page 26: Labels

    Labels RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...

  • Page 27: Parts Sheets

    Parts Sheets RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...
  • Page 28 RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...
  • Page 29 RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...
  • Page 30 RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...
  • Page 31 RBJ Series of Rolling Jacks P/N 5900004 — Rev. D1 — October 2020...
  • Page 32 1645 Lemonwood Drive Santa Paula, CA, 93060 USA © 2020 BendPak Inc. All rights reserved. bendpak.com...
