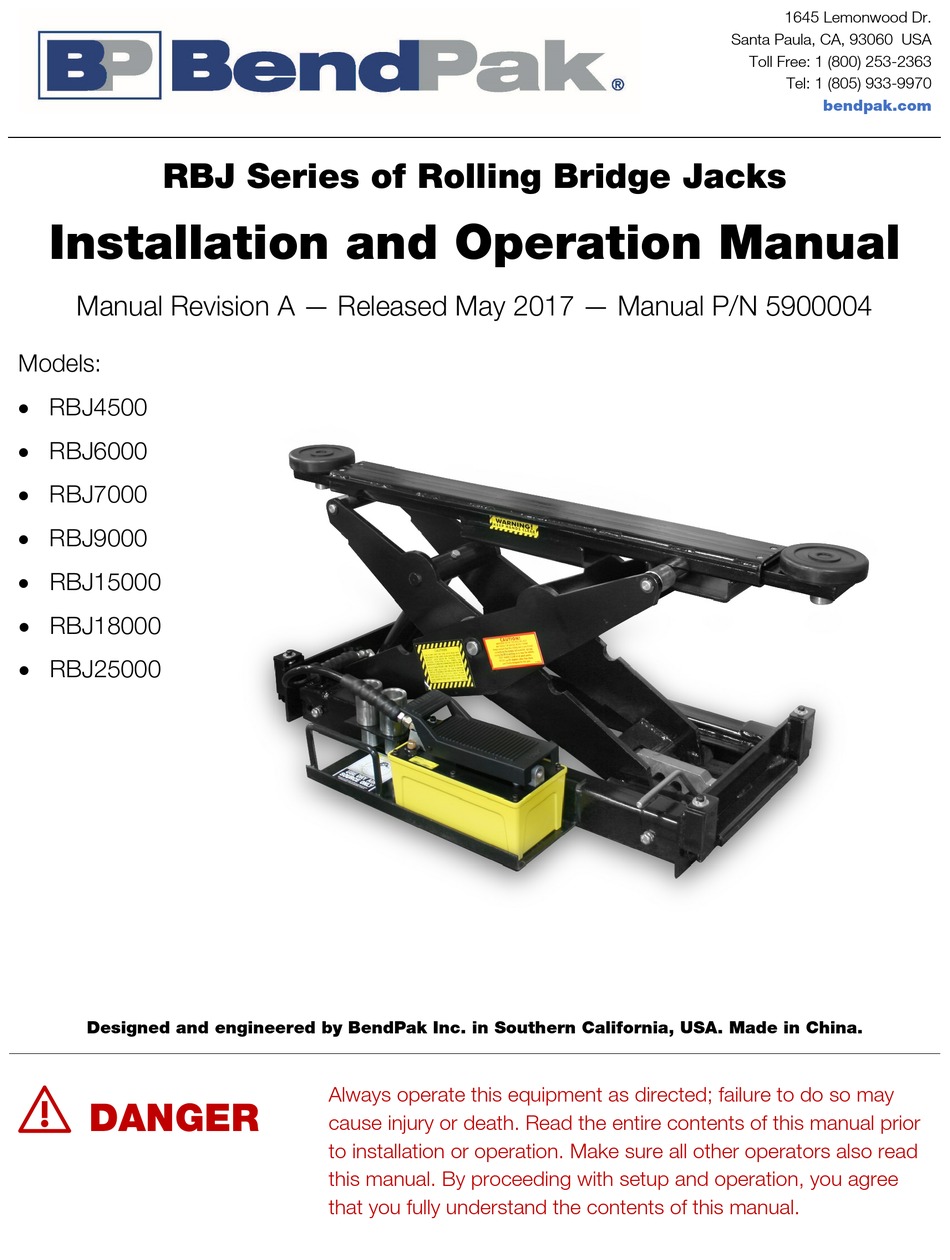

RBJ Series of Rolling Bridge Jacks
Installation and Operation Manual
Manual Revision A — Released May 2017 — Manual P/N 5900004
Models:
• RBJ4500
• RBJ6000
• RBJ7000
• RBJ9000
• RBJ15000
• RBJ18000
• RBJ25000
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠
DANGER
Always operate this equipment as directed; failure to do so may
cause injury or death. Read the entire contents of this manual prior
to installation or operation. Make sure all other operators also read
this manual. By proceeding with setup and operation, you agree
that you fully understand the contents of this manual.
1645 Lemonwood Dr.
Santa Paula, CA, 93060 USA
Toll Free: 1 (800) 253-2363
Tel: 1 (805) 933-9970
bendpak.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BendPak RBJ Series

Summary of Contents for BendPak RBJ Series

  • Page 1 • RBJ9000 • RBJ15000 • RBJ18000 • RBJ25000 Designed and engineered by BendPak Inc. in Southern California, USA. Made in China. ⚠ Always operate this equipment as directed; failure to do so may DANGER cause injury or death. Read the entire contents of this manual prior to installation or operation.
  • Page 2 BendPak is not responsible for typographical errors in this manual. Warranty. The BendPak warranty is more than a commitment to you: it is also a commitment to the value of your new product. For full warranty details and to register your new product, contact your nearest BendPak dealer or visit bendpak.com/support/warranty.
  • Page 3 Maintenance Log Introduction This manual covers the RBJ series of rolling bridge jacks, which are used with four-post lifts to raise two or four wheels off the runway, thus making automotive service such as brake jobs and suspension work easier to accomplish.

  • Page 4: Shipping Information

    Keep this manual on or near your jack so that it can be ready by anyone who operates or services it. Technical support for your unit is available directly from your distributor or you can contact BendPak Customer Service at (800) 253-2363. You can also ask for parts replacement (be sure to have the serial and model numbers of your unit available).
  • Page 5 BendPak assumes no liability for damages resulting from: • Use of the equipment for purposes other than those described in this manual. • Modifications to the equipment without prior, written permission from BendPak. • Damage to the equipment from external influences. •...

  • Page 6: System Components

    The ends of the jack arm have a hole into which the lift pads and extenders fit. RBJ4500 shown. Some models are slightly different. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...

  • Page 7: Specifications

    63.4" / 1,612 mm 63.4" / 1,612 mm Shipping weight 788 lbs / 358 kg 802 lbs / 363 kg Specifications are subject to change without notice. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 8 Do not set up or use a rolling bridge jack if the lift is not the model the rolling bridge jack was designed for or the lift was improperly installed. Instead, contact the manufacturer of the lift or BendPak Customer Service at (800) 253-2363 for instructions.
  • Page 9 You can only use the jack in certain locations. You can only use your jack at certain locations on the lift; basically, the ends but not the middle. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 10 Make sure the lift runways were installed parallel to each other. The distance between the lift runways must be equal along the entire length of the lift. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 11 When using two rolling bridge jacks on a lift, orient both pumps towards the outside of the lift. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 12 Do not 3. Lower the rolling bridge jack to just over the utility rails on the inside of the lift’s runways. lower it onto the lift yet RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 13 Step 7. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 14 5. Lower the rolling bridge jack onto the utility rail, either into the channel (for jacks with a roller assembly) or onto the lip (for jacks with a roller). 6. Make sure the utility rail channel is clear of all debris. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 15 11. If necessary, make adjustments to the arms of the rolling bridge jack or to the runway to ensure proper operation of the rolling bridge jack. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 16 Failure to install these items voids the warranty on pneumatic pressure supply line. components. 4. The filler vent cap is overtightened for shipment; loosen it approximately one turn. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 17 2. When the jack is at maximum rise, release the PUMP end of the pedal and press the RELEASE end to begin lowering the jack. 3. Lower the jack onto one of the safety lock positions. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 18 6. Press the RELEASE end of the pedal to lower the jack. 7. Release the RELEASE end of the pedal when the jack is fully lowered. Your rolling bridge jack is ready for normal operation. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...

  • Page 19: Operation

    8. Raise the vehicle to just past the desired height, then release the PUMP end of the pedal and press the RELEASE end to lower the jack onto a locking position. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 20 Do not attempt to connect or disconnect hose couplers while a vehicle is raised or while the hydraulic system is under pressure. • Use every precaution to guard against dirt getting into the lift or the pump. RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...

  • Page 21: Maintenance

    Daily: Make sure safety locks are in good operating condition. Do not use your jack if the safety locks are damaged or excessively worn. • Daily: Inspect lift pads for damage or excessive wear. Replace as required with BendPak parts. • Weekly: Lubricate all rollers with general purpose oil or WD-40.

  • Page 22: Troubleshooting

    If you continue to have an issue, contact your dealer or BendPak Customer Service at (800) 253-2363. Warranty The BendPak warranty is more than a commitment to you; it is also a commitment to the value of your new product.
  • Page 23 Mounts and secures your airline to the bottom of your lift's runways, creating a tidy airline solution for your rolling bridge jacks. Visit for more information. the website page for the airline kit RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 24 Visit for more information. the website page for the adapter kit RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 25 Labels Models RBJ4500, RBJ6000, RBJ7000, and RBJ9000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 26 Models RBJ15000, RBJ18000, and RBJ25000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...

  • Page 27: Parts Sheets

    Parts Sheets Model RBJ4500 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 28 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 29 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 30 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 31 Model RBJ6000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 32 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 33 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 34 Model RBJ7000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 35 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 36 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 37 Model RBJ9000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 38 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 39 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 40 Model RBJ15000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 41 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 42 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 43 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 44 Model RBJ18000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 45 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 46 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 47 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 48 Model RBJ25000 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 49 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 50 RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...

  • Page 51: Maintenance Log

    Maintenance Log RBJ Series of Rolling Bridge Jacks P/N 5900004 — May 2017 — Rev. A...
  • Page 52 1645 Lemonwood Drive Santa Paula, CA, 93060 USA © 2017 BendPak Inc. All rights reserved. bendpak.com...
