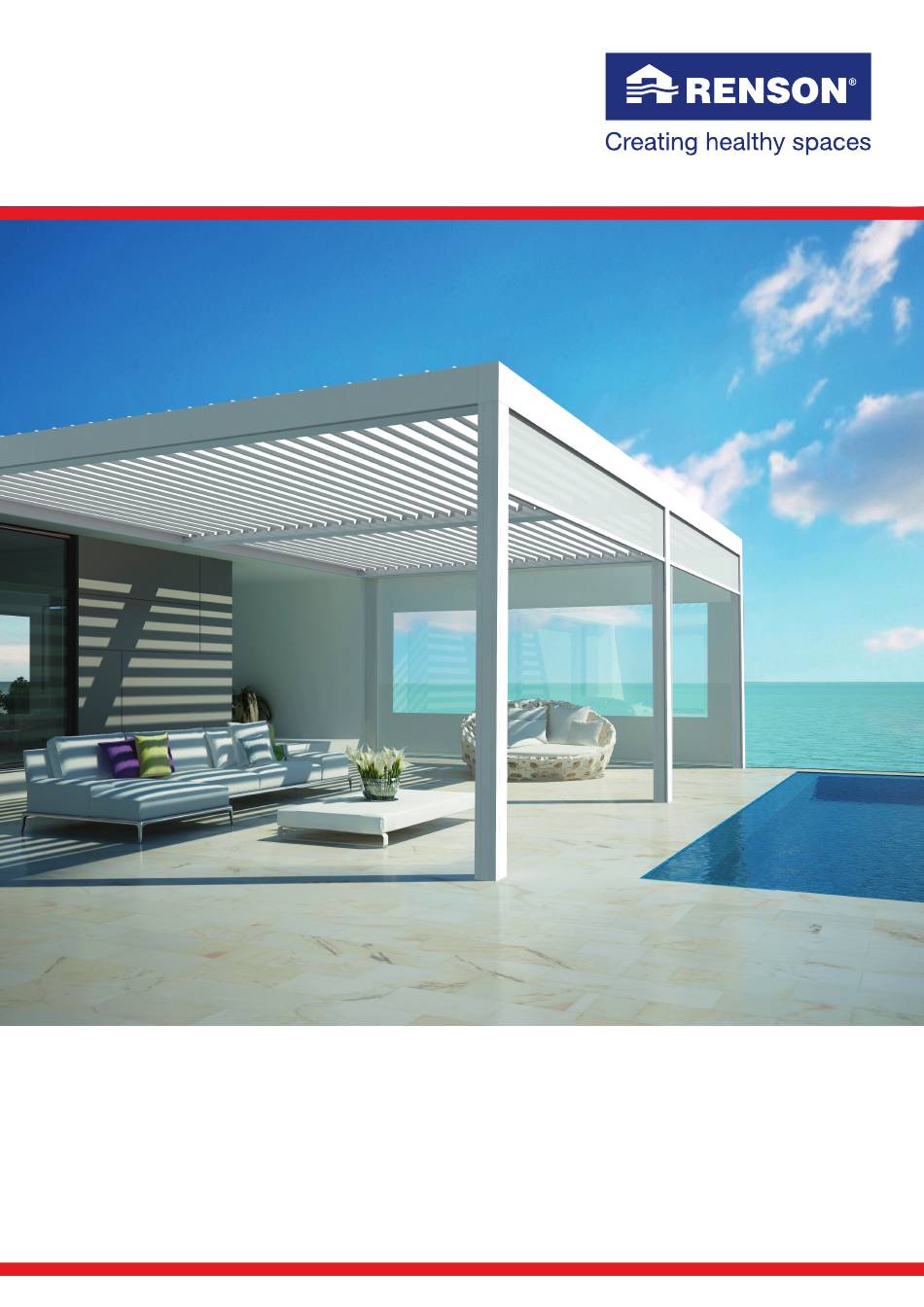

- Page 1 Camargue and Algarve ® ® Guidelines for after-sales service...
-
Page 2: Table Of Contents
3. Camargue ® III. Problems and solutions regarding water infiltration 1. Algarve - old model 2. Algarve 2 3. Camargue – old model 4. Camargue 2 IV. Motor failures 1. Algarve - old model 2. Algarve 2 3. Camargue – old model 4. -
Page 3: Introduction
II. Water infiltration When closed, the blades of Algarve and Camargue protect the terrace underneath from the rain. However, because Algarve and Camargue are not thermally closed systems, a 100% waterproof construction cannot be guaranteed. That is why the user guarantee describes the impermeability as follows: •... -
Page 4: General Provisions
During a shower the stand-alone wall panels of Algarve and Camargue are continuously exposed to water. So it is only normal that the water should drain off the outside of the frame and columns. Even after a shower some excess water may still flow along the outside profiles and columns. -
Page 5: Algarve
Camargue en Algarve ® ® Guidelines for after-sales service 2. Algarve ® DETAIL A: Water seeps in between the top frame and the column in the outside corners. = Normal situation The connection between the top frame and the column serves as a would-be gutter along which the water finds the easiest path. - Page 6 Camargue en Algarve ® ® Guidelines for after-sales service DETAIL C: Water seeps in along the profiles of the connecting beam It is more than a few drops and continues for a while after the shower = Water infiltration Cause: : Insufficient sealing between the covering cap and the connecting beams...
-
Page 7: Camargue
Camargue en Algarve ® ® Guidelines for after-sales service 3. Camargue ® Underside top frame Gutter on the inside Stand-alonte Exterior corner Underside on the inside blade Relocated column on the inside Connecting beam on the outside DETAIL A: Water seeps in between the top frame and the column on the outside corners... - Page 8 Camargue en Algarve ® ® Guidelines for after-sales service DETAIL C: Water seeps in between the top frame and the column on the inside This still continues an hour after the shower = Water infiltration Cause: bad seal between the gutter, the cover profile, and the top frame...
- Page 9 Camargue en Algarve ® ® Guidelines for after-sales service DETAIL G: Water seeps in via the top beam of a columnless inside corner between the profiles This still continues an hour after the shower = Water infiltration Cause: Drain insufficiently sealed...
-
Page 10: Problems And Solutions Regarding Water Infiltration
Camargue en Algarve ® ® Guidelines for after-sales service III. Problems and solutions regarding water infiltration 1. Algarve - old model WATER INFILTRATION Request dimensions + number of drains Water infiltration in General water the control boxes infiltration New control box + Has this happened covering fixed blade... - Page 11 Camargue en Algarve ® ® Guidelines for after-sales service 2. Algarve 2 WATER INFILTRATION Request dimensions + number of drains Has this happened before? If yes, during light or heavy shower? During heavy shower: During light or normal refer the customer...
-
Page 12: Camargue - Old Model
Camargue en Algarve ® ® Guidelines for after-sales service 3. Camargue – old model WATER INFILTRATION Request dimensions + number of drains Has this happened before? If yes, during light or heavy shower? During heavy shower: During light or normal... - Page 13 Camargue en Algarve ® ® Guidelines for after-sales service 4. Camargue 2 WATER INFILTRATION Request dimensions + number of drains Has this happened before? If yes, during light or heavy shower? During heavy shower: During light or normal refer the customer...
-
Page 14: Motor Failures
Camargue en Algarve ® ® Guidelines for after-sales service IV. Motor failures 1. Algarve - old model BLADES DON'T OPEN/ CLOSE Is the voltage 230V? Measured with a voltmeter? Is output transformer 24V? Restore proper power supply Replace transformer Connect the transformer directly to the motor. - Page 15 Camargue en Algarve ® ® Guidelines for after-sales service 2. Algarve 2 BLADES DON'T OPEN/ CLOSE Which motor/control do you have? Bohez control Noval control + Linak motor T-motion Is the voltage 230V? In cold or warm weather? Measured with a voltmeter?
-
Page 16: Camargue - Old Model
Camargue en Algarve ® ® Guidelines for after-sales service 3. Camargue – old model BLADES DON'T OPEN/ CLOSE Is the voltage 230V? Measured with a voltmeter? Is output transformer 24V? Restore proper power supply Replace transformer Connect the transformer directly to the motor. - Page 17 Camargue en Algarve ® ® Guidelines for after-sales service 4. Camargue 2 BLADES DON'T OPEN/ CLOSE In cold or warm weather? Warm Cold Have you completed all Does the motor not open control programming? or judders open? Internal check via...
-
Page 18: Visual Aspects
Camargue en Algarve ® ® Guidelines for after-sales service V. Visual aspects 1. Coating quality To determine any shortcomings in the quality of the coating the surface is tilted upwards at an angle of 60° and inspected from a distance of You should not be able to see the following defects: •... -
Page 19: Fitting The Profiles
Camargue en Algarve ® ® Guidelines for after-sales service 3. Fitting the profiles To ensure a perfect connection of the profiles, they are produced with narrow tolerances. During the installation it is of vital importance to ensure they are fitted correctly and that there are no gaps or irregularities between the profiles. It is important, not only from an aesthetic point of view but also to guarantee optimal waterproofing, that profiles are fitted without gaps or irregularities. -
Page 20: Fixscreen And Crystal Windows
With Crystal window in particular, creasing along the sides frequently occurs due to the use of different materials (Renson screen and PVC window). This is due to the combina- tion of materials and is not a cause for replacement. -
Page 21: Maintenance Instructions
Camargue en Algarve ® ® Guidelines for after-sales service VI. Maintenance instructions 1. Aluminium profiles Aluminium is often described as maintenance-free. However, this is not true! Without regular maintenance the coated aluminium will lose its colour and gloss due to a number of external factors (UV-radiation, (acid) rain, salty air, corrosion, humidity, rust and other atmospheric pollutants). -
Page 22: Fixscreen
Camargue en Algarve ® ® Guidelines for after-sales service 2. Fixscreen The system requires little maintenance, but in order to enjoy your Fixscreen for many years to come please make a note of the following: • The fabric may show stains as a result of the manipulation during production and installation. -
Page 23: Accessories
External factors, however, can have a negative impact on the signal. The control box of the motor for the Camargue NEW is equipped with a new antenna, which is pre-assembled in a PVC-protection tube, and is already integrated in the Pivot frame profile. - Page 24 95.000 m². Dealer RENSON reserves the right to make technical changes to the products shown. ® The most recent versions of our brochures can be downloaded from www.renson.eu V E NT I L AT IO N RENSON ® Headquarters S UNP ROT E C T I O N Maalbeekstraat 10 •...
